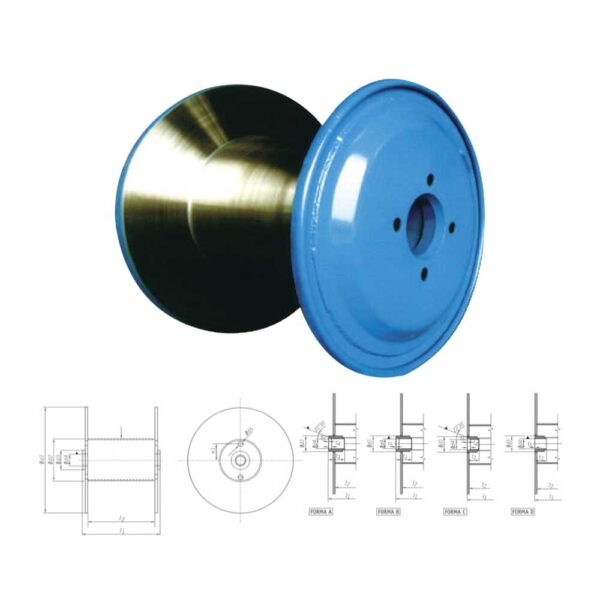

Double Layer High-Speed Cable Reels (Reinforced) – PRV500–PRV850

Description

The Parovi PRV500–PRV850 Double Layer High-Speed Cable Reels are manufactured in strict accordance with GB4004-83, JB/T8997.4-1999, and DIN46397 standards.
These reels are fabricated using reinforced steel plates that are punched, welded, and precision-machined for superior strength and dimensional accuracy. Each reel undergoes dynamic and static balance testing, guaranteeing stability even during high-speed operations.

Technical Specifications

d1	d2	d3	d4	l1	l2	d5 (Hole/Pin)	e	t1	t4	t5	v1 dm/t
500	380	150	12/17	375	315	28	100	63	20	2	43.7
500	380	150	12/17	425	355						42.3
500	380	150	12/17	475	405						39.5
630	450	190	12/17	475	405						67.3
710	530	230	12/17	530	450		150	125	40	2.5	121.6
800	630	250	12/17	600	520		180	125	40		172

Key Features:

Reinforced Steel Construction: High rigidity and mechanical strength for durability under continuous operation.

Precision Engineering: Fine machining ensures smooth balance and minimal vibration at high speeds.

Dynamic & Static Balance Tested: Provides accurate and reliable performance in demanding environments.

High-Speed Compatibility: Designed for use with high-speed copper and aluminum wire drawing and cable twisting machines.

Corrosion Resistant Finish: Surface treated for long-lasting protection and reduced maintenance.

Applications:

High-speed wire drawing lines

Wire bunching and stranding machines

Cable twisting and coiling equipment

Suitable for copper and aluminum wire production
