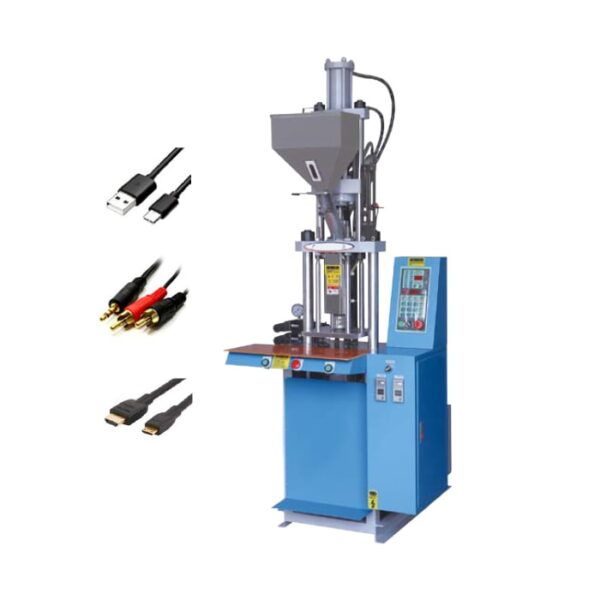

Single Station Small Plug Injection Molding Machine 15 Ton
Single Station Small Plug Injection Molding Machine 15 Ton

Single Station Small Plug Injection Molding Machine 15 Ton

Vertical Injection Molding Machine with Double Station Two Molds 15 Ton Vertical Injection Molding Machine with Double Station Two Molds 15 Ton
Vertical Screw Type Molding Machine 25 Ton Vertical Screw Type Molding Machine 25 Ton

Category:

Description

Technical Parameters
MODEL PRV-15
INJECTION UNIT
Screw Diameter 22 mm
Injection Pressure 1625 kgf/cm2
Injection Capacity 34 cm3
Injection Weight (P.S) 40 gms/1.4
Injection Rate 28 cc/s
Screw Speed 0-150 r.p.m
Screw Stroke 90mm
Nozzle Stroke 120 mm
Nozzle Contact Force 2.4 tf
CLAMPING UNIT
Clamping System Hydraulic
Clamping Force 15 Ton
Clamping Stroke 200 mm
Max. Mould Space 240 mm
Min. Mould Height 40 mm
Space Between Columns(mm) 280
ELECTRICAL EQUIPMENT AND GENERAL
Drive Motor (kw) 2.2 (3HP)
Heater(kw) 2.0
Dimension Of Machine(m) 1.2(L) x 0.9(W) x 2.3 (H)
Weight Of Machine(t) 0.6
Oil Tank Capacity(l) 90
Cooling Water (l/hr) 400-600
