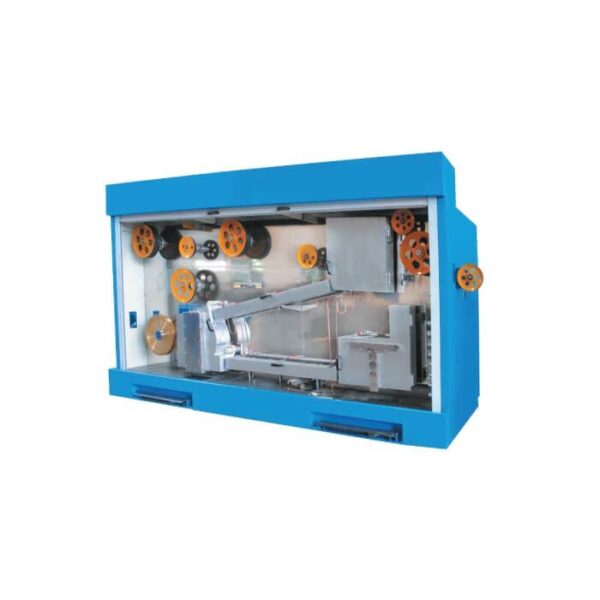

Horizontal Wire Annealer – Models TH5000 DC & TH5000 AC

Designed for today’s high-speed wire production lines, the TH5000 Series Horizontal Wire Annealers offer exceptional performance, energy efficiency, and superior finished wire quality. Whether using DC or AC constant current, these machines ensure a stable, bright, and smooth wire output.

Their innovative horizontal structure makes installation, maintenance, and operation extremely convenient. Equipped with a powerful cooling system, the TH5000 models easily handle large currents and high-speed production, achieving excellent elongation stability and surface finish quality for a wide range of wire diameters.

Key Features:

  • Constant type annealing system with options for DC or AC current.

  • Convenient horizontal structure for easy operation and maintenance.

  • High-efficiency cooling system for large current and fast processing speeds.

  • Bright, stable finished wire surface with excellent elongation consistency.

  • Compact and durable design with minimal downtime.

  • Supports wire sizes from Ø1.2mm to Ø3.5mm.

Technical Parameters
MODEL TH5000 DC TH5000 AC
Wire Size(mm) Ø1.2-Ø3.5 Ø1.2-Ø3.5
Speed(m/min) Max1500 Max1500
Capston Dia Ø450mm Ø450mm
Max Voltage 60DC 55AC
Max Current 5000 4300
Max Power 425kw 283kw
Steam Generator Power 18kw 18kw
Overall Dimensions(LxWxH) 4.25X1.25×2.5M 4.25X1.25×2.5M
Net Weight 4500kg 4500kg
Production Speed
Wire Size Speed Production
Ø2.6mm 800 M/min 2268kg/h
Ø3.0mm 600 M/min 2264kg/h
