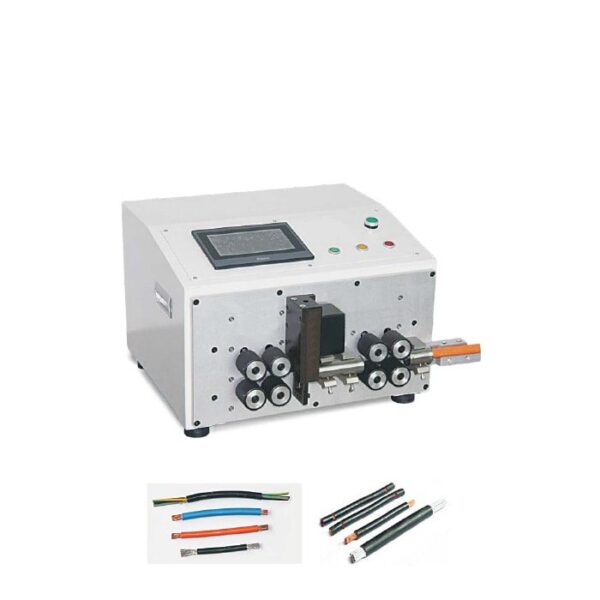

Heavy Cable Cutting and Stripping Machine PRV-CS-70
Heavy Cable Cutting and Stripping Machine PRV-CS-70

Heavy Cable Cutting and Stripping Machine PRV-CS-70

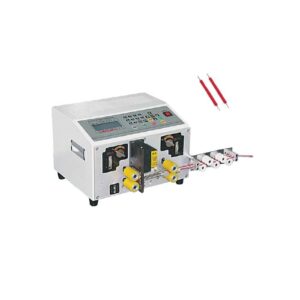

Automatic Cable Cutting and Stripping Machine-Parovi Machine Automatic Cable Cutting, Sheath Peeling & Core Stripping Machine-PRV-CS-8600

Features

This Machine adopts microprocessor and servo drive mechanisms. Has an LCD display to set cutting Length, peeling Length, quantity, and batch. This machine is specially designed for Thick wire sizes for Battery cables, Industrial cables, and Control cables.

Category:

Description

Technical Parameters

MODEL PRV-CS-70 Heavy Cable Cutting And Stripping Machine
Function Cutting and Double Side Stripping
Wire Size 6 ~ 70 sq mm
Capacity 1000-2000 / ( depending on wire)
Cutting Length 1 ~ 99999 mm
Power supply AC 220 V 50/60 Hz Single phase
Peeling Length 1 ~ 250 mm 1~ 90 (other side)
Motor Precision 0.1 mm
Type of Drive 8 wheel drive
Body Size 1030 x 350 x 530 mm
Body Weight 90 kgs
Tool Material Tungsten Steel/ Cable Cutting and Stripping Machine (PRV-CS-330-A) Steel
