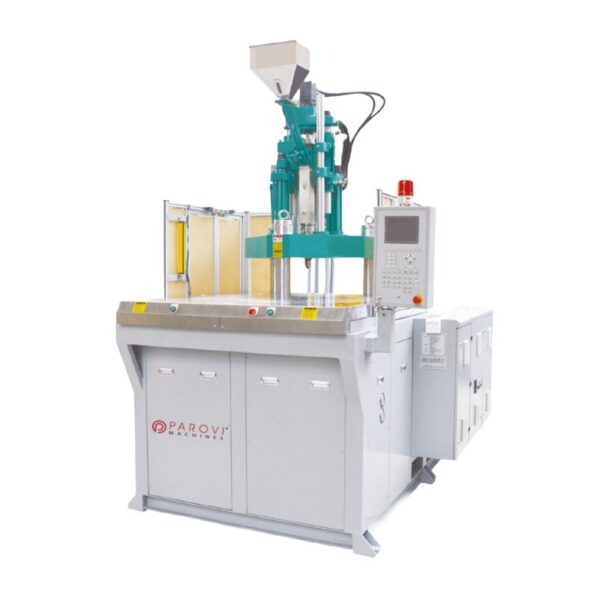

Single Sliding Vertical Injection Moulding – PRV-T1S
Double Slider Vertical Injection Moulding Machines
Double Slider Vertical Injection Moulding Machine – PRV-T2S Series (35 Ton to 200 Ton) - Image 2
Single Sliding Vertical Injection Moulding – PRV-T1S

Double Slider Vertical Injection Moulding Machine – PRV-T2S Series (35 Ton to 200 Ton)

Double Slider Vertical Injection Moulding Machines Single Sliding Vertical Injection Moulding – PRV-T1S

Discover the high-efficiency Double Slider Vertical Injection Moulding Machine from Parovi Machines, available in capacities ranging from 35 Ton to 200 Ton. Precision engineered for faster cycles, superior clamping, and energy savings — ideal for electronics, automotive, wire, and cable industries.

Category:

Description

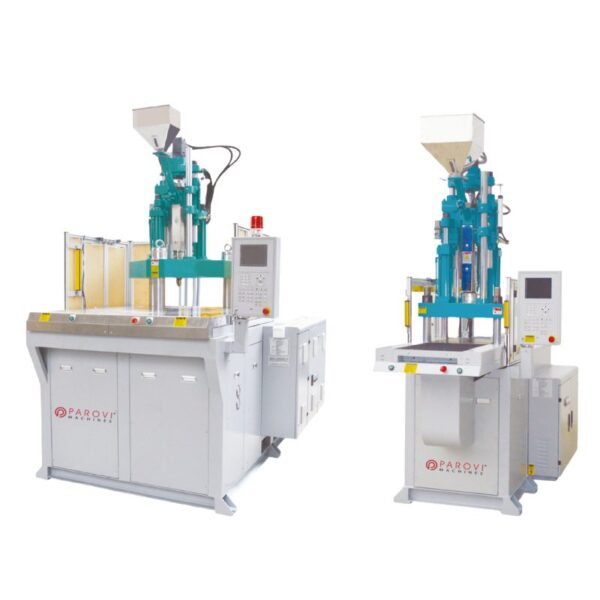

Double Slider Vertical Injection Moulding Machines – PRV-T2S Series

Parovi Machines presents the Double Slider Vertical Injection Moulding Machines PRV-T2S Series featuring a double-slider design for maximum productivity and seamless operation.
Double Slider Vertical Injection Moulding Machines are Available in multiple tonnage options — 35T, 55T, 85T, 120T, 160T, and 200T —

Double Slider Vertical Injection Moulding Machines series is ideal for manufacturers seeking efficiency, flexibility, and precision across diverse applications.

Key Features:

  • Double sliding platform for simultaneous loading/unloading
  • High-speed injection with superior stability
  • Precision clamping system from 35 Tons up to 200 Tons
  • Compact design suitable for space-saving production setups
  • Adjustable screw rotation and injection speed
  •  Energy-efficient hydraulic and electric systems
  • Perfect for insert moulding, cable connectors, automotive parts, electronics, and more

Applications of Double Slider Vertical Injection Moulding Machine:

  • Automotive Components

  • Wire & Cable Connectors

  • Electronic Parts and Housings

  • Industrial and Consumer Products

Technical Specifications

PRV-35T-1S

Technical Parameters

 Injection Unit  Unit PRV-35T-1S
 Screw Diameter  mm  25  28  32
 Theoretical Injection Volume  cm3  59  74  96
Injection Weight  gr  56  70  91
 oz  2  2.5  3.2
 Max Injection Pressure  Mpa(kgf/cm3)  2153  1715  1312
Injection Rate   cc/s  60  75  82
  Injection Speed  mm/s  120
 Screw Speed Rotation  mm  0-250
 Nozzle Out from Platens  mm  ≥45
Clamping Force tf  343(35)
Clamping Stroke mm  215
Min Mould Thickness  mm  140(200)
Max. Opening  mm  355(415)
  Distance Between Tie Bars  mm  420X250
 Max Mold Size   mm  400X350
Platen Size   mm 400X450
Ejector Distance  mm  40
  Ejector Force  17.2(1.75)
 System Pressure  Mpa(kgf/cm3) 140
 Oil Tank Capacity   l 120
 Electric Power   kw  5.5(7.5)
 Heater Power kw  3.6
 Dimention of Machine(LXWXH)  m  1.8X1.2X2.5
 Weight of Machine   t  1.9

PRV-55T-1S

Technical Parameters

 Injection Unit  Unit PRV-85T-1S
 Screw Diameter  mm 28  32 36
 Theoretical Injection Volume  cm3 86  112  142
Injection Weight  gr 81  106  134
 oz  2.9 3.7  4.7
 Max Injection Pressure  Mpa(kgf/cm3)  2170  1660  1312
Injection Rate   cc/s 78 100  128
  Injection Speed  mm/s  140
 Screw Speed Rotation  mm  0-230
 Nozzle Out from Platens  mm  ≥45
Clamping Force tf 539(55)
Clamping Stroke mm  215
Min Mould Thickness  mm  180(240)
Max. Opening  mm 395(455)
  Distance Between Tie Bars  mm 470X290
 Max Mold Size   mm 450X400
Platen Size   mm 630X450
Ejector Distance  mm 40
  Ejector Force  17.2(1.75)
 System Pressure  Mpa(kgf/cm3) 140
 Oil Tank Capacity   l 150
 Electric Power   kw 7.5(11)
 Heater Power kw 5.5
 Dimention of Machine(LXWXH)  m 2X1.3X2.7
 Weight of Machine   t 2.7

PRV-85T-1S

Technical Parameters

 Injection Unit  Unit PRV-85T-1S
 Screw Diameter  mm 32 36 40
 Theoretical Injection Volume  cm3 128 163 200
Injection Weight  gr 121 154 190
 oz 4.3 5.5 6.7
 Max Injection Pressure  Mpa(kgf/cm3) 2050 1620 1312
Injection Rate   cc/s 130 165 202
  Injection Speed  mm/s 160
 Screw Speed Rotation  mm 0-300
 Nozzle Out from Platens  mm ≥45
Clamping Force tf 833(85)
Clamping Stroke mm 250
Min Mould Thickness  mm 240(320)
Max. Opening  mm 490(570)
  Distance Between Tie Bars  mm 520X320
 Max Mold Size   mm 500X450
Platen Size   mm 700X500
Ejector Distance  mm 40
  Ejector Force  17.2(1.75)
 System Pressure  Mpa(kgf/cm3) 140
 Oil Tank Capacity   l 200
 Electric Power   kw 11(15)
 Heater Power kw 6.4
 Dimention of Machine(LXWXH)  m 2.0X1.5X3
 Weight of Machine   t 4.6

PRV-120T-1TS

Technical Parameters

 Injection Unit  Unit PRV-120T-1S
 Screw Diameter  mm  36  40  45
 Theoretical Injection Volume  cm3  183 226  286
Injection Weight  gr  173  213  270
 oz 6.1  7.5  9.5
 Max Injection Pressure  Mpa(kgf/cm3) 2202 1783 1409
Injection Rate   cc/s 156 193 245
  Injection Speed  mm/s 180
 Screw Speed Rotation  mm 0-300
 Nozzle Out from Platens  mm ≥45
Clamping Force tf 1176(120)
Clamping Stroke mm 300
Min Mould Thickness  mm 280(380)
Max. Opening  mm 580(680)
  Distance Between Tie Bars  mm 580X380
 Max Mold Size   mm 550X500
Platen Size   mm 800X600
Ejector Distance  mm 60
  Ejector Force 45(4.6)
 System Pressure  Mpa(kgf/cm3) 140
 Oil Tank Capacity   l 280
 Electric Power   kw 15(20)
 Heater Power kw 10.7
 Dimention of Machine(LXWXH)  m 2.4X1.7X3.3
 Weight of Machine   t 6

PRV-160T-1TS

Technical Parameters

 Injection Unit  Unit PRV-160T-1S
 Screw Diameter  mm 40  45  50
 Theoretical Injection Volume  cm3 251 318  392
Injection Weight  gr 238 300  371
 oz 8.4  10.6  13
 Max Injection Pressure  Mpa(kgf/cm3) 2104 1663 1346
Injection Rate   cc/s 147 186 230
  Injection Speed  mm/s 200
 Screw Speed Rotation  mm 0-300
 Nozzle Out from Platens  mm ≥45
Clamping Force tf 1568(160)
Clamping Stroke mm 300
Min Mould Thickness  mm 280(380)
Max. Opening  mm 580(680)
  Distance Between Tie Bars  mm 680(420)
 Max Mold Size   mm 650X600
Platen Size   mm 960X700
Ejector Distance  mm 60
  Ejector Force 45(4.6)
 System Pressure  Mpa(kgf/cm3) 140
 Oil Tank Capacity   l 350
 Electric Power   kw 18.5(25)
 Heater Power kw 13.8
 Dimention of Machine(LXWXH)  m 2.4X1.7X3.3
 Weight of Machine   t 8.3

PRV-200T-1S

Technical Parameters

 Injection Unit  Unit PRV-200T-1S
 Screw Diameter  mm  50  55  60
 Theoretical Injection Volume  cm3  471  570 678
Injection Weight  gr 445  538  640
 oz 16 19  22
 Max Injection Pressure  Mpa(kgf/cm3)  2150  1777  1493
Injection Rate   cc/s  227  275 327
  Injection Speed  mm/s 220
 Screw Speed Rotation  mm 0-300
 Nozzle Out from Platens  mm  ≥45
Clamping Force tf 1960(200)
Clamping Stroke mm  350
Min Mould Thickness  mm  350(450)
Max. Opening  mm  700(800)
  Distance Between Tie Bars  mm 720X520
 Max Mold Size   mm 700X700
Platen Size   mm 1060X860
Ejector Distance  mm  60
  Ejector Force  45(4.6)
 System Pressure  Mpa(kgf/cm3) 140
 Oil Tank Capacity   l 500
 Electric Power   kw 22.5(30)
 Heater Power kw 16
 Dimention of Machine(LXWXH)  m  2.9X2.1X4.1
 Weight of Machine   t 12

PRV-35TC

Technical Parameters

INJECTION UNIT UNIT PRV-35TC
Screw Diameter mm 25 28 32
Theoretical injection

volume

 cm3 59 74 96
Injection Weight gr 56 70 91
oz 2 2.5 3.2
Max Injection

Pressure

 Mpa

(kgf/cm3)

 2153 1715 1312
Injection Rate cc/s 60 75 82
Injection Speed mm/s 120 120 120
Screw Speed

Rotation

 mm 0-250 0-250 0-250
Nozzle Out from

Platens

 mm ≥45 ≥45 ≥45
Clamping Force tf 343(35) 343(35) 343(35)
Clamping Stroke mm 215 215 215
Min Mould

Thickness

 mm 140(200) 140(200) 140(200)
Max. Opening mm 355(415) 355(415) 355(415)
Distance Between

Tie Bars

 mm 420X250 420X250 420X250
Max Mold Size mm 400X350 400X350 400X350
Platen Size mm 570X400 570X400 570X400
Ejector Distance mm 40 40 40
Ejector Force 17.2(1.75) 17.2(1.75) 17.2(1.75)
System Pressure Mpa

(kgf/cm3)

 140 140 140
Oil Tank Capacity l 120 120 120
Electric Power kw 5.5(7.5) 5.5(7.5) 5.5(7.5)
Heater Power kw 3.6 3.6 3.6
Dimension

of Machine

(LXMWXH)

 m 1.6X1.2X2.4 1.6X1.2X2.4 1.6X1.2X2.4
Weight of

Machine

 t 1.8 1.8 1.8

PRV-55TC

Technical Parameters

INJECTION UNIT UNIT PRV-55TC
Screw Diameter mm 28 32 36
Theoretical injection volume cm3 86 112 142
Injection Weight gr 81 106 134
oz 2.9 3.7 4.7
Max Injection Pressure Mpa

(kgf/cm3)

 2170 1660 1312
Injection Rate cc/s 78 100 128
Injection Speed mm/s 140 140 140
Screw Speed Rotation mm 0-230 0-230 0-230
Nozzle Out from Platens mm ≥45 ≥45 ≥45
Clamping Force tf 539(55) 539(55) 539(55)
Clamping Stroke mm 215 215 215
Min Mould Thickness mm 180(240) 180(240) 180(240)
Max. Opening mm 395(455) 395(455) 395(455)
Distance Between Tie Bars mm 470X290 470X290 470X290
Max Mold Size mm 450X400 450X400 450X400
Platen Size mm 630X450 630X450 630X450
Ejector Distance mm 40 40 40
Ejector Force 17.2(1.75) 17.2(1.75) 17.2(1.75)
System Pressure Mpa

(kgf/cm3)

 140 140 140
Oil Tank Capacity l 150 150 150
Electric Power kw 7.5(11) 7.5(11) 7.5(11)
Heater Power kw 5.5 5.5 5.5
Dimension of Machine

(LXMWXH)

 m 1.7X1.3X2.6 1.7X1.3X2.6 1.7X1.3X2.6
Weight of Machine t 2.5 2.5 2.5

PRV-85TC

Technical Parameters

INJECTION UNIT UNIT PRV-85TC
Screw Diameter mm 32 36 40
Theoretical injection volume cm3 128 163 200
Injection Weight gr 121 154 190
oz 4.3 5.5 6.7
Max Injection Pressure Mpa

(kgf/cm3)

 2050 1620 1312
Injection Rate cc/s 130 165 202
Injection Speed mm/s 160 160 160
Screw Speed Rotation mm 0-300 0-300 0-300
Nozzle Out from Platens mm ≥45 ≥45 ≥45
Clamping Force tf 833(85) 833(85) 833(85)
Clamping Stroke mm 250 250 250
Min Mould Thickness mm 240(320) 240(320) 240(320)
Max. Opening mm 490(570) 490(570) 490(570)
Distance Between Tie Bars mm 520X320 520X320 520X320
Max Mold Size mm 500X450 500X450 500X450
Platen Size mm 700X500 700X500 700X500
Ejector Distance mm 40 40 40
Ejector Force 17.2(1.75) 17.2(1.75) 17.2(1.75)
System Pressure Mpa

(kgf/cm3)

 140 140 140
Oil Tank Capacity l 200 200 200
Electric Power kw 11(15) 11(15) 11(15)
Heater Power kw 6.4 6.4 6.4
Dimension of Machine

(LXMWXH)

 m 2.0X1.5X2.9 2.0X1.5X2.9 2.0X1.5X2.9
Weight of Machine t 4.3 4.3 4.3

PRV-120TC

Technical Parameters

INJECTION UNIT UNIT PRV-120TC
Screw Diameter mm 36 40 45
Theoretical injection volume cm3 183 226 286
Injection Weight gr 173 213 270
oz 6.1 7.5 9.5
Max Injection Pressure Mpa

(kgf/cm3)

 2202 1783 1409
Injection Rate cc/s 156 193 245
Injection Speed mm/s 180 180 180
Screw Speed Rotation mm 0-300 0-300 0-300
Nozzle Out from Platens mm ≥45 ≥45 ≥45
Clamping Force tf 1176(120) 1176(120) 1176(120)
Clamping Stroke mm 300 300 300
Min Mould Thickness mm 280(380) 280(380) 280(380)
Max. Opening mm 580(680) 580(680) 580(680)
Distance Between Tie Bars mm 580X380 580X380 580X380
Max Mold Size mm 550X500 550X500 550X500
Platen Size mm 800X600 800X600 800X600
Ejector Distance mm 60 60 60
Ejector Force 45(4.6) 45(4.6) 45(4.6)
System Pressure Mpa

(kgf/cm3)

 140 140 140
Oil Tank Capacity l 280 280 280
Electric Power kw 15(20) 15(20) 15(20)
Heater Power kw 10.7 10.7 10.7
Dimension of Machine

(LXMWXH)

 m 2.2X1.7X3.2 2.2X1.7X3.2 2.2X1.7X3.2
Weight of Machine t 5.6 5.6 5.6

PRV-160TC

Technical Parameters

INJECTION UNIT UNIT PRV-160TC
Screw Diameter mm 40 45 50
Theoretical injection volume cm3 251 318 392
Injection Weight gr 238 300 371
oz 8.4 10.6 13
Max Injection Pressure Mpa

(kgf/cm3)

 2104 1663 1346
Injection Rate cc/s
Injection Speed mm/s 200 200 200
Screw Speed Rotation mm 0-300 0-300 0-300
Nozzle Out from Platens mm ≥45 ≥45 ≥45
Clamping Force tf 1568(160) 1568(160) 1568(160)
Clamping Stroke mm 300 300 300
Min Mould Thickness mm 280(380) 280(380) 280(380)
Max. Opening mm 580(680) 580(680) 580(680)
Distance Between Tie Bars mm 680X420 680X420 680X420
Max Mold Size mm 650X600 650X600 650X600
Platen Size mm 960X700 960X700 960X700
Ejector Distance mm 60 60 60
Ejector Force 45(4.6) 45(4.6) 45(4.6)
System Pressure Mpa

(kgf/cm3)

 140 140 140
Oil Tank Capacity l 350 350 350
Electric Power kw 18.5(25) 18.5(25) 18.5(25)
Heater Power kw 13.8 13.8 13.8
Dimension of Machine

(LXMWXH)

 m 2.4X2.0X3.6 2.4X2.0X3.6 2.4X2.0X3.6
Weight of Machine t 7.8 7.8 7.8

PRV-200TC

Technical Parameters

INJECTION UNIT UNIT PRV-200TC
Screw Diameter mm 50 55 60
Theoretical injection volume cm3 471 570 678
Injection Weight gr 445 538 640
oz 16 19 22
Max Injection Pressure Mpa

(kgf/cm3)

 2150 1777 1493
Injection Rate cc/s
Injection Speed mm/s 220 220 220
Screw Speed Rotation mm 0-300 0-300 0-300
Nozzle Out from Platens mm ≥45 ≥45 ≥45
Clamping Force tf 1960(200) 1960(200) 1960(200)
Clamping Stroke mm 350 350 350
Min Mould Thickness mm 350(450) 350(450) 350(450)
Max. Opening mm 700(800) 700(800) 700(800)
Distance Between Tie Bars mm 720X520 720X520 720X520
Max Mold Size mm 700X700 700X700 700X700
Platen Size mm 1060X860 1060X860 1060X860
Ejector Distance mm 60 60 60
Ejector Force 45(4.6) 45(4.6) 45(4.6)
System Pressure Mpa

(kgf/cm3)

 140 140 140
Oil Tank Capacity l 500 500 500
Electric Power kw 22.5(30) 22.5(30) 22.5(30)
Heater Power kw 16 16 16
Dimension of Machine

(LXMWXH)

 m 2.5X2.1X4 2.5X2.1X4 2.5X2.1X4
Weight of Machine t 11.5 11.5 11.5
