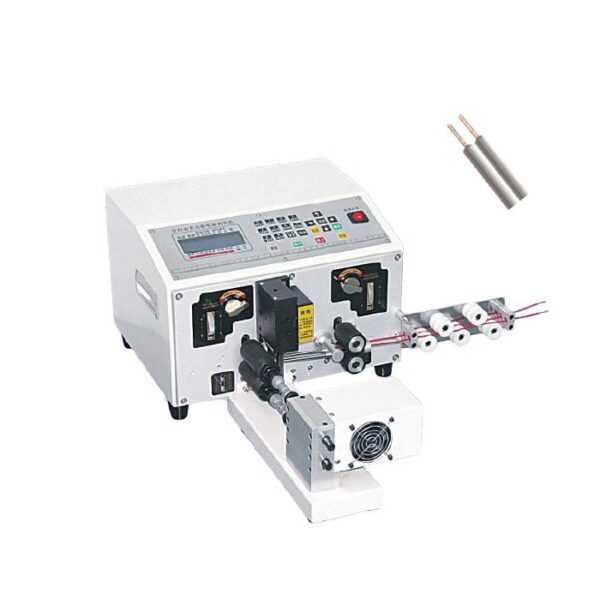

Wire and Cable Cutting and Stripping Machine with Twisting – PRV-CS-320-T

Automatic Wire Cutting and Stripping Machine parovi Machines Automatic Wire Cutting and Stripping Machine – PRV-CS-320
Wire and Cable Cutting and Stripping Machine-Parovi Machines Wire and Cable Cutting and Stripping Machine – PRV-CS-340 with Copper Twisting

The PRV-CS-320-T is a high-efficiency wire and cable cutting and stripping machine with built-in copper twisting, ideal for wires up to 4 mm diameter.

Applications:

  • Electrical wire harness production

  • Data and communication cable prep

  • Terminal crimping preparation

  • PCB and connector assembly lines

  • Copper wire pre-twisting before soldering

Features

Cutting & Stripping with Copper Twisting

Category:

Description

The PRV-CS-320-T PVC Wire and Cable Cutting and Stripping Machine is engineered for precision processing of PVC wires and cables with additional copper twisting functionality. PVC Wire and Cable Cutting and Stripping Machine-PRV-CS-320 supports wire diameters from AWG #14 to AWG #32 (Max. 4 mm), ensuring compatibility with a wide range of electrical and data cabling tasks.

PVC Wire and Cable Cutting and Stripping Machine-PRV-CS-320 designed for high-volume manufacturing, it delivers cutting lengths from 1 mm to 99,999.9 mm and stripping up to 99 mm, while also offering copper twisting from 3 to 20 mm, ideal for preparing wire ends for soldering or terminal attachment.

Compact and lightweight at 36 kg, with a small footprint of 450 × 450 × 360 mm, the PRV-CS-320-T integrates easily into any production environment. Powered by 220V, 50 Hz, this machine is built for consistent, high-precision performance in modern cable processing lines.

Technical Parameters
MODEL PRV-CS-320-T
Applicable Wire Diameter AWG #14 ~ AWG #32 – Max. 4 mm
Cutting Length 1 mm ~ 99999.9 mm
Stripping Length 1 mm ~ 99 mm
Twisting Length 3 ~ 20 mm
Size of Machine 450 x 450 x 360 mm
Weight of Machine 36 Kg
Power 220 V 50 Hz

Key Features:

  • Cutting, stripping, and copper wire twisting in one operation

  • Processes wire sizes from AWG #14 to AWG #32 (Max. 4 mm)

  • Accurate cutting length up to 99,999.9 mm

  • Stripping up to 99 mm and twisting from 3 to 20 mm

  • Compact and efficient for electronics, automotive, and harness industries

  • Plug-and-play with 220V standard power supply
