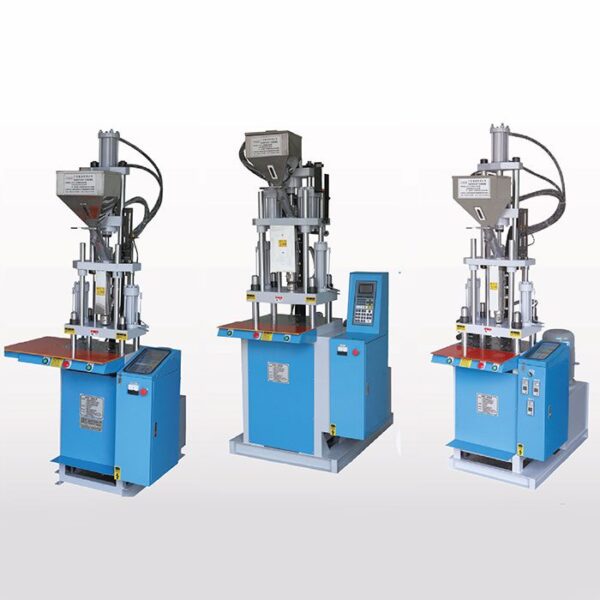

PRV-200/250/350 Small Four Column Series
PRV-200/250/350 Small Four Column Series

PRV-200/250/350 Small Four Column Series

Untitled 1333333 1 PRV-150 Small Two Column Series

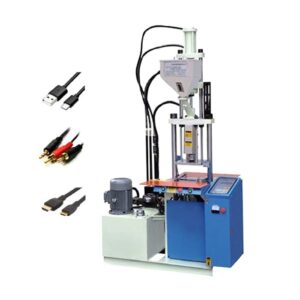

Double Slider Vertical Injection Moulding Machines Single Sliding Vertical Injection Moulding – PRV-T1S

Models :

PRV-200, PRV-250, PRV-300

Features:

• Machine vertical locking mould and vertical injection, are suitable for the common electric appliance plugs, electronic components and small cavity products.
• Three-section the temperature controls, speed controls and back pressure control. Suits components of the precise parting
• The fast locking mould system with low-pressure closing locks the mould exceptionally safe. After the mould is locked, then automatically increases the locking pressure. This special safe design functions as a protection against mould.
• The Mould is a fixed or removable type. The injection has good spread and localization in the mould. The end product has the fluid release to leave the cavity, the end product comes out extremely controlled.
• The electrical fittings and hydraulic pressure fitting used are best in the class and popular brands with good durability and low noise
• Locking mould strength 15TON-35TON, has PLC to program the electrical controls. PLC’s single-place operation can
control entire functions. The proportion/ratio of force to flow has three-segmented controls.
• May adopt mould as 1 Side operation or with double mould for 2 side operation. The operator is more convenient in production and safer

Category:

Description

Technical Parameters



INJECTION UNIT Unit PRV-200 PRV-250 PRV-350
Screw Diameter mm ø22 ø28 ø26 ø30 ø28 ø32
Injection Pressure kgf/cm3 1625 1004 1677 1260 1785 1367
Injection Capacity cm3 34 55 55 74 74 96
Injection Weight gr 39 63 63 85 85 110
oz 2 1.4 2.2 2.2 3 3
Injection Rate cc/s 28 45 42 57 55 58
Screw Speed r.p.m 0-150 0-150 0-150 0-150 0-150 0-150
Screw Rotation mm 105 105 120 120 120 120
Nozzle Stroke mm 120 120 150 150 200 200
Nozzle Contact Force tf 2.4 2.4 2.4 2.4 2.4 2.4
Clamping System … Hydraulic Hydraulic Hydraulic Hydraulic Hydraulic Hydraulic
Clamping Force tf 20 20 25 25 35 35
Clamping Stroke mm 200 200 215 215 215 215
Max. Mould Space mm 260 260 275 275 360 360
Min Mould Height mm 60 60 60 450X400 145 145
Overall Size of Platens (HXV) mm 450X270 450X270 520X330 520X330 570X370 570X370
Space Between Columns (HXV) mm 310X160 310X160 370X200 370X200 420X220 420X220
Hydroulic Ejecter Force tf 0.7 0.7 0.7 0.7 0.7 0.7
Ejector Stroke mm 28 28 28 28 28 28
Electrical Equipment and Ceneral
Drive Motor kw 2.2(3HP) 2.2(3HP) 3.7(5HP) 3.7(5HP) 5.5(7HP) 5.5(7HP)
Heater kw 2 2 2.3 2.3 3.3 3.3
Dimention of Machine(LXMWXH) m 1.2 X 0.9 X 2.9 1.2 X 0.9 X 2.9 1.25 X 1.0 X 2.9 1.25 X 1.0 X 2.9 1.4 X 1.1 3.2 1.4 X 1.1 3.2
Weight of Machine t 0.65 0.65 0.9 0.9 1.1 1.1
Shipping Size m 1.4 X 1.1 X 2.25 1.4 X 1.1 X 2.25 1.4 X 1.1 X 2.25 1.4 X 1.1 X 2.25 1.55 X 1.1 X 2.25 1.55 X 1.1 X 2.25
Shipping Weight t 0.8 0.8 1.1 1.1 1.3 1.3
Oil Tank Capacity l 90 90 120 120 160 160
Cooling Water l/hr 400-600 400-600 500-700 500-700 600-800 600-800

Technical Parameters

PVR-200

INJECTION UNIT Unit PRV-200
Screw Diameter mm ø22 ø28
Injection Pressure kgf/cm3 1625 1004
Injection Capacity cm3 34 55
Injection Weight gr 39 63
oz 2 1.4
Injection Rate cc/s 28 45
Screw Speed r.p.m 0-150 0-150
Screw Rotation mm 105 105
Nozzle Stroke mm 120 120
Nozzle Contact Force tf 2.4 2.4
Clamping System … Hydraulic Hydraulic
Clamping Force tf 20 20
Clamping Stroke mm 200 200
Max. Mould Space mm 260 260
Min Mould Height mm 60 60
Overall Size of Platens (HXV) mm 450X270 450X270
Space Between Columns (HXV) mm 310X160 310X160
Hydroulic Ejecter Force tf 0.7 0.7
Ejector Stroke mm 28 28
Electrical Equipment and Ceneral
Drive Motor kw 2.2(3HP) 2.2(3HP)
Heater kw 2 2
Dimention of Machine(LXMWXH) m 1.2 X 0.9 X 2.9 1.2 X 0.9 X 2.9
Weight of Machine t 0.65 0.65
Shipping Size m 1.4 X 1.1 X 2.25 1.4 X 1.1 X 2.25
Shipping Weight t 0.8 0.8
Oil Tank Capacity l 90 90
Cooling Water l/hr 400-600 400-600

PVR-250

INJECTION UNIT Unit PRV-250
Screw Diameter mm ø26 ø30
Injection Pressure kgf/cm3 1677 1260
Injection Capacity cm3 55 74
Injection Weight gr 63 85
oz 2.2 2.2
Injection Rate cc/s 42 57
Screw Speed r.p.m 0-150 0-150
Screw Rotation mm 120 120
Nozzle Stroke mm 150 150
Nozzle Contact Force tf 2.4 2.4
Clamping System … Hydraulic Hydraulic
Clamping Force tf 25 25
Clamping Stroke mm 215 215
Max. Mould Space mm 275 275
Min Mould Height mm 60 450X400
Overall Size of Platens (HXV) mm 520X330 520X330
Space Between Columns (HXV) mm 370X200 370X200
Hydroulic Ejecter Force tf 0.7 0.7
Ejector Stroke mm 28 28
Electrical Equipment and Ceneral
Drive Motor kw 3.7(5HP) 3.7(5HP)
Heater kw 2.3 2.3
Dimention of Machine(LXMWXH) m 1.25 X 1.0 X 2.9 1.25 X 1.0 X 2.9
Weight of Machine t 0.9 0.9
Shipping Size m 1.4 X 1.1 X 2.25 1.4 X 1.1 X 2.25
Shipping Weight t 1.1 1.1
Oil Tank Capacity l 120 120
Cooling Water l/hr 500-700 500-700

PVR-300

INJECTION UNIT Unit PRV-350
Screw Diameter mm ø28 ø32
Injection Pressure kgf/cm3 1785 1367
Injection Capacity cm3 74 96
Injection Weight gr 85 110
oz 3 3
Injection Rate cc/s 55 58
Screw Speed r.p.m 0-150 0-150
Screw Rotation mm 120 120
Nozzle Stroke mm 200 200
Nozzle Contact Force tf 2.4 2.4
Clamping System … Hydraulic Hydraulic
Clamping Force tf 35 35
Clamping Stroke mm 215 215
Max. Mould Space mm 360 360
Min Mould Height mm 145 145
Overall Size of Platens (HXV) mm 570X370 570X370
Space Between Columns (HXV) mm 420X220 420X220
Hydroulic Ejecter Force tf 0.7 0.7
Ejector Stroke mm 28 28
Electrical Equipment and Ceneral
Drive Motor kw 5.5(7HP) 5.5(7HP)
Heater kw 3.3 3.3
Dimension of Machine(LXMWXH) m 1.4 X 1.1 3.2 1.4 X 1.1 3.2
Weight of Machine t 1.1 1.1
Shipping Size m 1.55 X 1.1 X 2.25 1.55 X 1.1 X 2.25
Shipping Weight t 1.3 1.3
Oil Tank Capacity l 160 160
Cooling Water l/hr 600-800 600-800
