Automatic Cable Cutting, Sheath Peeling & Core Stripping Machine-PRV-CS-8600

Heavy Cable Cutting and Stripping Machine PRV-CS-70 Heavy Cable Cutting and Stripping Machine PRV-CS-70
Automatic Large Wire Cutting and Stripping Machine Parovi Machines Automatic Large Wire Cutting and Stripping Machine – PRV-CS-150 / PRV-CS-240

3-in-1 automatic wire and cable cutting, sheath peeling, and core stripping machine for thick single-core and multi-core cables. Built for precision and high-efficiency industrial use.

Applications:

  • Power cable harnessing

  • Control cabinet wiring

  • Multi-core signal cable processing

  • Heavy-duty cable assembly

  • Electrical panel manufacturing

Category:

Description

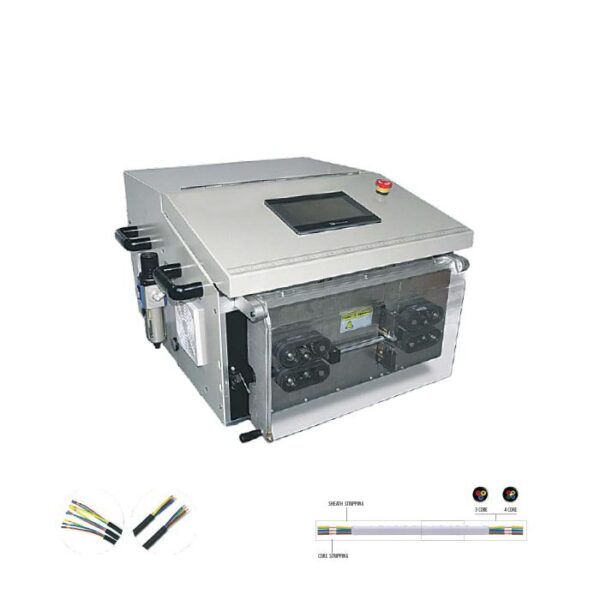

The PRV-CS-8600 is a powerful and fully automatic cable cutting and stripping machine engineered to handle thick multi-core cables and single-core wires. This advanced unit integrates cutting, outer sheath peeling, and core wire stripping in one seamless process, delivering exceptional productivity and precision.

Automatic Cable Cutting and Stripping Machine is equipped with dual blade systems, the machine separates outer insulation and inner cores with high accuracy (cutting depth: 0.01 mm). With the ability to process cables from 3.0 to 12.0 mm in diameter, the Automatic Cable Cutting and Stripping Machine PRV-CS-8600 is ideal for cable harness industries, control panel manufacturing, and heavy-duty electrical applications.

Thanks to its robust build and intelligent automation, the Automatic Cable Cutting and Stripping Machine-PRV-CS-8600 boosts throughput while reducing manual labor, achieving processing speeds of up to 650 pieces/hour, depending on the wire type.

Technical Parameters

MODEL PRV-CS-8600 Cable Cutting, Sheath & Core Stripping
Cutting Length 50 mm ~ 9999 mm
Wire Diameter 3.0 ~ 12.0 mm
Cutting Depth 0.01 mm
Working Efficiency 350 ~ 650 Pcs /Hr. Depending upon wire material)
Max. Stripping Capacity Left End: 100 mm Right End 150 mm
Min. Outer Wire Stripping Length 30mm
Dimensions 770 x 740 x 400 mm
Weight 120 kg
Power Supply AC 220 V/ 50/60/Hz
Power Consumption 700 W
Key Features:

  • Automatic 3-in-1 Operation: Cutting, outer sheath peeling & inner core stripping

  • Supports thick multi-core cables and single-core wires

  • Precise stripping with dual blade system (outer and core)

  • Accurate cutting depth up to 0.01 mm

  • Processes cables with diameters from 3.0 to 12.0 mm

  • Productivity up to 650 pieces/hour

  • Compact and sturdy design for industrial use
