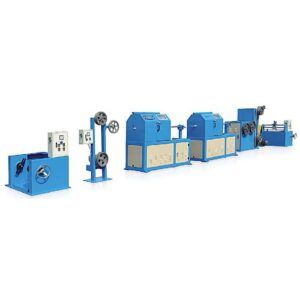

NC Single/Double Horizontal Taping Machine – PRV-STA-800 for Copper Wires & High-Speed Data Cables

NC Single Double Vertical Taping Machine NC Single/Double Vertical Taping Machine – Φ500 Numerical Control for High-Frequency Data Cables
Micro Computer Coiling Machine Micro Computer Coiling Machine – Automatic Wire Coiler with PLC & Servo Control

High-performance NC Single/Double Horizontal Taping Machine for HDMI, USB3.1, SATA, and copper winding wires. Supports a wide range of tape materials including mica, foil, and Teflon.

Application

  • Copper Winding Wire Taping

  • High-Speed Data Cable Shielding (USB 3.1, HDMI, SATA)

  • Specialized Electrical & Electronic Cable Manufacturing

Category: Tags: , , , , ,

Description

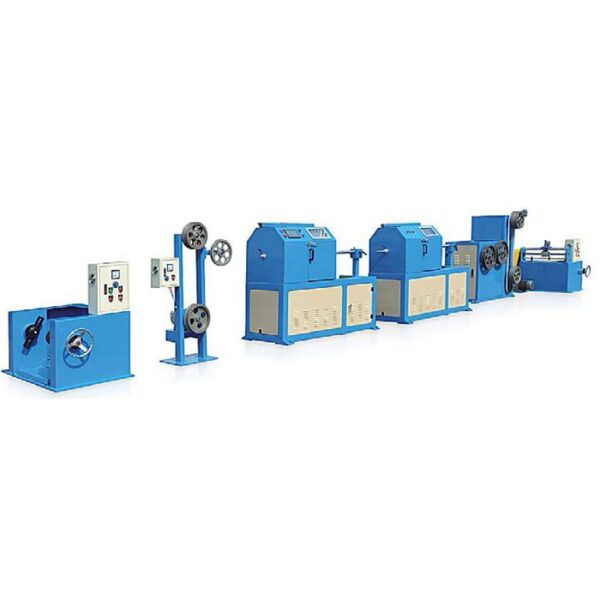

The PRV-STA-800 NC Horizontal Taping Machine is engineered for high-precision tape wrapping applications on copper winding wires and data transmission cables such as HDMI, USB 3.1, and SATA. This versatile machine supports both single and double taping, offering optimal coverage and consistency.

It is compatible with various tape types including BOPP, Polyester, Aluminum Foil, Transparent Mica Tape, Cotton, and Teflon Tape, making it highly suitable for different insulation and shielding needs.

Designed with electromagnetic particle clutch control, automatic tension tracking, and resistance heating, the PRV-STA-800 ensures precision and stability throughout continuous operations. Ideal for manufacturers who demand automation, performance, and flexibility in wire and cable production.

Technical Parameters
MODEL PRV-STA-800
Pay off Motor Power Four 1 HP gear Reduction Motors
Take up Motor Power Hosters Motor 3HP Pair Motor 1.5HP Tranaduce Control
Take up Motor Power 2HP AC Motor, Tranaduce Control
Tap Tension Control Electromagnetic Particles Clucth Control
Take up Tension Control Tension Automatic Tracking
Heating Mode Resistance Heating, Automatic Control
Rolling Unit Axis Model
Key Features:

  • Single & Double Taping Options

  • Works with copper winding wires, HDMI, USB3.1, SATA, and more

  • Compatible with BOPP, Polyester, Mica, Cotton, Teflon, and Aluminum Foil Tapes

  • Automatic tension control and electromagnetic clutch system

  • Resistance heating with automatic control

  • Transducer-controlled motors for smooth take-up operation

  • Materials Supported:

    • BOPP

    • Polyester

    • Aluminum Foil

    • Transparent Mica Tape

    • Cotton Tape

    • Teflon Tape
