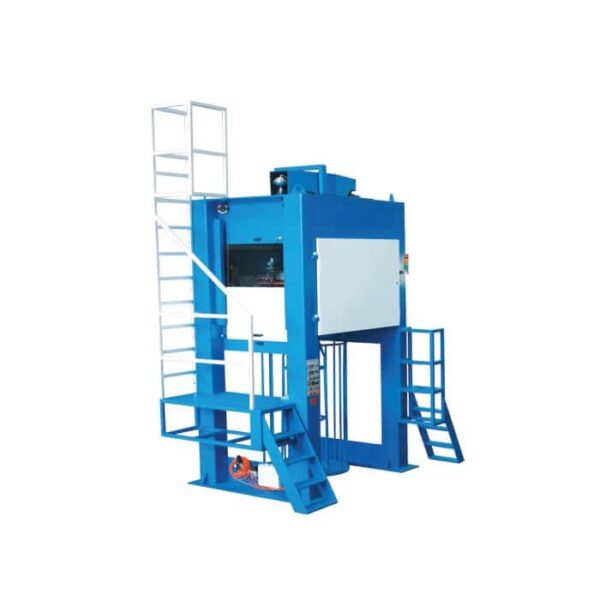

High-Speed Drop Coiler Machine

Automatic high-speed drop coiler Machine for non-stop production. Adjustable winding tightness, large take-up capacity, and maintenance-free AC motor drive.

Applications:

  • Wire and cable production lines

  • Intermediate and fine wire take-up systems

  • Power cable and automotive cable manufacturing

  • Industrial welding wire production

Category:

Description

Drop Coiler Machine – Models WF800 & WF650

The WF800 and WF650 Drop Coiler Machines are designed for efficient, continuous operation in wire manufacturing lines. With fully automatic drum changing and adjustable winding tightness, these coilers support high-speed production while maintaining exceptional wire quality.

Built with a maintenance-free three-phase AC motor drive, these machines guarantee smooth, trouble-free pay-off and long-term durability. Whether you’re handling fine wires or thicker industrial-grade wire, the WF Series ensures optimal performance with dynamic balance precision and high-speed, stable running.

Key Features:

  • Automatic non-stop production with automatic drum changeover.

  • Adjustable tightness of winding to suit different wire types and applications.

  • Large take-up capacity (up to 1800kg for WF800).

  • Maintenance-free 3-phase AC motor drive (AC15kW).

  • High-grade dynamic balancing for stable high-speed operation.

  • Compact, rugged design with low noise and minimal maintenance needs.

  • Trouble-free pay-off to minimize downtime and maximize efficiency.

Technical Parameters
MODEL WF800 WF650
Wire Size Ø1.2-Ø4.0mm Ø0.8-Ø2.0mm
Speed(m/min) Max1200 Max1200
Coiler Dia(min) Ø800mm Ø650mm
Take-up Stand Size Ø580 x Ø1050 x Ø1600 Ø480 x Ø850 x Ø1540
Take-up Stand Capacity Max 1800kg Max 1000kg
Coiler Motor Power AC15kw AC15kw
Spooling Motor Power 0.75Kw 0.75Kw
Overall Dimensions (LxWxH) 4.28 x 3.8 x 4.55M 2.6 x 3.8 x 3.7M
Net Weight 5000kg 3500kg
Production Speed
Wire Size WF800 WF650
2.6mm 1000 M/min
20mm 1200 M/min 800 M/min
