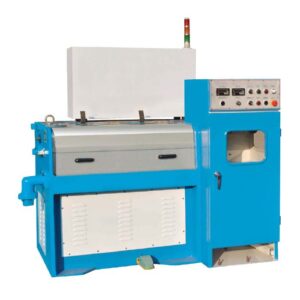

Horizontal Super-Fine Wire Drawing Machine Advanced Horizontal Super-Fine Wire Drawing Machine | SMD120/24 & SMD100/24

High-Performance Copper Wire Annealing & Tinning Machine

Boost your production with our QDX-40 Copper Wire Annealing and Tinning Machine. High-speed, energy-saving, and compact design for flawless wire processing

Features

  • The evenly distributed temperature in the annealing furnace ensures effective energy saving.
  • Simultaneous processing of a variety of products.
  • Double-layer take-up design, reduced floor space.
  • Number of simultaneous lines: 40, 36, 32, 28, 24, 20 or 16.
  • For wire size range: 0.6mm – 0.03mm (different models).

Category: Tags: , ,

Description

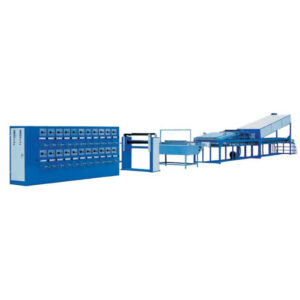

High-Efficiency Copper Wire Annealing and Tinning Machine – QDX-40

Designed for maximum productivity and precision, the QDX-40 Copper Wire Annealing and Tinning machine efficiently processes up to 40 copper wires simultaneously with a wire range of 0.08–0.32 mm. With its curl flyer or constant tension pay-off, dual furnace hot dip tinning mode, and advanced annealing furnace technology, this machine guarantees consistently superior wire quality.

Key Features of Copper Wire Annealing and Tinning machine QDX-40:

  • Processes 40 wires at once, enhancing output capacity.

  • Wire size range: 0.08mm to 0.32mm (expandable to other models).

  • Advanced annealing furnace ensures even heat distribution for energy savings.

  • High-speed operation at up to 300 meters/min.

  • Single/Double furnace hot dip system with dies for perfect tinning.

  • Compact double-layer take-up design saves valuable factory space.

  • Strong, durable construction with casting block gear traverse for smooth operation.

Technical Parameters

Type QDX-40
Application Annealing & Tinning of Copper Wire
Number Of Wires Processed 40
Wire To Processed 0.08-0.32 mm
Max Wire Speed 300 mts./min
Pay – Off Curl Flyer Or Constant Tension Pay-Off
Tinning Mode Single/ Double furnace hot dip with dies
Pay-off bobbin size Ø300 mm
Take-up Mode Single bobbin torque take-up
Take-up bobbin size PT10-PT25
Installed Motion Power 14kw
Installed Heating Power 35kw
Total Installed Power 49kw
Traversing Unit Casting Block Gear Traverse
Machine Dimension (LxWxH) 20 x 1.6 x 2.2M
Gross Weight 4500 kg

Ideal for high-volume wire processing industries seeking top-notch quality, energy efficiency, and cost savings.
