Intermediate Large Wire Drawing Machine with Inline Annealer – ZLT350/9

High-Speed Drop Coiler Machine High-Speed Drop Coiler Machine – WF800 / WF650
Intermediate Wire Drawing Machine With Annealer Intermediate Wire Drawing Machine with Inline Annealer – Dual Inverter Series

  • High-precision Large intermediate Wire Drawing Machine with Annealer . Dual-inverter drive system, low noise, low power consumption, and high efficiency.

  • Applications:

    • Large-size copper and aluminum wire drawing

    • Power cable and industrial wire production

    • Automotive and electrical wiring manufacturing

Category:

Description

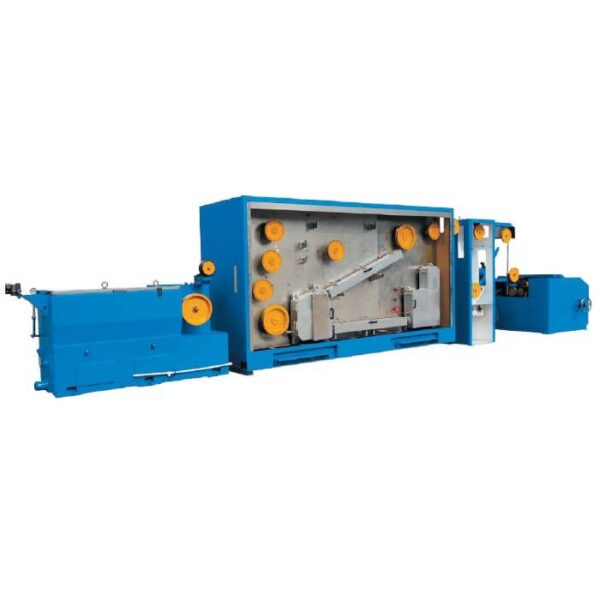

Large intermediate Wire Drawing Machine with Annealer | Model: ZLT350/9

Engineered for industrial-scale wire production, the ZLT350/9 Large intermediate Wire Drawing Machine with Annealer delivers maximum performance and reliability. Utilizing an advanced dual-inverter AC drive and horizontal contact-type DC annealing, Large intermediate Wire Drawing Machine with Annealer ensures smooth operation, outstanding surface quality, and significantly reduced energy costs.

With a wire input diameter range of Ø2.6–3.5mm and finish diameter between Ø1.0–2.76mm, the Large intermediate Wire Drawing Machine with Annealer ZLT350/9 achieves speeds up to 1200M/min. Featuring a heavy-duty construction, precision gear drive, and intelligent digital take-up correction system, it is the ideal solution for large-scale, high-demand wire drawing operations.

Key Features:

  • AC three-phase dual inverter drive ensures stable and efficient speed control.

  • Horizontal contact-type DC annealing improves surface finish and wire ductility.

  • Digital control system with automatic take-up correction for precise winding.

  • High-precision gear drive for low-noise, high-efficiency transmission.

  • Tungsten carbide drawing capstan for superior wear resistance.

  • Full immersion lubrication system for longer machine life and reduced maintenance.

  • Bi-shaft cone type bobbin loading system for smooth and quick spool changes.

  • Buffer rod with air cylinder and rocker arm for consistent tension management.

  • High-capacity annealer (150kVA) with 2500A annealing current output.

Technical Parameters
MODEL ZLT350/9
Control system Digital
Power Control Dual-Inverter
Wire Inlet Dia 2.6-3.5mm
Wire Finished Dia 1.0-2.76mm
Max Wire Speed 1200M/min
Max No. of Dies 9
Transmission Type Gear drive
Mechanical Elongation 25%+16.7%
Drawing Capstan Tungsten Carbide
Construction of the Machine Body Plate Welding and Annealing
Capston Dia 350mm
Fix Speed Capston Dia 350mm
Spool Bobbin Size SN500, SN630 (optional )
Bobbin Loading & Unloading Type Bi-shafts cone
Traversing Unit AC Reducer Motor and Timing Belt
Main Motor 55kw(6p)
Spooler Motor AC11kw
Correction System Automatic Digital Control of Take-up
Tension Control Buffer Rod with Air Cylender and Rocket Arm
Max Loading Capacity 250Kg(SN500) or 500kg(SN630)
Lubrication Type Lubrication By Full Immersion<
Lubricant capacity 100L/min
Brake Disk Type Brake
Lubrication Type For Bearing Pump Enforce Oil
Annealing Control 3 Pole DC Current Output
Annealing capacity 150Kva
Annealing Voltage Max 65v
Annealing Current 2500A
Power Source 415V/50Hz
Connect Load 77Kw+150kva
Steam Consumption 2-0.3Mpa(with 9kw steam generator)
Cooling Water Consumption 2-0.3Mpa
Air Consumption 0.4-0.6Mpa
Machine Dimension 14 x 3.5 x 4M
Gross Weight 7000Kg
