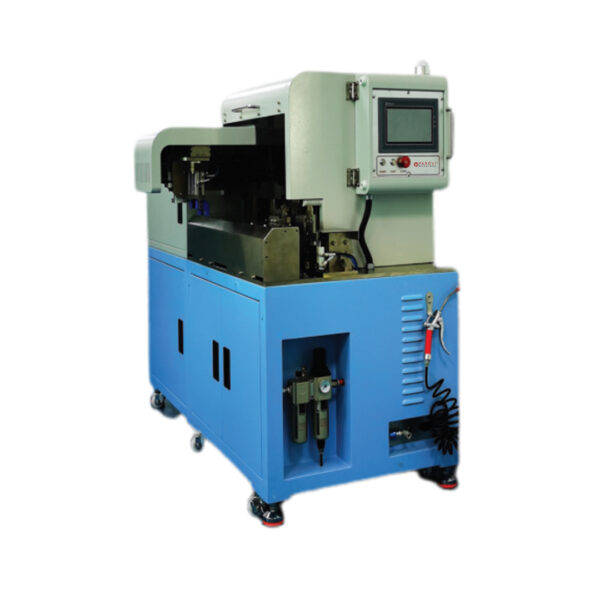

Automatic RJ-45 Connector Crimping Machine

Description

The Automatic RJ-45 Connector Crimping Machine is a fully automated system specifically designed for high-efficiency crimping of Cat5 and Cat6 one-piece RJ-45 crystal heads. It supports network cable core OD ≥ 0.95mm, making it ideal for both short-body and long-body connectors.

This Automatic RJ-45 Connector Crimping Machine features a high-performance PLC programmable controller, intuitive touch-screen HMI, and four high-precision, high-power servo motors for stable, reliable, and fast production. Automated wire stitching, connector feeding, and crimping ensure perfect consistency and premium finishing quality.

Key Features:

• Supports Cat5 / Cat6 RJ-45 one-piece connectors

• Compatible with 8P network cables (OD ≥ 0.95mm)

• Fully automatic stitching, insertion, and crimping

• High-precision crimping with 4 servo motors + linear modules

• PLC control + Touchscreen HMI for easy operation

• Improves consistency, reduces human error, and increases output

• Stable, efficient, and suitable for mass production

Technical Specifications

Parameter	Specification
Applicable Connectors	Cat5 / Cat6 RJ-45 Long & Short Body One-Piece Crystal Heads
Compatible Cable Type	8P Network Cable, OD ≥ 0.95mm
Control System	PLC Programmable Control + Touch Screen HMI
Drive System	4 High-Precision, High-Power Servo Motors + Linear Module
Production Output	600 pcs/hour
Machine Size	1450 × 650 × 1200 mm
Machine Weight	260 kg

Applications:

• Ethernet cable manufacturing

• RJ-45 connector crimping & assembly

• Network cable assembly production lines

• LAN cable manufacturing factories

• High-volume connector termination units
