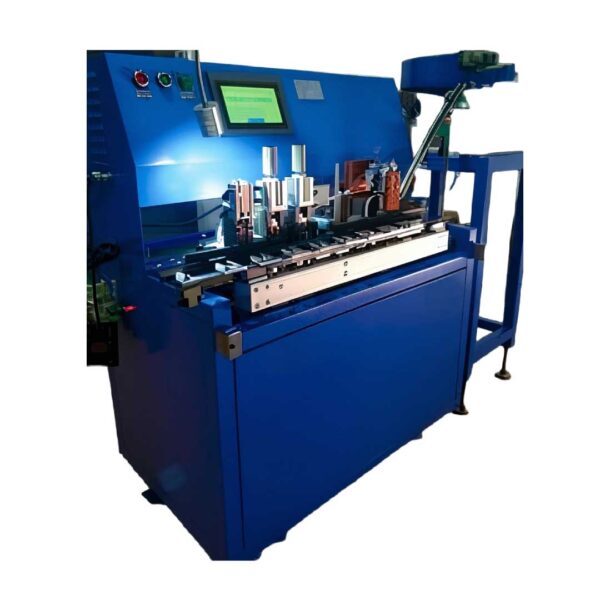

High-speed Fully Automatic HDMI Connector Soldering Machine designed for cutting, straightening, stripping, inserting, and soldering HDMI connectors in a single automated process. With a production speed of 800–1100 plugs/hour, this advanced system supports HDMI, DP, and HDMI 2.1 connectors with industrial-grade precision and stability.

Category: Tags: , , , , ,

Description

The Fully Automatic HDMI Connector Soldering Machine (Model PRV-002A) is an industrial-grade automated soldering solution engineered for high-volume HDMI cable production. This machine integrates wire cutting, straightening, stripping, terminal insertion, and high-frequency double-sided soldering into one synchronized workflow—significantly reducing manual labor and improving connector consistency.

This Fully Automatic HDMI Connector Soldering Machine Designed for HDMI, HDMI 2.1, and large DP connectors, the system delivers precise tin application, uniform solder joints, and stable electrical performance. The digital intelligent control interface allows operators to easily manage electrical parameters, track productivity, and maintain consistent output quality.

Fully Automatic HDMI Connector Soldering Machine With a real-world production capacity of 800–1100 plugs per hour, this machine is ideal for cable assembly factories aiming to increase automation, reduce manpower, and achieve high-quality, mass-production standards.

Key Features:

  • Industrial-grade automatic soldering machine

  • Supports HDMI, HDMI 2.1, and DP connectors

  • Integrated workflow:
    ✔ Wire Cutting
    ✔ Wire Straightening
    ✔ Wire Stripping
    ✔ Connector Insertion
    ✔ High-frequency Soldering

  • Digital intelligent control system

  • Touchscreen interface for easy operation

  • Automatic counting + production statistics

  • High-frequency double-sided soldering for consistent, full tin points

  • Reduces manpower by more than 5 workers

  • Stable, safe, and reliable continuous operation

  • Single-person operation >500 pcs/hour (actual factory output 800–1100 pcs/hour)



Technical Specifications

Parameter Specification
Model PRV-002A
Rated Voltage 220V
Working Pressure 8 KG
Rated Power 300–3000 W
Production Output 800–1100 plugs/hour
Applicable Connectors HDMI, HDMI 2.1, Large DP
Control Interface Touchscreen Digital Intelligent Control
Machine Dimensions L900 × W540 × H1140 mm
Net Weight 214 kg
Soldering Type High-frequency double-sided soldering
Manpower Saving Reduces over 5 workers
Control Method Electrical parameter regulation + automatic counting

Applications:

  • HDMI cable manufacturing

  • Audio-video cable assembly lines

  • Electronic connector processing units

  • DP & HDMI 2.1 mass production

  • Fully automatic wire harness soldering setups
