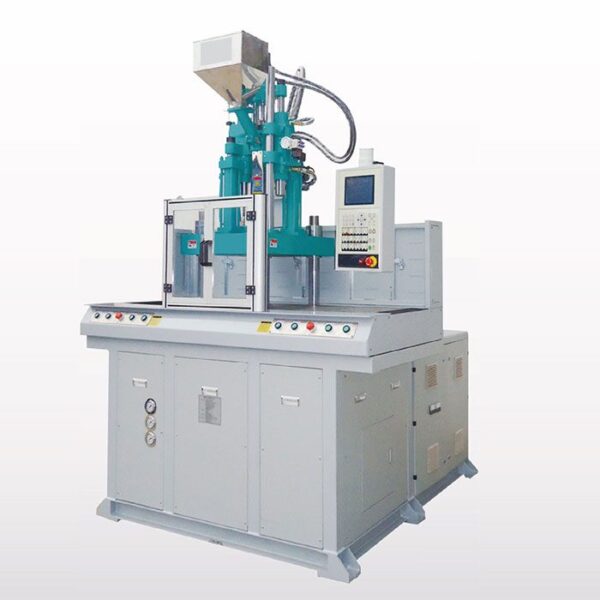

Automation Series PRV-T-H High Speed Injection Molding Machines
Models :
PRV-35TH PRV-55TH, PRV-85-TH, PRV-120-TH
Features:
• High-speed plastic injection with high pressure
• Maximum injection speed can reach 350mm/sec
• Short production cycle, precision molding
• Very stable for Thin-wall moulding
• HMI will demonstrate breakdown area, convenient troubleshooting
• All parts including Pressure valves, Hydraulics, and Electrical controls are of the best quality and used with fast response time and precise working
- Description
Description
Technical Parameters
| INJECTION UNIT | UNIT | PRV-35TH | ||
|---|---|---|---|---|
| Screw Diameter | mm | 20 | 22 | 25 |
| Theoretical injection volume | cm3 | 30 | 36 | 47 |
| Injection Weight | gr | 28 | 35 | 45 |
| oz | 1 | 1.2 | 1.6 | |
| Max Injection Pressure |
Mpa (kgf/cm3) |
2835 | 2343 | 1815 |
| Injection Rate | 250 | 250 | 250 | |
| Injection Speed | mm/s | 95 | 95 | 95 |
| Screw Speed Rotation | mm | 0-300 | 0-300 | 0-300 |
| Nozzle Out from Platens | mm | ≥45 | ≥45 | ≥45 |
| Clamping Force | tf | 343(35) | 343(35) | 343(35) |
| 1176(120) | mm | 215 | 215 | 215 |
| Min Mould Thickness | mm | 150(210) | 150(210) | 150(210) |
| Max. Opening | mm | 365(425) | 365(425) | 365(425) |
| Distance Between Tie Bars | mm | 420X250 | 420X250 | 420X250 |
| Max Mold Size | mm | 400X350 | 400X350 | 400X350 |
| Platen Size | mm | 570X400 | 570X400 | 570X400 |
| Ejector Distance | mm | 40 | 40 | 40 |
| Ejector Force | 17.2(1.75) | 17.2(1.75) | 17.2(1.75) | |
| System Pressure |
Mpa kgf/cm3) |
140 | 140 | 140 |
| Oil Tank Capacity | l | 160 | 160 | 160 |
| Electric Power | kw | 11(15) | 11(15) | 11(15) |
| Heater Power | kw | 3.6 | 3.6 | 3.6 |
|
Dimension of Machine (LXMWXH) |
m | 1.6X1.2X2.4 | 1.6X1.2X2.4 | 1.6X1.2X2.4 |
| Weight of Machine | t | 1.8 | 1.8 | 1.8 |
Technical Parameters
| INJECTION UNIT | UNIT | PRV-55TH | ||
|---|---|---|---|---|
| Screw Diameter | mm | 20 | 22 | 25 |
| Theoretical injection volume | cm3 | 30 | 36 | 47 |
| Injection Weight | gr | 28 | 35 | 45 |
| oz | 1 | 1.2 | 1.6 | |
| Max Injection Pressure |
Mpa (kgf/cm3) |
2835 | 2343 | 1815 |
| Injection Rate | 320 | 320 | 320 | |
| Injection Speed | mm/s | 95 | 95 | 95 |
| Screw Speed Rotation | mm | 0-300 | 0-300 | 0-300 |
| Nozzle Out from Platens | mm | ≥45 | ≥45 | ≥45 |
| Clamping Force | tf | 539(55) | 539(55) | 539(55) |
| 1176(120) | mm | 215 | 215 | 215 |
| Min Mould Thickness | mm | 180(240) | 180(240) | 180(240) |
| Max. Opening | mm | 395(475) | 395(475) | 395(475) |
| Distance Between Tie Bars | mm | 470X290 | 470X290 | 470X290 |
| Max Mold Size | mm | 450X400 | 450X400 | 450X400 |
| Platen Size | mm | 630X450 | 630X450 | 630X450 |
| Ejector Distance | mm | 40 | 40 | 40 |
| Ejector Force | 17.2(1.75) | 17.2(1.75) | 17.2(1.75) | |
| System Pressure |
Mpa (kgf/cm3) |
140 | 140 | 140 |
| Oil Tank Capacity | l | 200 | 200 | 200 |
| Electric Power | kw | 15(20) | 15(20) | 15(20) |
| Heater Power | kw | 5.5 | 5.5 | 5.5 |
|
Dimension of Machine (LXMWXH) |
m | 1.7X1.3X2.6 | 1.7X1.3X2.6 | 1.7X1.3X2.6 |
| Weight of Machine | t | 2.5 | 2.5 | 2.5 |
Technical Parameters
| INJECTION UNIT | UNIT | PRV-85TH | ||
|---|---|---|---|---|
| Screw Diameter | mm | 20 | 22 | 25 |
| Theoretical injection volume | cm3 | 30 | 36 | 47 |
| Injection Weight | gr | 28 | 35 | 45 |
| oz | 1 | 1.2 | 1.6 | |
| Max Injection Pressure |
Mpa (kgf/cm3) |
2835 | 2343 | 1815 |
| Injection Rate | 425 | 425 | 425 | |
| Injection Speed | mm/s | 95 | 95 | 95 |
| Screw Speed Rotation | mm | 0-300 | 0-300 | 0-300 |
| Nozzle Out from Platens | mm | ≥45 | ≥45 | ≥45 |
| Clamping Force | tf | 833(85) | 833(85) | 833(85) |
| 1176(120) | mm | 250 | 250 | 250 |
| Min Mould Thickness | mm | 240(320) | 240(320) | 240(320) |
| Max. Opening | mm | 480(560) | 480(560) | 480(560) |
| Distance Between Tie Bars | mm | 520X320 | 520X320 | 520X320 |
| Max Mold Size | mm | 500X450 | 500X450 | 500X450 |
| Platen Size | mm | 700X500 | 700X500 | 700X500 |
| Ejector Distance | mm | 40 | 40 | 40 |
| Ejector Force | 27.5(2.75) | 27.5(2.75) | 27.5(2.75) | |
| System Pressure |
Mpa (kgf/cm3) |
140 | 140 | 140 |
| Oil Tank Capacity | l | 280 | 280 | 280 |
| Electric Power | kw | 18.7(25) | 18.7(25) | 18.7(25) |
| Heater Power | kw | 6.4 | 6.4 | 6.4 |
|
Dimension of Machine (LXMWXH) |
m | 2.0X1.5X2.9 | 2.0X1.5X2.9 | 2.0X1.5X2.9 |
| Weight of Machine | t | 4.3 | 4.3 | 4.3 |
Technical Parameters
| INJECTION UNIT | UNIT | PRV-120TH | ||
|---|---|---|---|---|
| Screw Diameter | mm | 20 | 22 | 25 |
| Theoretical injection volume | cm3 | 30 | 36 | 47 |
| Injection Weight | gr | 28 | 35 | 45 |
| oz | 1 | 1.2 | 1.6 | |
| Max Injection Pressure |
Mpa (kgf/cm3) |
2835 | 2343 | 1815 |
| Injection Rate | 425 | 425 | 425 | |
| Injection Speed | mm/s | 95 | 95 | 95 |
| Screw Speed Rotation | mm | 0-300 | 0-300 | 0-300 |
| Nozzle Out from Platens | mm | ≥45 | ≥45 | ≥45 |
| Clamping Force | tf | 1176(120) | 1176(120) | 1176(120) |
| 1176(120) | mm | 300 | 300 | 300 |
| Min Mould Thickness | mm | 280(380) | 280(380) | 280(380) |
| Max. Opening | mm | 580(680) | 580(680) | 580(680) |
| Distance Between Tie Bars | mm | 580X380 | 580X380 | 580X380 |
| Max Mold Size | mm | 550X500 | 550X500 | 550X500 |
| Platen Size | mm | 800X600 | 800X600 | 800X600 |
| Ejector Distance | mm | 60 | 60 | 60 |
| Ejector Force | 27.5(2.75) | 27.5(2.75) | 27.5(2.75) | |
| System Pressure |
Mpa (kgf/cm3) |
140 | 140 | 140 |
| Oil Tank Capacity | l | 330 | 330 | 300 |
| Electric Power | kw | 22(30) | 22(30) | 22(30) |
| Heater Power | kw | 10.7 | 10.7 | 10.7 |
|
Dimension of Machine (LXMWXH) |
m | 2.2X1.7X3.2 | 2.2X1.7X3.2 | 2.2X1.7X3.2 |
| Weight of Machine | t | 5.6 | 5.6 | 5.6 |
Technical Parameters
| INJECTION UNIT | UNIT | PRV-35TH | ||
|---|---|---|---|---|
| Screw Diameter | mm | 20 | 22 | 25 |
| Theoretical injection volume | cm3 | 30 | 36 | 47 |
| Injection Weight | gr | 28 | 35 | 45 |
| oz | 1 | 1.2 | 1.6 | |
| Max Injection Pressure |
Mpa (kgf/cm3) |
2835 | 2343 | 1815 |
| Injection Rate | 250 | 250 | 250 | |
| Injection Speed | mm/s | 95 | 95 | 95 |
| Screw Speed Rotation | mm | 0-300 | 0-300 | 0-300 |
| Nozzle Out from Platens | mm | ≥45 | ≥45 | ≥45 |
| Clamping Force | tf | 343(35) | 343(35) | 343(35) |
| 1176(120) | mm | 215 | 215 | 215 |
| Min Mould Thickness | mm | 150(210) | 150(210) | 150(210) |
| Max. Opening | mm | 365(425) | 365(425) | 365(425) |
| Distance Between Tie Bars | mm | 420X250 | 420X250 | 420X250 |
| Max Mold Size | mm | 400X350 | 400X350 | 400X350 |
| Platen Size | mm | 570X400 | 570X400 | 570X400 |
| Ejector Distance | mm | 40 | 40 | 40 |
| Ejector Force | 17.2(1.75) | 17.2(1.75) | 17.2(1.75) | |
| System Pressure |
Mpa kgf/cm3) |
140 | 140 | 140 |
| Oil Tank Capacity | l | 160 | 160 | 160 |
| Electric Power | kw | 11(15) | 11(15) | 11(15) |
| Heater Power | kw | 3.6 | 3.6 | 3.6 |
|
Dimension of Machine (LXMWXH) |
m | 1.6X1.2X2.4 | 1.6X1.2X2.4 | 1.6X1.2X2.4 |
| Weight of Machine | t | 1.8 | 1.8 | 1.8 |
Technical Parameters
| INJECTION UNIT | UNIT | PRV-55TH | ||
|---|---|---|---|---|
| Screw Diameter | mm | 20 | 22 | 25 |
| Theoretical injection volume | cm3 | 30 | 36 | 47 |
| Injection Weight | gr | 28 | 35 | 45 |
| oz | 1 | 1.2 | 1.6 | |
| Max Injection Pressure |
Mpa (kgf/cm3) |
2835 | 2343 | 1815 |
| Injection Rate | 320 | 320 | 320 | |
| Injection Speed | mm/s | 95 | 95 | 95 |
| Screw Speed Rotation | mm | 0-300 | 0-300 | 0-300 |
| Nozzle Out from Platens | mm | ≥45 | ≥45 | ≥45 |
| Clamping Force | tf | 539(55) | 539(55) | 539(55) |
| 1176(120) | mm | 215 | 215 | 215 |
| Min Mould Thickness | mm | 180(240) | 180(240) | 180(240) |
| Max. Opening | mm | 395(475) | 395(475) | 395(475) |
| Distance Between Tie Bars | mm | 470X290 | 470X290 | 470X290 |
| Max Mold Size | mm | 450X400 | 450X400 | 450X400 |
| Platen Size | mm | 630X450 | 630X450 | 630X450 |
| Ejector Distance | mm | 40 | 40 | 40 |
| Ejector Force | 17.2(1.75) | 17.2(1.75) | 17.2(1.75) | |
| System Pressure |
Mpa (kgf/cm3) |
140 | 140 | 140 |
| Oil Tank Capacity | l | 200 | 200 | 200 |
| Electric Power | kw | 15(20) | 15(20) | 15(20) |
| Heater Power | kw | 5.5 | 5.5 | 5.5 |
|
Dimension of Machine (LXMWXH) |
m | 1.7X1.3X2.6 | 1.7X1.3X2.6 | 1.7X1.3X2.6 |
| Weight of Machine | t | 2.5 | 2.5 | 2.5 |
Technical Parameters
| INJECTION UNIT | UNIT | PRV-85TH | ||
|---|---|---|---|---|
| Screw Diameter | mm | 20 | 22 | 25 |
| Theoretical injection volume | cm3 | 30 | 36 | 47 |
| Injection Weight | gr | 28 | 35 | 45 |
| oz | 1 | 1.2 | 1.6 | |
| Max Injection Pressure |
Mpa (kgf/cm3) |
2835 | 2343 | 1815 |
| Injection Rate | 425 | 425 | 425 | |
| Injection Speed | mm/s | 95 | 95 | 95 |
| Screw Speed Rotation | mm | 0-300 | 0-300 | 0-300 |
| Nozzle Out from Platens | mm | ≥45 | ≥45 | ≥45 |
| Clamping Force | tf | 833(85) | 833(85) | 833(85) |
| 1176(120) | mm | 250 | 250 | 250 |
| Min Mould Thickness | mm | 240(320) | 240(320) | 240(320) |
| Max. Opening | mm | 480(560) | 480(560) | 480(560) |
| Distance Between Tie Bars | mm | 520X320 | 520X320 | 520X320 |
| Max Mold Size | mm | 500X450 | 500X450 | 500X450 |
| Platen Size | mm | 700X500 | 700X500 | 700X500 |
| Ejector Distance | mm | 40 | 40 | 40 |
| Ejector Force | 27.5(2.75) | 27.5(2.75) | 27.5(2.75) | |
| System Pressure |
Mpa (kgf/cm3) |
140 | 140 | 140 |
| Oil Tank Capacity | l | 280 | 280 | 280 |
| Electric Power | kw | 18.7(25) | 18.7(25) | 18.7(25) |
| Heater Power | kw | 6.4 | 6.4 | 6.4 |
|
Dimension of Machine (LXMWXH) |
m | 2.0X1.5X2.9 | 2.0X1.5X2.9 | 2.0X1.5X2.9 |
| Weight of Machine | t | 4.3 | 4.3 | 4.3 |
Technical Parameters
| INJECTION UNIT | UNIT | PRV-120TH | ||
|---|---|---|---|---|
| Screw Diameter | mm | 20 | 22 | 25 |
| Theoretical injection volume | cm3 | 30 | 36 | 47 |
| Injection Weight | gr | 28 | 35 | 45 |
| oz | 1 | 1.2 | 1.6 | |
| Max Injection Pressure |
Mpa (kgf/cm3) |
2835 | 2343 | 1815 |
| Injection Rate | 425 | 425 | 425 | |
| Injection Speed | mm/s | 95 | 95 | 95 |
| Screw Speed Rotation | mm | 0-300 | 0-300 | 0-300 |
| Nozzle Out from Platens | mm | ≥45 | ≥45 | ≥45 |
| Clamping Force | tf | 1176(120) | 1176(120) | 1176(120) |
| 1176(120) | mm | 300 | 300 | 300 |
| Min Mould Thickness | mm | 280(380) | 280(380) | 280(380) |
| Max. Opening | mm | 580(680) | 580(680) | 580(680) |
| Distance Between Tie Bars | mm | 580X380 | 580X380 | 580X380 |
| Max Mold Size | mm | 550X500 | 550X500 | 550X500 |
| Platen Size | mm | 800X600 | 800X600 | 800X600 |
| Ejector Distance | mm | 60 | 60 | 60 |
| Ejector Force | 27.5(2.75) | 27.5(2.75) | 27.5(2.75) | |
| System Pressure |
Mpa (kgf/cm3) |
140 | 140 | 140 |
| Oil Tank Capacity | l | 330 | 330 | 300 |
| Electric Power | kw | 22(30) | 22(30) | 22(30) |
| Heater Power | kw | 10.7 | 10.7 | 10.7 |
|
Dimension of Machine (LXMWXH) |
m | 2.2X1.7X3.2 | 2.2X1.7X3.2 | 2.2X1.7X3.2 |
| Weight of Machine | t | 5.6 | 5.6 | 5.6 |
