Solar Cable Production Line
Solar Cable Production Line

Solar Cable Production Line – 70mm + 80mm Tandem Extrusion Line

Silicone Wire Extrusion Line Silicone Wire Extrusion Line
Double Decker Triple Layer Extrusion Line 500 m/min DOUBLE DECKER TRIPLE LAYER EXTRUSION LINE – PRV 90+60+70+50 mm

High-efficiency Solar Cable Production Line engineered for precision extrusion of HFFR and XLPO-insulated solar cables. Featuring dual extruders, advanced cooling, and high-speed control systems, this line ensures consistent performance and superior insulation quality.

<button class=”popmake-11074 btn btn-md btn-primary”>Send Query</button>

Category: Tags: , , , , , , , ,

Description

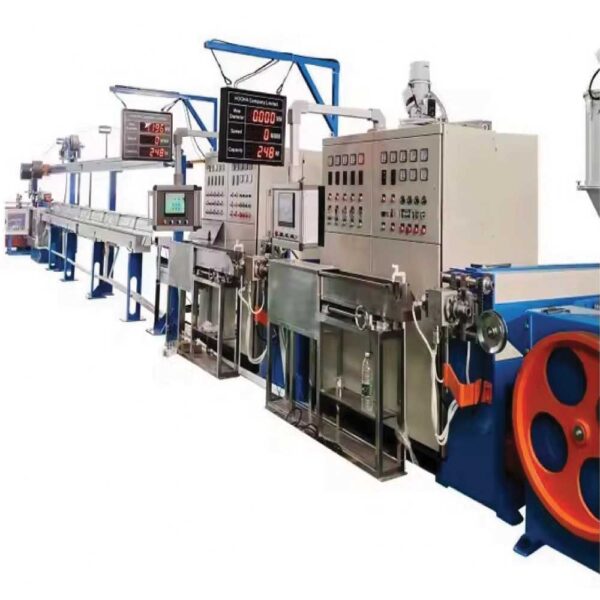

The Parovi Solar Cable Production Line is a state-of-the-art tandem extrusion system designed to meet the demanding requirements of modern solar cable manufacturing.
Equipped with 70mm + 80mm extruders,  Solar Cable Production Line from Parovi Machines supports HFFR and XLPO plasticizing, offering smooth, uniform insulation and sheathing for solar wires.

The system integrates advanced tension dancer control, spark tester, and length counter for precision monitoring and defect-free output. With intelligent temperature regulation and a robust cooling system, this production line delivers reliability and energy efficiency for continuous large-scale cable manufacturing.

Key Features:

Tandem Extruder Configuration (70mm + 80mm): Supports dual-layer insulation or sheathing with HFFR/XLPO materials.

High-Speed Output: Up to 200m/min (depending on cable diameter).

Precision Control: Includes diameter gauge, spark tester, and length counter for real-time monitoring.

Advanced Cooling System: 12m water tank and accumulator ensure optimal temperature management.

Durable Build: Heavy-duty take-up and payoff units (630–1250mm) designed for industrial longevity.

Fully Automated Operation: Intelligent control box and synchronized drives for stable and efficient operation.

Technical Specifications

Parameter Specification
Model 70mm + 80mm TANDEM
Use Material HFFR, XLPO 100%, Plasticizing
Conductor Wire Size 1.5mm² – 6mm²
Finished Wire Diameter 10.0mm – 16.0mm
Production Speed Up to 200m/min (depends on wire diameter)
Center Height 1000mm
Operation Direction From left to right (customizable)
Machine Color As per customer requirement
Voltage 3 Phase, 380V, 50Hz, 5-wire system

Applications:

Solar photovoltaic cable extrusion

High-voltage and UV-resistant cable production

Outdoor renewable energy cable insulation and sheathing

XLPO/HFFR-based energy transmission wire manufacturing
