NC Single/Double Vertical Taping Machine – Φ500 Numerical Control for High-Frequency Data Cables

Rubber Vulcanization Extrusion Line Rubber Vulcanization Extrusion Line – PRV-R-WE Series for Cable Insulation & Jacket Extrusion
NC Single Double Horizontal Taping Machine NC Single/Double Horizontal Taping Machine – PRV-STA-800 for Copper Wires & High-Speed Data Cables

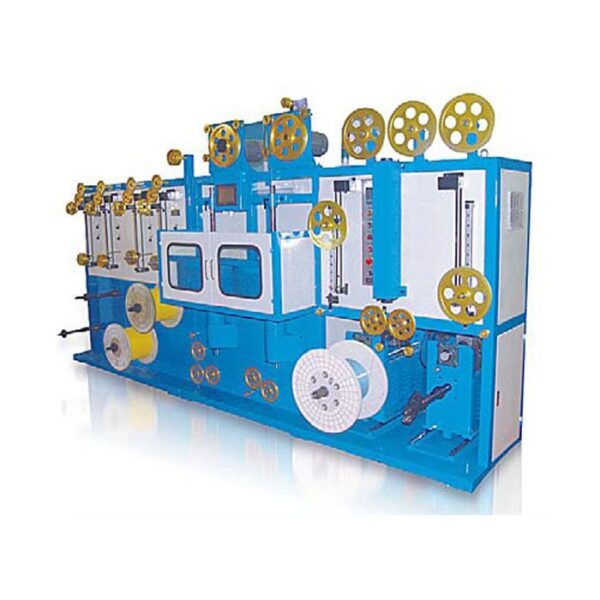

Advanced Φ500 NC Vertical Taping Machine for precision taping of high-frequency cables like HDMI, SATA, and IEEE1394. Supports aluminum foil, mica, and Teflon tapes with inline heating.

Applications:

  • High-Frequency Data Cable Taping (HDMI, SATA, IEEE1394)

  • Inline Heating + Self-Adhesion Process

  • Single or Dual Layer Tape Wrapping

Category: Tags: , , , ,

Description

The Φ500 Numerical Control Vertical Taping Machine is engineered for high-frequency data cable insulation, including DVI, HDMI, SATA, ATA, and IEEE1394. Designed to handle both single and double-layer taping, This Vertical Taping Machine supports advanced inline heating for self-adhesive shrink tapes, making it ideal for precision applications.

With a maximum speed of 2000 rpm and taping rate of 28m/min, This Vertical Taping Machine delivers speed and consistency for high-volume production lines. The constant tension control via load cells and dancer mechanism ensures perfect taping alignment and quality.

The system features a mobile telescopic hot oven with RKC temperature control accurate to ±1°C, enhancing tape adhesion and bonding performance. Its versatility in handling various materials like aluminum foil, cotton paper, transparent tape, mica, and Teflon makes it a must-have for cable manufacturers.

Technical Parameters
Machine Model Ф500 Numerical control type double layer/Single vertical taping machine
Core Specification AWG32-AWG20
Taping Material Aluminum foil tape, Cotton Paper tape, Transparent tape, Mica tape, Teflon tape
Max. rpm MAX2000rpm/MAX28m/min
Power 1HP Motor With Adjustable Speed
Taping Tension Constant taping tension with load cells
Take-up Tension Constant take-up tension with dancer mechanism
Heat Oven Mobile telescopic hot oven, RKC temperature control, temperature tolerance: ± 1 °C
Pay-off Type Shaft-type active take-up
Pay Off Size Ф300-Ф500
Take-Up size Ф400-Ф630
Machine Dimensions 4150 x 1400 x 1900
Machine Weight 2000kg
Key Features:

  • Single or double taping options for custom configurations

  • Ideal for HDMI, SATA, IEEE1394, ATA, and DVI cable production

  • Supports self-adhesive tape processing with heating

  • High-speed operation: Up to 2000 rpm / 28m/min

  • Mobile hot oven with ±1°C accuracy

  • Automatic taping and take-up tension control

  • Materials Supported:

    • Aluminum Foil Tape

    • Cotton Paper Tape

    • Transparent Tape

    • Mica Tape

    • Teflon Tape
