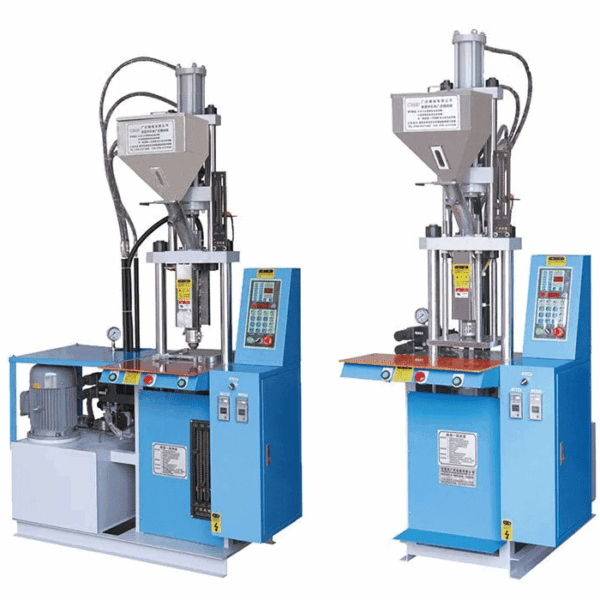

PRV-150 Small Two Column Series

Automation Series PRV-T-H High Speed Injection Molding Machine Automation Series PRV-T-H High Speed Injection Molding Machines
PRV-200/250/350 Small Four Column Series PRV-200/250/350 Small Four Column Series

Models :

PRV-150, PRV-150 2S

Features:

• Machine vertical locking mould and vertical injection, are suitable for the common electric appliance plugs, electronic components and small cavity products.
• Three-section the temperature controls, speed controls and back pressure control. Suits components of the precise parting.
• The fast locking mould system with low-pressure closing locks the mould exceptionally safe. After mould is locked, then automatically increases the locking pressure. This special safe design functions as a protection against mould.
• The Mould is a fixed or removable type. The injection has good spread and localization in the mould. The end product has the fluid release to leave the cavity, the end product comes out extremely controlled.
• The electrical fittings and hydraulic pressure fitting used are best in the class and popular brands with good durability and low noise.
• Locking mould strength 15TON-35TON, has PLC to program the electrical controls. PLC’s single-place operation can control entire functions. The proportion/ratio of force to flow have three-segmented controls.
• May adopt mould as 1 Side operation or with double mould for 2 side operation. The operator is more convenient in production and safer.

Category:

Description

Technical Parameters

Injection Unit Unit PRV-150 PRV-150 2S
Screw Diameter mm ø22 ø26 ø22 ø26
Injection Pressure kgf/cm3 1625 1164 1625 1164
Injection Capacity cm3 34 47 34 47
Injection Weight gr 39 55 39 55
oz 1.4 1.9 1.4 1.9
Injection Rate cc/s 28 39 28 39
Screw Speed r.p.m 0-150 0-150
Screw Rotation mm 90 90
Nozzle Stroke mm – 120
Nozzle Contact Force tf – -2.4
Clamping System Hydraulic Hydraulic Hydraulic Hydraulic
Clamping Force tf 15 15 15 15
Clamping Stroke mm 200 200 200 200
Max. Mould Space mm 240 240 240 240
Min Mould Height mm 40 40 40 40
Overall Size of Platens (HXV) mm – – – –
Space Between Columns (HXV) mm 280 280 280 280
Hydroulic Ejecter Force tf 0.7 0.7 0.7 0.7
Ejector Stroke mm 28 28 28 28
Electrical Equipment and Ceneral
Drive Motor kw 2.2(3HP) 2.2(3HP) 2.2(3HP) 2.2(3HP)
Heater kw 2 2 2 2
Dimention of Machine(LXMWXH) m 1.2 X 0.9 X 2.3 1.2 X 0.9 X 2.3 1.2 X 0.9 X 2.3 1.2 X 0.9 X 2.3
Weight of Machine t 0.6 0.6 0.6 0.6
Shipping Size m 1.4 X 1.1 X 2.25 1.4 X 1.1 X 2.25 1.4 X 1.1 X 2.25 1.4 X 1.1 X 2.25
Shipping Weight t 0.75 0.75 0.75 0.75
Oil Tank Capacity l 90 90 90 90
Cooling Water l/hr 400-600 400-600 400-600 400-600

PVR-150

Injection Unit Unit PRV-150
Screw Diameter mm ø22 ø26
Injection Pressure kgf/cm3 1625 1164
Injection Capacity cm3 34 47
Injection Weight gr 39 55
oz 1.4 1.9
Injection Rate cc/s 28 39
Screw Speed r.p.m 0-150
Screw Rotation mm 90
Nozzle Stroke mm –
Nozzle Contact Force tf –
Clamping System Hydraulic Hydraulic
Clamping Force tf 15 15
Clamping Stroke mm 200 200
Max. Mould Space mm 240 240
Min Mould Height mm 40 40
Overall Size of Platens (HXV) mm – –
Space Between Columns (HXV) mm 280 280
Hydraulic Ejector Force tf 0.7 0.7
Ejector Stroke mm 28 28
Electrical Equipment and Ceneral
Drive Motor kw 2.2(3HP) 2.2(3HP)
Heater kw 2 2
Dimension of Machine(LXMWXH) m 1.2 X 0.9 X 2.3 1.2 X 0.9 X 2.3
Weight of Machine t 0.6 0.6
Shipping Size m 1.4 X 1.1 X 2.25 1.4 X 1.1 X 2.25
Shipping Weight t 0.75 0.75
Oil Tank Capacity l 90 90
Cooling Water l/hr 400-600 400-600

PVR-150 2S

Injection Unit Unit PRV-150 2S
Screw Diameter mm ø22 ø26
Injection Pressure kgf/cm3 1625 1164
Injection Capacity cm3 34 47
Injection Weight gr 39 55
oz 1.4 1.9
Injection Rate cc/s 28 39
Screw Speed r.p.m 0-150
Screw Rotation mm 90
Nozzle Stroke mm 120
Nozzle Contact Force tf -2.4
Clamping System Hydraulic Hydraulic
Clamping Force tf 15 15
Clamping Stroke mm 200 200
Max. Mould Space mm 240 240
Min Mould Height mm 40 40
Overall Size of Platens (HXV) mm – –
Space Between Columns (HXV) mm 280 280
Hydroulic Ejecter Force tf 0.7 0.7
Ejector Stroke mm 28 28
Electrical Equipment and Ceneral
Drive Motor kw 2.2(3HP) 2.2(3HP)
Heater kw 2 2
Dimention of Machine(LXMWXH) m 1.2 X 0.9 X 2.3 1.2 X 0.9 X 2.3
Weight of Machine t 0.6 0.6
Shipping Size m 1.4 X 1.1 X 2.25 1.4 X 1.1 X 2.25
Shipping Weight t 0.75 0.75
Oil Tank Capacity l 90 90
Cooling Water l/hr 400-600 400-600
