Experience high-speed fine wire production with the Horizontal Fine Wire Drawing Machine 24DHA/24DHB, featuring automatic tension control, dual inverter system, and 20–25% energy savings.

Features of Horizontal Fine Wire Drawing Machine – 24DHA/24DHB
  • Automatic tension control by DC or dual inverter.
  • Zero slip pilot design, high productivity; good quality finished wire.
  • Low power consumption, a reduction of 20-25% compared to the traditional type of machine.

Category:

Description

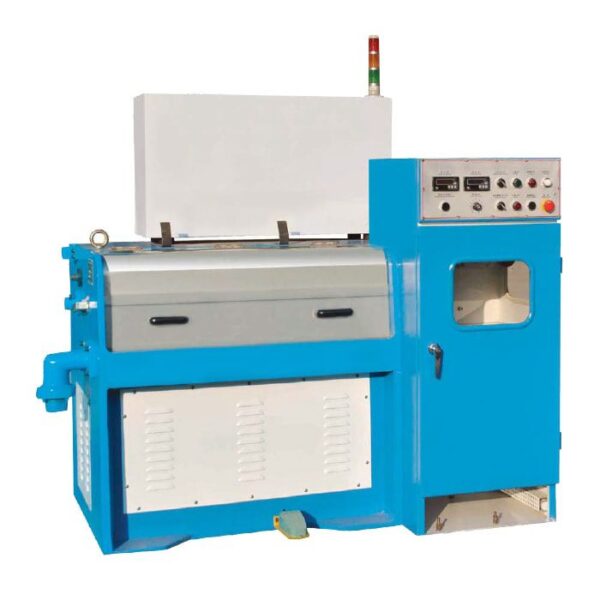

Horizontal Fine Wire Drawing Machine – 24DHA/24DHB | High-Precision, Energy-Saving, High-Speed

The 24DHA/24DHB Horizontal Fine Wire Drawing Machines are engineered for precision, speed, and efficiency. Designed with automatic tension control via dual inverter technology and an advanced flat belt drive, these machines deliver ultra-smooth, high-quality wire output. Benefit from a zero-slip pilot design that boosts productivity while reducing power consumption by 20–25% compared to traditional wire drawing machines.

Ideal for a wide range of fine wire applications, this model offers a maximum line speed of 2500 meters per minute, handling input wire diameters from Ø0.5–1.2mm and finishing down to Ø0.08–0.32mm.

Key Features:

  • High-efficiency dual inverter control system.

  • Maximum production speed of 2500m/min.

  • Wire inlet: Ø0.5 – 1.2mm; Wire outlet: Ø0.08 – 0.32mm.

  • Monoblock cast body for stable, durable operation.

  • High-quality ceramic (24DHA) and ceramic plasma (24DHB) capstan coatings.

  • Automatic tension control with weight type tension pulleys.

  • Advanced flat belt drive for consistent performance.

  • Zero-slip pilot design for better surface quality and wire uniformity.

  • Energy-efficient design reduces power usage by up to 25%.

  • Compact footprint with dimensions of 2.67 × 1.6 × 1.95 meters.

Technical Parameters
Type 24DHA 24DHB
Power Control Dual Inverter Dual Inverter
Input Wire Ø0.5-1.2mm Ø 0.5-1.2mm
Output Wire Ø 0.08-0.32mm Ø 0.08-0.32mm
Maximum Line Speed 2500M/min 2500M/min
Mechanical Elongation 15%+8.7% 13%+8.7%
Construction of the Machine Body Casting Monoblock Casting Monoblock Casting
Drawing capstan High-quality ceramic Ceramic plasma
Final capstan Ø206 Ø206
Take-up reel Ø300xØ215×250 Ø300xØ215×250
Traverse unit Flat belt Flat belt
Drawing /take-up motor AC11kw/AC4kw AC11kw/AC4kw
Drive Advanced flat belt drive Advanced flat belt drive
Tension adjustment Weight type tension pulley Weight type tension pulley
Tension adjustment Weight type tension pulley Weight type tension pulley
Maximum copper load 50Kg 50Kg
Power supply 415V/50Hz 415V/50Hz
Lubricant Capacity 40L/min 40L/min
Lubrication of wire drawing Spray type Spray type
Brake Magnetic brake Magnetic brake
Dimensions (lxwxh) 2.67 x 1.6 x 1.95M 2.67 x 1.6 x 1.95M
Weight 2000 kg 2000 kg
