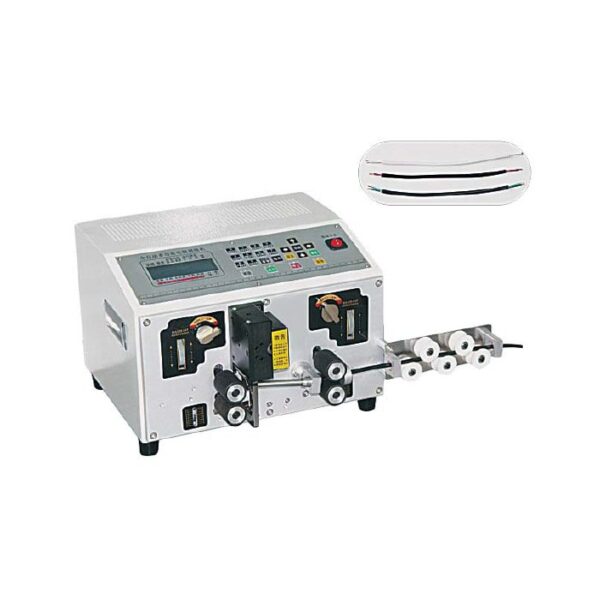

PVC Cable Cutting and Stripping Machine – PRV-CS-360

Wire and Cable Cutting and Stripping Machine-Parovi Machines Wire and Cable Cutting and Stripping Machine – PRV-CS-340 with Copper Twisting
Wire Insulation Cutting and Stripping Machine (PRV-CS-380) Wire Insulation Cutting and Stripping Machine – PRV-CS-380

A compact high-speed PVC cable cutting and stripping machine built for precision processing of shielded wires, electronic cables, and data lines. Suitable for cable sizes from 1 mm to 6 mm.

Features

High-speed wire cutting & stripping machine for electronic cables, data cables, Shielded cables, etc.

Applications:

  • PVC cable assembly

  • Data and communication wire stripping

  • Shielded cable preparation

  • Electrical component manufacturing

  • Appliance wiring harness setups

Category: Tags: , , , , ,

Description

The PRV-CS-360 PVC Cable Cutting and Stripping Machine is engineered for high-speed, accurate processing of shielded wires, electronic cables, and data lines. Supporting a cutting length of up to 99,999.9 mm, it offers efficient insulation removal and clean wire cuts even in high-volume production environments.

With the optional roller movement function, this machine allows head stripping up to 200 mm and tail stripping up to 80 mm, ensuring greater flexibility for a wide range of cable types. Its compact design, weighing only 38 kg, makes it an ideal fit for modern wire harness production lines.

Designed to handle PVC cables from 1 mm to 6 mm, the PRV-CS-360 features 4-wheel drive technology, enabling smooth, consistent wire feed and higher throughput. Whether you’re working with shielded cables or general-purpose wires, this PVC cable cutting and stripping machine delivers consistent and reliable performance.

Technical Parameters
MODEL PRV-CS-360
Cutting Length 1 mm ~ 99999.9 mm
Stripping Length Head 1 mm ~ 80 mm, Tail 1 ~ 50 mm
Stripping Length with Roller Movement Function (Optional) Head 1 ~ 200 mm Tail 1 ~ 80 mm
Twisting length N/A
Cable Size 1 ~ 6 mm
Tool Material  Steel
Size of Machine 570 x 280 x 410 mm
Weight of Machine 38 Kg
Power 220 V 50 Hz
Type of Drive 4 Wheel Drive
Production 2000 ~ 3000 Pcs. / Hr.
Key Features:

  • High-speed PVC cable cutting and stripping machine for versatile cable applications

  • Accurate cutting range: 1 mm to 99,999.9 mm

  • Stripping options with and without roller movement

  • Compatible with cable sizes: 1 mm ~ 6 mm

  • Compact design with durable steel tool material

  • High production speed: 2000 ~ 3000 pieces/hour
