DOUBLE DECKER TRIPLE LAYER EXTRUSION LINE – PRV 90+60+70+50 mm

Solar Cable Production Line Solar Cable Production Line – 70mm + 80mm Tandem Extrusion Line

Advanced Double Decker Triple Layer Extrusion Line designed to deliver double production in half the floor space. With dual-layer operation and a maximum line speed of 500 × 2 m/min, this system ensures ultra-high efficiency for PVC/PE insulation and sheathing of cables from 1.2 mm to 10 mm. Equipped with 4 extruders, precision temperature control, PLC automation, and automatic dual-spool take-up.

Category: Tags: , , , , ,

Description

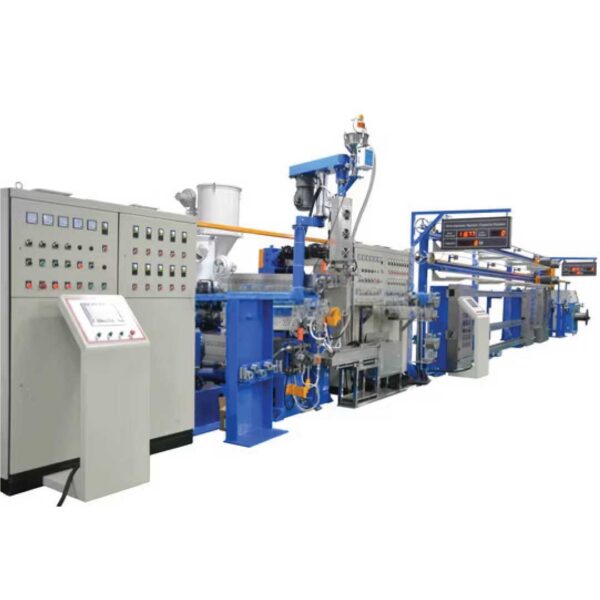

The Double Decker Triple Layer Extrusion Line – PRV 90+60+70+50 mm is built for manufacturers who need maximum output with minimum floor space. Its unique dual-deck engineering enables two simultaneous production layers, effectively delivering Double Production in Half the Space.

Double Decker Triple Layer Extrusion Line is Powered by four extruders—Φ90, Φ60 (upper deck) and Φ70, Φ50 (lower deck)—this system supports triple-layer structures including insulation, skin, stripe, and sheathing.

With a remarkable maximum speed of 500 × 2 m/min, this extrusion line is one of the fastest in its class, suitable for high-speed production of building wires, automotive cables, house wires, and multi-core industrial cables.

Engineered with high-torque gearboxes, alloy screws, Taiwan Yangmin PID controls, and Inovance AC drives, the system ensures stability, concentricity, and excellent surface finish at all speeds.

Ideal for large-scale cable plants, this system reduces manpower, increases production efficiency, and optimizes factory space utilization.

Key Features :

Half Space – Double Production

  • Unique double-decker layout doubles output without expanding floor space.

Max Speed: 500 × 2 m/min

  • Two independent decks deliver 500 m/min each — 1000 m/min combined capacity.

 Triple-Layer Extrusion Capability

  • Supports insulation + skin + sheathing + stripe.

 Four High-Capacity Extruders

  • Upper Deck: Φ90 (280 kg/hr) + Φ60 (120 kg/hr)

  • Lower Deck: Φ70 (140 kg/hr) + Φ50 (50 kg/hr)

Precision U10 Self-Centering Heads

  • Ensures perfect concentricity and uniform insulation thickness.

Fully Automatic Dual-Spool Take-Up

  • Supports Φ630–Φ1250 mm bobbins.

Advanced Control System

  • PLC panel with real-time monitoring, Inovance drives, and Yangmin PID controllers.

Industrial Build Quality

  • NSK bearings, hardened alloy screws, robust gearboxes, and reliable cooling systems.

Technical Specifications – Double Decker Triple Layer Extrusion Line

Parameter Specification
Production Efficiency Half Space – Double Production
Max Line Speed 500 × 2 m/min (dual deck)
Extrusion Type Double Decker Triple Layer
Applicable Materials PVC / PE
Finished Cable Diameter Φ1.2 – Φ10 mm
Extruder Set Upper Deck: Φ90 + Φ60
Lower Deck: Φ70 + Φ50
Extrusion Output Φ90 – 280 kg/hr
Φ70 – 140 kg/hr
Φ60 – 120 kg/hr
Φ50 – 50 kg/hr
Cooling System 12m fixed + 1.5m movable tank
Control System PLC + Yangmin PID + Inovance drives
Take-Up System Automatic dual-spool (Φ630–Φ1250 mm)
Line Length 25 m



Applications:

  • Building wire

  • House wiring

  • Control & instrumentation cable

  • Automotive cables

  • PVC/PE insulation & sheathing

  • Multi-layer cable structures
