Circular Shape Automatic Wrapping Machine – High-Speed Coil Packaging System

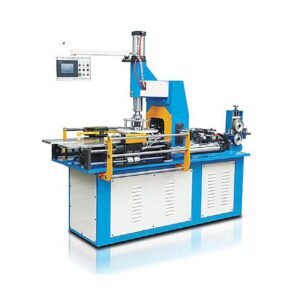

Micro Computer Coiling Machine Micro Computer Coiling Machine – Automatic Wire Coiler with PLC & Servo Control

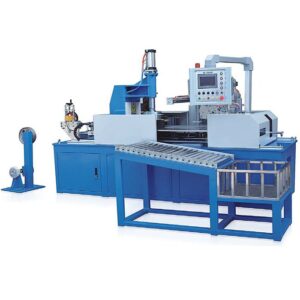

Automatic PLC Coiling Wrapping Machine Automatic PLC Coiling Wrapping Machine – High-Speed Wire Coiling & Packaging System

Circular Shape Automatic Wrapping Machine for high-speed PVC, PE, and paper coil packaging. Supports up to 35 tons load capacity with touchscreen controls and 99 preset programs.

Applications:

  • Industrial cable coil wrapping

  • High-volume cable packaging operations

  • Electrical wire and heavy-duty conductor processing

  • Film-based protective coil wrapping for logistics

Features:
  • High speed coil wrapping with PVC, PE film, PP woen band or paper.
  • Screen touch graphic operation terminal makes it easy to operate.
  • The 4 arms carrier, driven by DC motor, turns the coil smoothly for wrapping.
  • Can input and keep 99 types of coil wrapping data in the PLC memory.

Category: Tags: , , , ,

Description

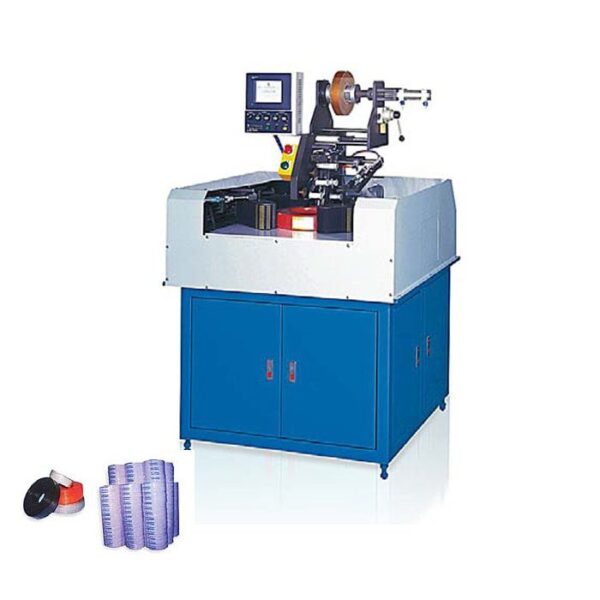

The Circular Shape Automatic Wrapping Machine is an advanced coil packaging solution designed for heavy-duty cable wrapping applications. Compatible with PVC, PE film, PP woven band, or kraft paper, this machine supports wrapping of large-diameter coils with ease and consistency.

Circular Shape Automatic Wrapping Machine is equipped with a 4-arm rotating carrier driven by a DC motor, it ensures smooth and uniform coil turning, enhancing the quality of the wrap. A touchscreen graphic interface simplifies operation and allows the user to program and store up to 99 types of coil wrapping configurations in the integrated PLC system.

Circular Shape Automatic Wrapping Machine is available in multiple models ranging from PRV-1250 to PRV-5000, supporting drum sizes up to PN5000 and cable diameters up to 150mm. Circular Shape Automatic Wrapping Machine is ideal for cable manufacturers needing high-speed, automated coil packaging with robust performance and customization.

Key Features:

  • Wrap Materials: PVC, PE film, PP woven band, kraft paper

  • Touchscreen Graphic Operation Terminal

  • 4-arm coil rotation system for stable wrapping

  • 99 programmable coil wrapping profiles via PLC

  • High-speed operation with DC motor drive

Technical Parameters
Machine Model PRV-1250 PRV-1600 PRV-2000 PRV-2500 PRV-3150 PRV-3500 PRV-4200 PRV-4500 PRV-5000
Drum size PN800-
PN1250		 PN800-
PN1600		 PN1000-
PN2000		 PN1600-
PN2500		 PN1600-
PN3150		 PN2000-
PN3500		 PN2000-
PN4200		 PN2500-
PN4500		 PN3000-
PN5000
Coil width 600-950 600-1180 750-1500 1180-1900 1180-2300 1500-2300 1500-2400 1900-2500 1900-2500
Cable diameter ≤25 ≤35 ≤25 ≤45 ≤80 ≤100 ≤120 ≤120 ≤150
Max Load Capacity 4T 5T 10T 12T 18T 20T 25T 30T 35T
Speed(rpm) 18.8-47.6 18.8-47.6 6.2-25.6 4.9-20.6 3.3-13.8 3.3-13.8 3.3-13.8 3.3-13.8 3.3-13.8
Motor size 1.1 1.1 5.5 5.5 7.5 7.5 11 11 18.5
