USB Data Cable Tester | High-Speed 128/256 Point Testing with Hipot, Resistance & Insulation Check

Precision USB Cable Tester with high-speed measurement, 128/256 test points, Hipot up to 1000V AC, insulation & resistance resolution, and pass/fail indicators for rapid cable diagnostics.

Applications:

USB Cable Manufacturing & QA
Electronic Repair Labs
Assembly Line Cable Testing
High-Volume USB Harness Inspection
Educational & Technical Institutes for Electrical Testing Training

Category: Measuring and Testing Machines

Description

Description

The USB Cable Tester is a compact, high-accuracy diagnostic tool designed for testing USB cables and multi-wire connections. With a basic accuracy of ±5% and ultra-fast 0.1 second measurement speed, this tester ensures quick, reliable performance in cable production, quality assurance, and repair operations.

Featuring 128 or 256 test points, it can efficiently analyze complex cable layouts. The test signal level of 5VDC ±5% simulates real operational conditions, while the Hipot function (100–1000VAC ±1%) provides comprehensive safety assurance. For detailed evaluation, the system offers insulation and resistance resolution on the 8681 model, enabling detection of even subtle faults.

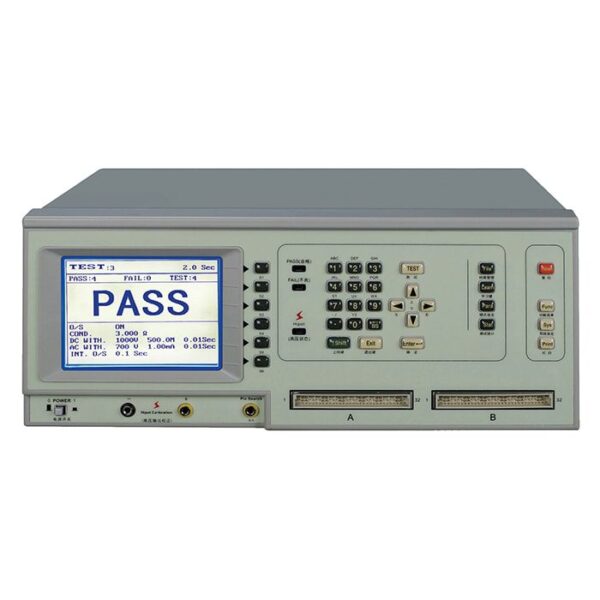

Its 320×240 graphic LCD delivers sharp visual feedback, accompanied by pass/fail LED indicators and an internal speaker for audible status alerts. Auto pin-search jack, Hipot calibration, and user-friendly front panel keys make it ideal for high-volume environments.

Technical Parameters

Name	USB Cable Tester
Basic Accuracy	±5%
Measurement Speed	0.1Sec Basic
Test Signal
Test Signal Level	5Vdc ±5%
Insulation	Resolution (8681 only)
Resistance	Resolution (8681 only)
Hipot	100 – 1000Vac ±1%, 50V Resolution
Display & Sound	320×240 Graphic LCD Display
	Pass/Fall LED Indicator Internal Speaker
	Internal Speaker
Connections	128 Test Points
	256 Points
	Hipot Calibration +/- Output
	Auto Pin-Search Jack
Front Panel Control Buttons	SysKey/ FastKey/ EditKey/ SoftKey
