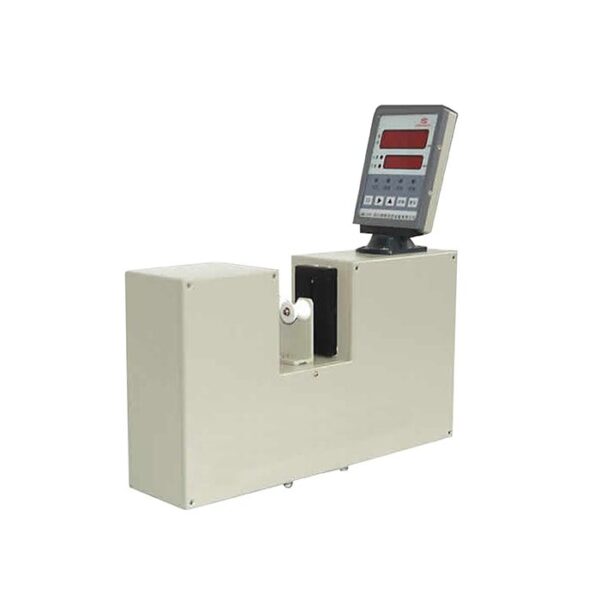

Laser Diameter Controller – Single Axis | Precision Measurement (0.1–30 mm)

Description

For operations that demand reliable and accurate diameter measurements, the Laser Diameter Controller Single Axis is your go-to solution. Whether you’re in cable production, extrusion lines, or lab testing, Laser Diameter Controller Single Axis system is engineered to deliver results with consistent precision.

With a measurement range of 0.1 mm to 30 mm and ±0.002 mm accuracy, Laser Diameter Controller Single Axis ensures that even the smallest variations are caught instantly. Thanks to a scanning speed of 600 T/second, Laser Diameter Controller Single Axis offers real-time monitoring that enhances process control and reduces material wastage.

Housed in a rugged 17 kg unit, this machine performs efficiently in harsh factory conditions—handling temperatures up to 50°C with ease. Powered by a standard AC 220V, it’s simple to integrate into existing setups without hassle.

Technical Parameters

Name	Laser Diameter Controller Single axis
Measurement Range	0.1-30 mm
Measurement Precision	± 0.002 mm
Scanning Speed	600 T/Second
Exterior Dimension	377X211X98(mm)
Weight Including The Tripod	17 kg
Working Voltage	AC 220V
Ambient Temperature	Under 50º C

Key Benefits:

• Wide Measurement Range: 0.1–30 mm for versatile industrial applications

• High Accuracy: ±0.002 mm for consistent quality control

• Fast Scanning Rate: 600 scans per second ensures real-time response

• Built for Industry: Rugged build with 17 kg weight and solid external frame

• Easy Integration: Runs on standard 220V AC with minimal setup time
