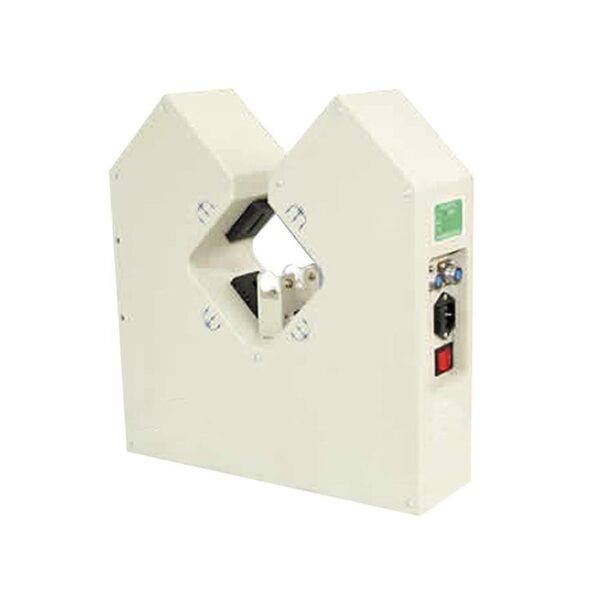

Laser Diameter Controller Dual Axis
Laser Diameter Controller Dual Axis

Laser Diameter Controller – Dual Axis | Ultra-Precise Diameter Measurement (0.1–20 mm)

Laser Diameter Controller Single Axis Laser Diameter Controller – Single Axis | Precision Measurement (0.1–30 mm)
Dual-Axis Superfine Laser Diameter Controller Dual-Axis Superfine Laser Diameter Controller – Ultra-Precise 0.1–10 mm Measurement Tool

Experience ultra-precise, real-time diameter measurement with the Dual Axis Laser Diameter Controller. With ±0.001 mm accuracy and 600 T/s scanning speed, it’s built for high-performance industrial applications.

Application

  • Wire & Cable Production Lines

  • Plastic & Rubber Extrusion

  • Medical Tubing Measurement

  • Automotive & Aerospace Component Inspection

  • Real-Time Production Monitoring Systems

Category:

Description

The Laser Diameter Controller Dual Axis sets a new standard in industrial measurement. Designed for applications that require maximum precision and stability, this advanced unit ensures non-contact, dual-axis laser scanning for superior accuracy and consistency in diameter measurement.

Covering a measurement range from 0.1 mm to 20 mm, it offers ±0.001 mm precision—ideal for high-value processes such as wire extrusion, tubing inspection, and cable production. With a rapid scanning speed of 600 T/Second, real-time monitoring becomes effortless and effective.

Its durable 20 kg build, engineered for harsh environments, comes with a compact footprint that integrates easily into your production line. Powered by AC 220V, the unit can operate comfortably in environments up to 50°C.

Technical Parameters
Name Laser Diameter Controller Dual axis
Measurement Range 0.1-20 mm
Measurement Precision ± 0.001 mm
Scanning Speed 600 T/Second
Exterior Dimension 356X106X372(mm)
Weight Including The Tripod 20 kg
Working Voltage AC 220V
Ambient Temperature Under 50º C
Key Features & Benefits:

  • Wide Range: 0.1 mm – 20 mm, suitable for most fine industrial materials

  • Exceptional Accuracy: ±0.001 mm for tightest quality control

  • High-Speed Scanning: 600 scans per second for real-time responsiveness

  • Dual-Axis Technology: Ensures symmetrical and precise diameter measurement

  • Compact & Durable: Industrial-grade 20 kg build with 356 × 106 × 372 mm dimensions

  • Plug & Play: Runs on standard AC 220V – no special setup needed
