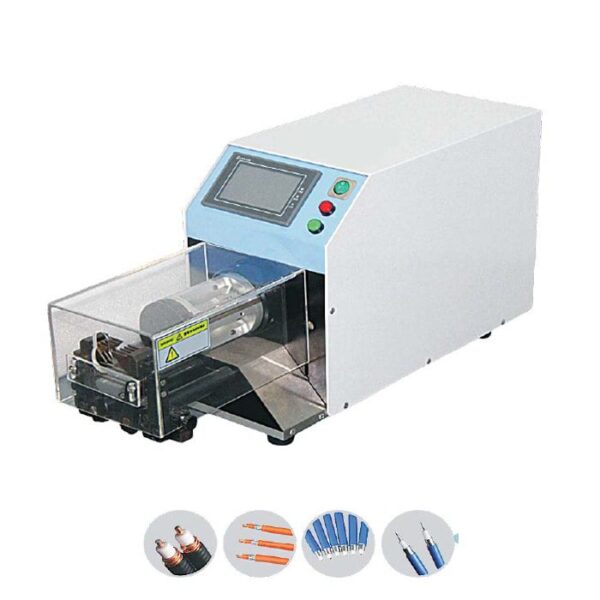

Semi Automatic Coaxial Cable Stripping Machine
Semi Automatic Coaxial Cable Stripping Machine

Semi Automatic Coaxial Cable Stripping Machine

Ipex Crimping Machines Ipex Crimping Machines
Automatic Flap Type Lable Sticking Machine Automatic Flap Type Lable Sticking Machine

Application

Semi-Automatic Coaxial Cable Stripping Machines

Features

• Suitable for different types of semi-flexible and flexible Co-axial cables, Medical Wires, and Data and communication cables. Stips
smoothly without damaging the conductors
• HMI operations, Max 9 Layers of striping with 99 memory functions
• Rotational Blade Head with 4 blades for stable stripping
• Tungsten Steel Blades with titanium coating alloy for best sharpness and durability
• Servo Motor System, Precision Ball screw, and multi-point movement control system.
• Multi-Section Stripping function, Stripping and twisting function, Automatic Start in succession function

Category:

Description

Technical Parameters
MODEL PRV-WP-6806 PRV-WP-6806D PRV-WP-8608 PRV-WP-2515 PRV-WP-2520 PRV-WP-3515 PRV-WP-4520
Wire Diameter 0.81 ~ 6.99 mm 1.5 ~ 9.5 mm 3.0 ~ 18 mm 3.0 ~ 25 mm 3.0 ~ 25 mm 5.0 ~ 35 mm 5.0 ~ 35 mm
Cutting Depth 0.01 mm 0.01 mm 0.01 mm 0.01 mm 0.01 mm 0.01 mm 0.01 mm
Speed (pcs/Hr) 700 ~ 1200 700 ~ 1200 400 ~ 800 300 ~ 800 300 ~ 800 200 ~ 500 200 ~ 500
Max. Stripping Length 48 mm 65 mm 90 mm 150 mm 200 mm 120 mm 200 mm
Max. Stripping Layers 17 Kg. 24 Kg. 30 Kg. 60 Kg. 55 Kg. 300mm 150mm
Dimensions (mm) 9 layers 9 layers 9 layers 9 layers 9 layers 9 layers 9 layers
Weight 24 Kg 25 Kg 40 Kg 45 Kg 50 Kg 60 Kg 70 Kg
Power Supply AC 220 V 50 Hz AC 220 V 50 Hz AC 220 V 50 Hz AC 220 V 50 Hz AC 220 V 50 Hz AC 220 V 50 Hz AC 220 V 50 Hz
Power Rating 400 W 400 W 550 W 630 W 800 W 1000 W 1000 W

PRV-WP-6806

Technical Parameters
MODEL PRV-WP-6806
Wire Diameter 0.81 ~ 6.99 mm
Cutting Depth 0.01 mm
Speed (pcs/Hr) 700 ~ 1200
Max. Stripping Length 48 mm
Max. Stripping Layers 17 Kg.
Dimensions (mm) 9 layers
Weight 24 Kg
Power Supply AC 220 V 50 Hz
Power Rating 400 W

PRV-WP-6806D

Technical Parameters
MODEL PRV-WP-6806D
Wire Diameter 1.5 ~ 9.5 mm
Cutting Depth 0.01 mm
Speed (pcs/Hr) 700 ~ 1200
Max. Stripping Length 65 mm
Max. Stripping Layers 24 Kg.
Dimensions (mm) 9 layers
Weight 25 Kg
Power Supply AC 220 V 50 Hz
Power Rating 400 W

PRV-WP-8608

Technical Parameters
MODEL PRV-WP-8608
Wire Diameter 3.0 ~ 18 mm
Cutting Depth 0.01 mm
Speed (pcs/Hr) 400 ~ 800
Max. Stripping Length 90 mm
Max. Stripping Layers 30 Kg.
Dimensions (mm) 9 layers
Weight 40 Kg
Power Supply AC 220 V 50 Hz
Power Rating 550 W

PRV-WP-2515

Technical Parameters
MODEL PRV-WP-2515
Wire Diameter 3.0 ~ 25 mm
Cutting Depth 0.01 mm
Speed (pcs/Hr) 300 ~ 800
Max. Stripping Length 150 mm
Max. Stripping Layers 60 Kg.
Dimensions (mm) 9 layers
Weight 45 Kg
Power Supply AC 220 V 50 Hz
Power Rating 630 W

PRV-WP-2520

Technical Parameters
MODEL PRV-WP-2520
Wire Diameter 3.0 ~ 25 mm
Cutting Depth 0.01 mm
Speed (pcs/Hr) 300 ~ 800
Max. Stripping Length 200 mm
Max. Stripping Layers 55 Kg.
Dimensions (mm) 9 layers
Weight 50 Kg 60 Kg 70 Kg
Power Supply AC 220 V 50 Hz
Power Rating 800 W 1000 W 1000 W

PRV-WP-3515

Technical Parameters
MODEL PRV-WP-3515
Wire Diameter 5.0 ~ 35 mm
Cutting Depth 0.01 mm
Speed (pcs/Hr) 200 ~ 500
Max. Stripping Length 120 mm
Max. Stripping Layers 300mm
Dimensions (mm) 9 layers
Weight 60 Kg
Power Supply AC 220 V 50 Hz
Power Rating 1000 W

PRV-WP-4520

Technical Parameters
MODEL PRV-WP-4520
Wire Diameter 5.0 ~ 35 mm
Cutting Depth 0.01 mm
Speed (pcs/Hr) 200 ~ 500
Max. Stripping Length 200 mm
Max. Stripping Layers 150mm
Dimensions (mm) 9 layers
Weight 70 Kg
Power Supply AC 220 V 50 Hz
Power Rating 1000 W
