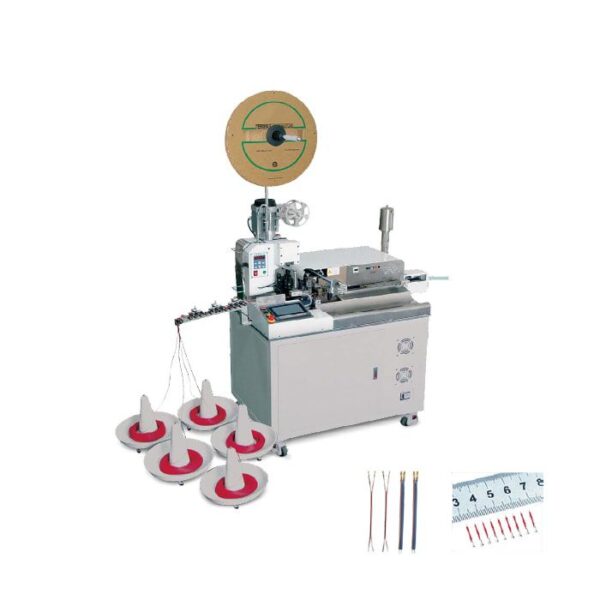

Automatic Crimping and Tinning Machine
Automatic Crimping and Tinning Machine

Automatic Crimping and Tinning Machine

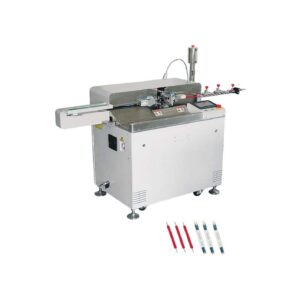

Double End Tinning Machine Double End Tinning Machine

Application

Automatic Wire Cutting, Stripping, Crimping & Tinning Up to 5 wires simultaneously

Features

  • 5 Wires simultaneously
  • KINKO 7 inches Operating Touch Screen (HMI)
  • SMC Pneumatic
  • Omron Temperature Controller
  • MITSUBISHI Servo System
  • Hi-WIN Taiwan linear guides & ball screw
  • SMC Air Detectors

Category:

Description

Technical Parameters

MODEL PRV-WP-5505 Auto Crimping & Tinning Machine
Power 50/60 Hz Single phase AC 220V
Function Cutting, both ends full/ half stripping, Single end crimping, Single end twisting, Single end Tinning
Production Rate 6000 ~ 8000 Pcs./Hr
Applicable wire AWG #24 ~ AWG #18, AWG #24 ~ AWG #32
Cutting Length 30 ~ 550 mm (minimum can be modified to 8mm)
Cutting Tolerance ± 0.2 mm
Stripping length 0 ~ 9 mm
Twist Length 3 ~ 9 mm
Tinning Length 0.5 ~ 9 mm
Air Supply Required 0.5 ~ 7 MPA
Size 1210 x 770 x 1370 mm
Weight 450 kg approx.
