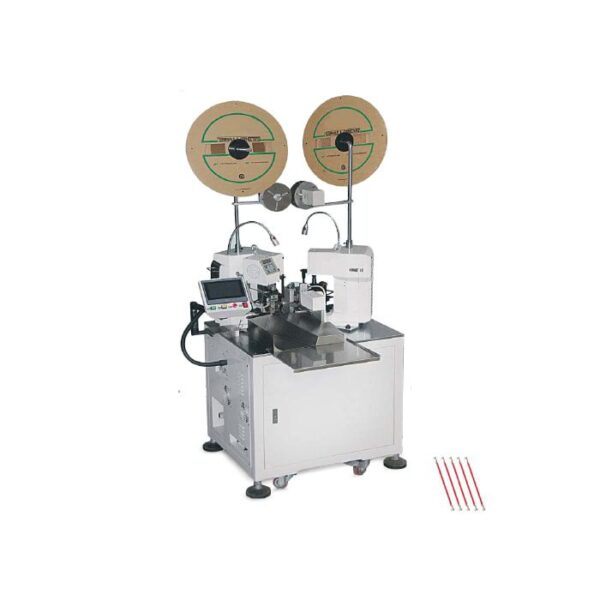

Double End Auto Crimping Machine
Double End Auto Crimping Machine

Double End Auto Crimping Machine

Double End Tinning Machine Double End Tinning Machine
Single End Crimping and Back End Twisting Machine Single End Crimping and Back End Twisting Machine

Application

Automatic Wire Cutting, Stripping & Both End Tinning Machine Up to 8 Wires Simultaneously

Features

  • Programmable Length
  • Half Strip can be done
  • KINCO 7 Inches Touch Screen ( HMI )
  • AIRTEK Pneumatic Cylinders
  • Single Chip Microprocessor Control System
  • Taiwan Hi-Win Linear Bearings & PHT Gear Box
  • Keyence & Omron Sensors
  • Back Crimping suitable for OTP Side feeding or back Feeding Applicator

Category:

Description

Technical Parameters

MODEL PRV-WP-01 Double End Auto Crimping Machine
Display Mode LCD Display
Power Source 50/60 Hz Single phase AC 220 V
Power 2000 W
Function Cutting, Both Ends Crimping
Production Speed 4300 pcs/ hr for 100 mm length
Wire Range AWG # 14 ~ AWG # 32 ( depending on Wire Hardness )
Cutting Length 1 ~ 9999 mm
Cutting Tolerance +- 0.2 mm
Swing Arm Mode Motor Brake
Suitable Wire Electronic Wire
Suitable Terminal Continous Chain Type
Tool Material Tungsten Steel
Wire Adjustment Variable
Transmission Structure Precision Screw , Slide Reducer
Terminal Machine Tilted Head Electric Clutch
Crimping Force 2 Tons
Machine Weight 350 Kgs Appx
Auxiliary Devices Waste Winding Machine, Terminal Scrap Cutting device
