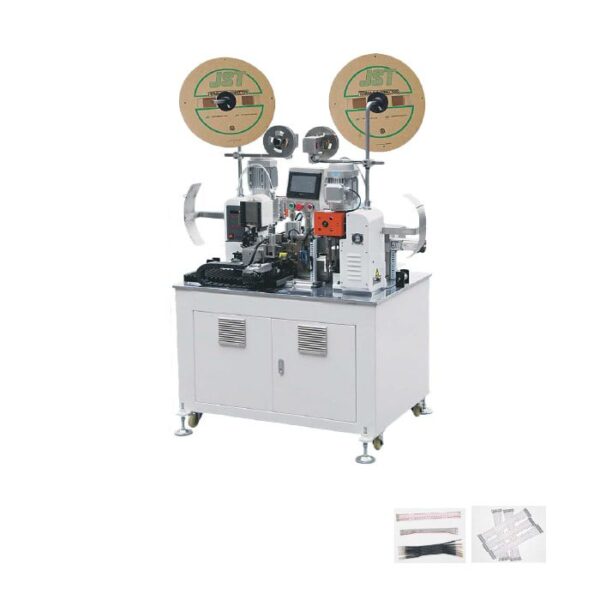

Automatic Ribbon Wire Crimping Machine
Automatic Ribbon Wire Crimping Machine

Automatic Ribbon Wire Crimping Machine

Single End Crimping and Back End Twisting Machine Single End Crimping and Back End Twisting Machine
High Speed Wire Cutting and Stripping Machine (PRV-WP-950) High Speed Wire Cutting and Stripping Machine (PRV-WP-950)

Application

Automatic Cutting Stripping & Double End Crimping Machine for Ribbon Wires

Features

• Consists Panasonic Motors and Servo Drives to achieve Precision,
Speed and Stability
• Touch Screen to control Length and Crimping Controls
• Very easy and fast Parameters adjustment to change to new wire sizes
• Applicator Models PH, XH, ZH SCN, SM, and VH are suitable
• 24 hours workable

Category:

Description

Technical Parameters

MODEL PRV-WP-SP20 Automatic Ribbon Wire Crimping Machine
Machine Size 1800 mm x 1400 mm x 1550 mm
Power Source 50 Hz AC 220 V
Current Rating 15 A
Power 4000 W
Pressure 0.4 ~ 0.6 MPA
Production Speed 22000 Crimps/Hr
Special Function Can have back end as full/ half
Shearing Length 55 – 850 mm
Stripping Length A. 0 ~ 7 mm B. 0 ~ 9 mm
Suitable Wire Electronic Wire
Wire Type AWG # 28 ~ AWG # 18
Max Wire Width 20 mm
Max number of cores 20
Single Wire Dia 0.8 ~ 2. 0 mm
