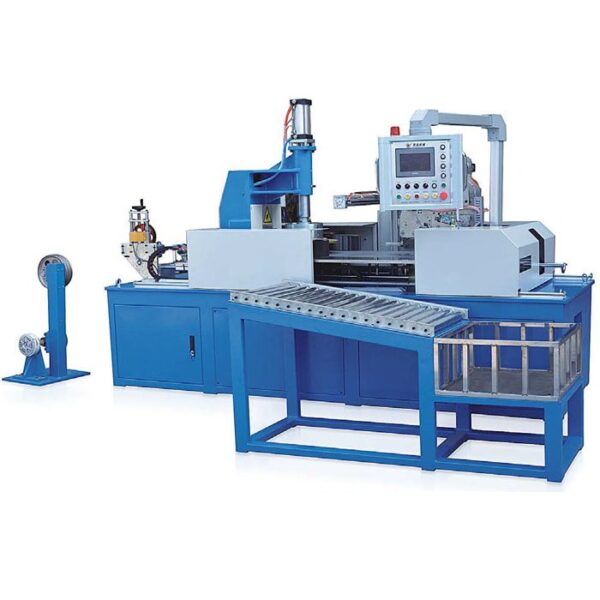

Automatic PLC Coiling Wrapping Machine – High-Speed Wire Coiling & Packaging System

Circular Shape Automatic Wrapping Machine Circular Shape Automatic Wrapping Machine – High-Speed Coil Packaging System
Medium Cross Section Semi-Automatic Coiling Machine Medium Cross Section Semi-Automatic Coiling Machine for 10–70mm² Cables

Automate your wire packaging with the Automatic PLC Coiling Wrapping Machine—ideal for Φ1–16mm wire, offering high-speed coiling, neat wrapping, and manpower savings.

Applications

  • Electrical wire and cable manufacturers

  • Coiling of telecom and communication cables

  • Industrial wire packaging

  • Automation of wire processing and post-production

  • Integration in continuous extrusion lines

Characterstics:
  • High efficiency coiling
  • The finished product is wrapped neatly automatically.
  • The utilization of this equipment drastically saves man power and processing time.
  • Machine can be aligned with extrusion line or can be independently used with spool pay-off.

Category: Tags: , , , ,

Description

The Automatic PLC Coiling Wrapping Machine is designed for efficient and high-speed coiling and wrapping of wire coils, drastically reducing manual labor and production time. Built with advanced PLC control, it ensures uniform coiling, automated wrapping, and seamless integration with existing extrusion lines or independent pay-off systems.

With models like PRV-CW-1246 and PRV-CW-1860, this equipment accommodates wire diameters from Φ1mm to Φ16mm, achieving wrapping speeds up to 2 pcs/min and coiling speeds of up to 200 meters/min. It’s the perfect solution for cable manufacturers seeking automation and precision.

  • Wire diameter range: Φ1mm – Φ16mm

  • Traverse height: Up to 180mm

  • Max Coiler OD: Up to Φ600

  • Speed: Up to 200 meters/min

  • Wrapping speed: Up to 2 pcs/min

  • PLC-controlled system for accuracy and repeatability

  • Neatly finished coils with automatic wrapping

  • Compatible with extrusion lines or standalone operation

Technical Parameters
Model Type PRV-CW-1246 PRV-CW-1860
Traverse Height (mm) 40-100 60-180
Coiler Max OD (mm) Ф400 Ф600
Coiler Min OD (mm) Ф140-200 Ф200-300
Range of Wire (mm) Ф1-5 Ф2-16
Speed (mts/min) 200 150
Wrapping Speed (pcs/min) 2 1.5
