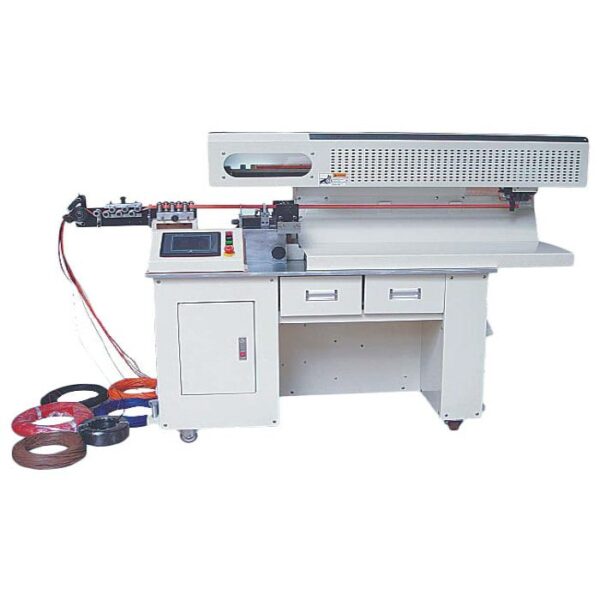

High Speed Wire Cutting and Stripping Machine (PRV-WP-950)
High Speed Wire Cutting and Stripping Machine (PRV-WP-950)

High Speed Wire Cutting and Stripping Machine (PRV-WP-950)

Automatic Ribbon Wire Crimping Machine Automatic Ribbon Wire Crimping Machine
Automatic Cable Tie Binding Machine Automatic Cable Tie Binding Machine

Application

High-Speed Automatic Wire Cutting And Stripping Machine, Simultaneously Up To 6 Wires

Features

This machine is controlled by servo motors for cutting and peeling action to make the length more accurate. The test device
checks each wire is tight with low-pressure cylinders and in case of any other abnormality the machine will shut off. Very
easy adjustment and operations.

Category:

Description

Technical Parameters

MODEL PRV-WP-950 High-Speed Wire Cutting & Stripping Machine
Machine Size W1950 x D650 x H1500mm
Weight 400 Kg
Power Supply Supply AC 200V/380V 3Phases
Motor Type AC Servo motor
Stripping Length 3~30mm
Cutting Length 42~99999mm
Operation Mode Single Cycle and auto
Cutting Line Type PVC, Teflon, Glass Wire
Cutting ability AWG #10 ~ AWG #28, Flat Cable
