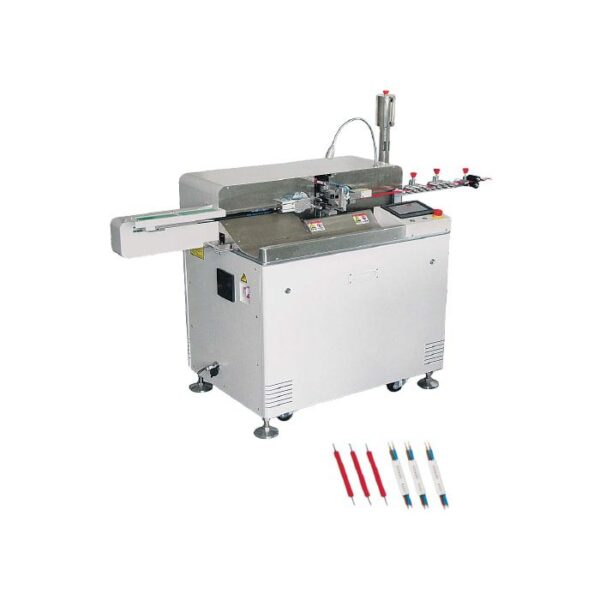

Double End Tinning Machine
Double End Tinning Machine

Double End Tinning Machine

Automatic Crimping and Tinning Machine Automatic Crimping and Tinning Machine
Double End Auto Crimping Machine Double End Auto Crimping Machine

Application

Automatic Wire Cutting, Stripping & Both End Tinning Machine Up to 8 Wires Simultaneously

Features

• 8 Wires simultaneously
• Programmable length
• KINKO 7 inches Operating Touch Screen (HMI)
• SMC Pneumatic
• Omron Temperature Controller
• MITSUBISHI Servo System
• Hi-WIN Taiwan linear guides & ball screw
• SMC Air Detectors

Category:

Description

Technical Parameters

MODEL PRV-WP-5508 Double End Tinning Machine
Power Required 50/60 Hz Single phase AC 220V
Function Cutting, both ends full/ half stripping, Double-end crimping, Double-end twisting, Both end Tinning
Production Speed AWG #20 ~ AWG #32 : 6400 ~ 10000 Pcs./Hr, AWG #16 ~ AWG #20 : 2700 ~ 4000 Pcs./Hr
Applicable wire AWG #20 ~ AWG #16, AWG #20 ~ AWG #32
Cutting Length 30 ~ 550 mm (minimum can be modified to 8mm)
Cutting Tolerance ± 0.2 mm
Stripping length 0 ~ 9 mm
Twist length 3 ~ 9 mm
Tinning length 0.5 ~ 9 mm
Air supply required 0.5 ~ 7 MPA
Size 1210 x 770 x 1370 mm
Weight 400 kg approx
