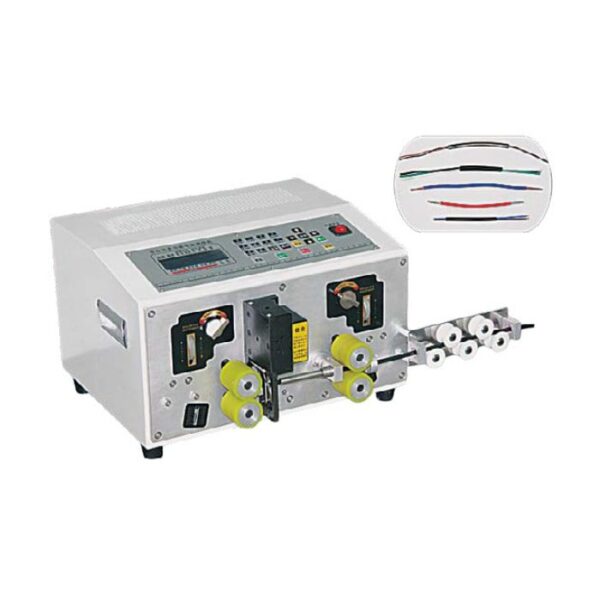

Wire Insulation Cutting and Stripping Machine – PRV-CS-380

PVC Cable Cutting and Stripping Machine PVC Cable Cutting and Stripping Machine – PRV-CS-360
2 Core Jacketed Wire Cutting and Stripping Machine PArovi Machines 2 Core Jacketed Wire Cutting and Stripping Machine – PRV-CS-3606

High-speed wire insulation cutting and stripping machine designed for processing electronic, shielded, and data cables with precision and productivity up to 3000 pcs/hr.

Applications:

  • Wire harness assembly lines

  • Data and communication cable preparation

  • Shielded wire processing

  • Electronic and appliance cable manufacturing

  • OEM and contract cable processing industries

Category:

Description

The PRV-CS-380 Wire Insulation Cutting and Stripping Machine is a high-efficiency solution for mass production in wire harnessing and cable processing industries. Designed for electronic cables, shielded wires, and data cables, this model handles cutting lengths up to 99,999.9 mm and offers multiple stripping options.

The machine supports head stripping up to 80 mm and tail stripping up to 50 mm (or up to 200 mm with optional roller movement). Built with a durable steel body, the PRV-CS-380 delivers precise insulation removal on wires with core sizes ranging from 1 mm to 10 mm.

Engineered with 4-wheel drive mechanics, this wire insulation cutting and stripping machine ensures stability and speed, achieving production rates between 2000 to 3000 pieces per hour.

Technical Parameters
MODEL PRV-CS-380
Cutting Length 1 mm ~ 99999.9 mm
Stripping Length Head 1 mm ~ 80 mm, Tail 1 ~ 50 mm
Stripping Length with Roller Movement Function (Optional) Head 1 ~ 200 mm Tail 1 ~ 80 mm
Twisting Length N/A
Core Size 1 ~ 10 mm
Tool Material Cable Cutting and Stripping Machine (PRV-CS-330-A) Steel
Size of Machine 570 x 280 x 410 mm
Weight of Machine 38 Kg
Power 220 V 50 Hz
Type of Drive 4 Wheel Drive
Production 2000 ~ 3000 Pcs. / Hr.
Key Features:

  • Accurate wire insulation cutting and stripping machine for shielded and electronic cables

  • Cutting length support up to 99,999.9 mm

  • Optional roller movement for extended stripping length

  • Core size compatibility: 1 mm – 10 mm

  • Heavy-duty steel tool material for extended durability

  • 4 Wheel Drive for enhanced traction and speed

  • Production capacity of 2000 ~ 3000 pcs/hr
