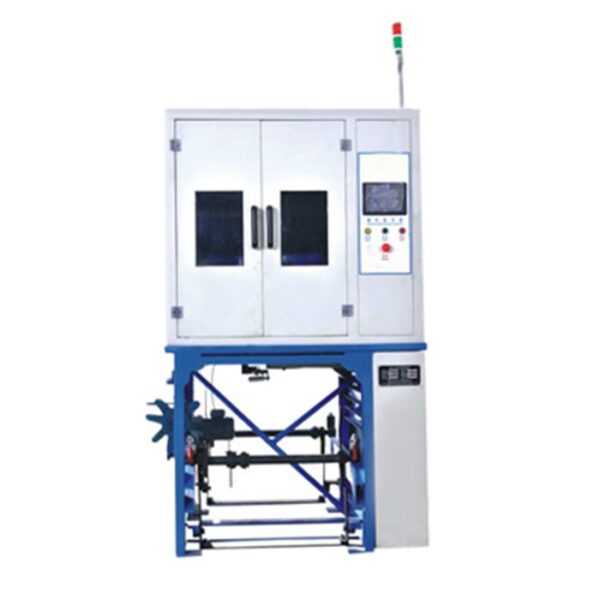

High-Speed Wire and Cable Braiding Machine PBR-16
High-Speed Wire and Cable Braiding Machine PBR-16

High-Speed Wire and Cable Braiding Machine PBR-16

high-speed wire and cable braiding machine High-Speed Wire and Cable Braiding Machine PBR-24

Compact and efficient, the PBR-16 High-Speed Wire and Cable Braiding Machine with 16 spindles is designed for fine shielding and precise cable manufacturing. Perfect for smaller cables, data wires, and low-diameter shielding applications.

Category:

Description

The High-Speed Wire and Cable Braiding Machine PBR-16 is a reliable and compact solution for high-precision braiding of wires and cables. With a 16-spindle configuration and 2 over 2 vertical braiding system, High-Speed Wire and Cable Braiding Machine PBR-16 is ideal for processing fine conductors, communication cables, and shielded wire applications.

High-Speed Wire and Cable Braiding Machine PBR-16 operating at up to 150 RPM, it allows for smooth and consistent braid formation with adjustable pitch ranging from 3.2 to 65 mm, offering flexibility across various cable specifications. Despite its compact form, the High-Speed Wire and Cable Braiding Machine PBR-16 delivers industrial-grade performance with low energy consumption and easy maintenance.

Key Features:

  • Vertical braiding for efficient floor space use

  • 16 high-speed bobbins

  • Suitable for small to medium-diameter wire and cable

  • Precise braiding pitch adjustment

  • Durable construction and low maintenance

Technical Parameters
MODEL PBR-16
Number of bobbin 16
Braiding form 2 over 2
Braiding direction Vertical
Bobbin size 75X22X70
Bobbin Speed 150 r.p.m (Max)
Braiding pitch 3.2-65 mm
Max Braiding Dia 14 mm
Caterpillar Diameter 382 mm
Pay-off/Take-up Reel size ≤ 800 mm
Main Motor 1.5 kw
Size (mm) 1490X1350X2080
Weight (kg) 900
