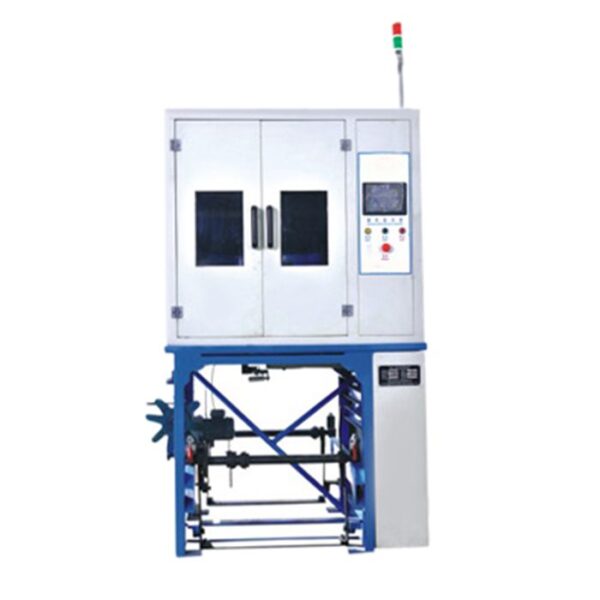

High-Speed Wire and Cable Braiding Machine PBR-24

High-Speed Wire and Cable Braiding Machine PBR-16 High-Speed Wire and Cable Braiding Machine PBR-16

The PBR-24 High-Speed Wire and Cable Braiding Machine offers vertical braiding with 24 spindles, supporting high-speed production of shielded and armored cables. Ideal for wire harness, coaxial cable, and specialty cable applications.

Category:

Description

The High-Speed Wire and Cable Braiding Machine PBR-24 is a robust and precision-engineered vertical braider designed to meet the high-performance requirements of modern cable manufacturing. With its 24 bobbin spindle configuration and 2 over 2 braiding pattern, it delivers uniform and tightly braided wire or cable sheathing at up to 1100 RPM.

high-speed wire and cable braiding machine supports a wide range of applications including coaxial cables, automotive cables, fiber optic cables, and shielding for signal and power lines. High-speed wire and cable braiding machine is designed for durability and ease of use, the PBR-24 ensures high productivity with reduced downtime.

Key Features:

  • 24 bobbin spindles with high-speed rotation

  • Vertical braiding mechanism for space efficiency

  • Adjustable braiding pitch (13.3 to 134.5 mm)

  • Compatible with a wide range of bobbin and reel sizes

  • Rugged steel construction for long-term reliability

Technical Parameters
MODEL PBR-24
Number of bobbin 24
Braiding form 2 over 2
Braiding direction Vertical
Bobbin size 75X22X70
Bobbin Speed 1100 r.p.m (Max)
Braiding pitch 13.3-134.5 mm
Max Braiding Dia 24 mm
Caterpillar Diameter 618 mm
Reel size ≤ 800 mm
Main Motor 3kw
Size (mm) 1720X1880X2300
Weight (kg) 1258
