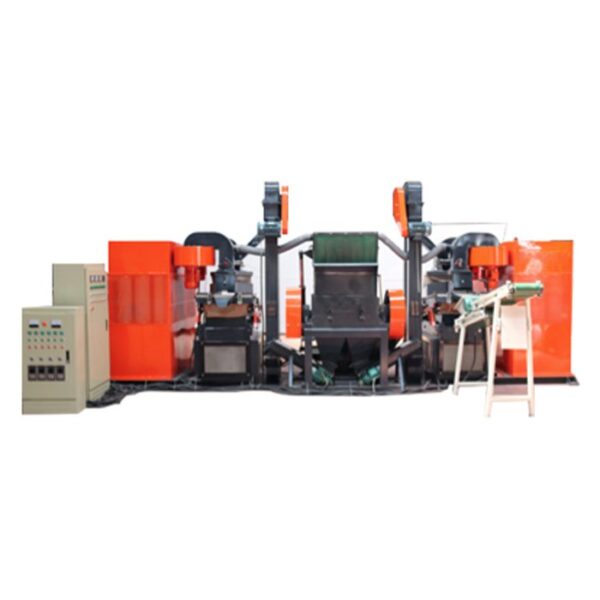

Copper Waste Recycling Machine – High Efficiency & Metal Recovery
Description
Efficiently recover copper from scrap Wires and Cables with our industrial-grade Copper Waste Recycling Machine. Designed for eco-friendly, high-output metal separation with minimal labor input.
Host Configuration:
4 sets of front and rear Vibrators + Double conveyor belt 2 * + Magnetic Belt Separator sets
Applications:
-
Waste electrical cables
-
Communication cable waste
-
Automotive wiring harness
-
Factory cable production waste
- Description
Description
The Copper Waste Recycling Machine from Parovi Machines is an advanced solution for recovering valuable copper from waste cables, wires, and other mixed metal scrap. This machine ensures high metal purity, low operational cost, and minimal environmental impact—making it ideal for recycling centers, cable manufacturers, and scrap dealers.
Key Features:
-
High Recovery Rate: Separates copper with >98% purity
-
User-Friendly Operation: Touchscreen interface and auto-stop/start system
-
Eco-Friendly Design: Zero emissions, dust collection system
-
Durable Build: Industrial-grade components ensure long-term performance
-
Low Power Consumption: Energy-efficient motor system
Technical Parameters
| MODEL | 1800C | |
|---|---|---|
| Name | Parameter | Remarks |
| Dimensions | 1300mm X 5000mm X 3100mm | |
| Total Weight | 8500 KG | |
| Total power | 415V / 115kw | Can be Customized a Variety of Voltage |
| Crushing Capacity | 8000-12000KG / 10H | |
| Processing Range | φ0.15mm-φ30mm | Good Separation Effect Than 0.2mm |
The Conveyor Belt 2
Belt conveyor is a continuous conveyor, which consists of a closed loop conveyor belt as the traction and bearing member, which bypasses the front and on the tensioning drum, a continuously moving conveyor belt to complete the task.
| MODEL | C-500 |
|---|---|
| Effective Width (mm) | 500 |
| Power (kw) | 1.5 |
| Length (mm) | 3.5 |
| Category | Polymer (black) |
| Structural Features | Supporting Roller |
1st Crusher
This type tears uniaxial crusher principle. Co-blade spindle 27, the interior of the cutter head 2 and the crusher tooth groups each set of shear knife rotates. Due to the biasing force generated by the rotation of the material crushed. The machine is driven by the drive shaft is rotated by the large gear box. A housing body portion, the holder, the security guard, hopper and other parts. Special tool material is made of tool steel with a special treatment, the unique shape design, during operation lyses, tearing, extruding and other effects. The waste crusher is widely used in wires, cables, PVC, PE, PP, PS and ABS plastic, glass, and CCL scrap, waste rubber (such as: waste tires), wood plastic waste pipe, the bulk material broken material. Any shape of the crushed material, a frame type, box type, hollow, cylindrical, spherical and various irregular shapes can be. The device is equipped with a hydraulic auxiliary feeding means, so that the material crushing more efficient and fully.
| Name | Parameter | Remark |
|---|---|---|
| Name | Crusher | |
| Dimensions | 1900mm X 1500mm X 2500mm | |
| weight | 1900KG | |
| Feed Inlet Size | 750mm X 500mm | |
| Blade | Knife 27, Fixed Knife 2 | 15KG, Packed Volume of 320mm X 150mm X 80mm |
| Motor Power | 30KW | |
2nd Crusher
This equipment has a hopper, the body, the spindle, and other components constitute. The machine consists of a drive motor through a V-belt pulley transmitted to the device spindle, spindle motor, driven by high-speed rotation. By the left side portion of the body casing, liner, right casing, bearings, and bearing components. Star-shaped spindle section from the spindle, seat, blades, and other parts. broken star-shaped machine spindle (knife 10, fixed knife 4) continue to be a rotary shear breaking crude product was cut into approximately 3 ~ 5mm plastic skin with a copper core mixture.
| Name | Parameter | Remark |
|---|---|---|
| Name | 2ndCrusher | |
| Feed inlet size | 810mm X 280mm | |
| Blade | Knife 10, fixed knife 4 | Co-45KG, Packed Volume of 350mm X 180mm X 180mm |
| Motor Power | 55KW | |
| Motor Power | 55KW | |
| The Particle Size (mesh) | ⌀2.5 mm (determined by sieving) | 605mm X 410mm |
Air Seperator
The machine is working, the plastic used to separate the mixture, without adding water
| Name | Parameter | Remark |
|---|---|---|
| Name | Air Seperator | |
| Fan Speed | 2900r / min | |
| A Vibratory Separator Web Area | Sorting Quality ≥99% | Co-45KG, Packed Volume of 350mm X 180mm X 180mm |
| Fan power | 3KW * 2 | |
| Local Oscillator Power | 2.2KW X 2 | |
| Vibration frequency | 30-60HZ | Domestic frequency 50HZ, frequency can be customized to 60HZ |
| Hair frequency | 30-60HZ | Domestic frequency 50HZ, frequency can be customized to 60HZ |
Feed Conveyor
| Name | Parameter |
|---|---|
| Motor Power Feeding Conveyor | 2.2KW X 2 |
Dust Removing Device
| Name | Parameter | |
|---|---|---|
| Name | Dust Removing Device | |
| Motor Power | (3KW + 3KW + 0.18KW) X 2 | |
| Bag | 1000mm X φ200mm X 2 | |
| Dust bag | 2500mm X φ400mm X 2 | |
Why Choose Our Copper Waste Recycling Machine?
With rising copper prices and increasing environmental regulations, having a reliable copper waste recycling machine boosts sustainability while maximizing ROI. Our copper waste recycling machine is easy to install, safe to operate, and delivers consistently high throughput.
