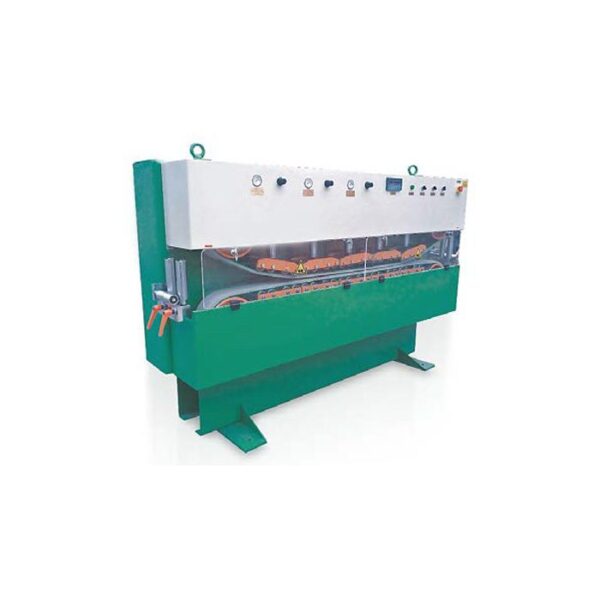

Crawler Tractor Machine – PRV-TQD Series (Wire Haul-off Units for Φ1–Φ60 mm Cables)

Take Up Pay Off Coiling Machine Take Up Pay Off Coiling Machine

Heavy-duty Crawler Tractor Machines from PRV-TQD Series for precise and stable cable haul-off operations across a wide range of wire diameters (Φ1–Φ60 mm). Available in 7 models with various speed, force, and motor configurations.

Applications:

  • Cable and wire extrusion lines

  • Communication cable haul-off

  • Power and control cable manufacturing

  • Coaxial, signal, and instrumentation cable lines

Category:

Description

The PRV-TQD Series Crawler Tractor Machine is engineered for reliable cable and wire pulling during extrusion and processing operations. Crawler Tractor Machine from Parovi Machines is Built for high traction stability and continuous operation, Parovi Machine’s crawler tractor machine accommodate wire diameters ranging from Φ1 mm to Φ60 mm and provide consistent speed control and gripping force.

With multiple variants of crawler tractor machine by Parovi Machines such as TQD 500, 800, 1250, 1600, 2000, 2500, and 3200, this series is capable of handling light to heavy-duty haul-off tasks. Whether you’re extruding fine wires or high-diameter industrial cables, these machines provide exceptional performance with motor power ranging from 5.5 kW to 18.5 kW, and maximum traction forces up to 3200 kg.

Key Features:

  • Compatible with a wide range of cable diameters

  • Robust caterpillar belt design for secure grip

  • Stable haul-off speed ranging from 0 to 100 m/min

  • Adjustable track lengths and machine widths

  • Ideal for extrusion lines and downstream cable machinery

PRV-TQD-500

Technical Parameters



Model PRV-TQD-500
Wire size Ф1-Ф60
Max tract. force (Kg) 500
Speed( m/min) 0-100
Track Length(mm) 750
Width(MM) 80
Machine 1000
No. of Cylinders 3
Motor Power 5.5

PRV-TQD-800

Technical Parameters

Model PRV-TQD-800
Wire size Ф5-Ф80
Max tract. force (Kg) 800
Speed( m/min) 0-100
Track Length(mm) 1300
Width(MM) 100
Machine 1000
No. of Cylinders 4
Motor Power 5.5

PRV-TQD-1250

Technical Parameters

Model PRV-TQD-1250
Wire size Ф5-Ф100
Max tract. force (Kg) 1250
Speed( m/min) 0-100
Track Length(mm) 1900
Width(MM) 120
Machine 1000
No. of Cylinders 5
Motor Power 7.5

PRV-TQD-1600

Technical Parameters

Model PRV-TQD-1600
Wire size Ф5-Ф120
Max tract. force (Kg) 1600
Speed( m/min) 0-60
Track Length(mm) 1900
Width(MM) 130
Machine 1000
No. of Cylinders 6
Motor Power 11

PRV-TQD-2000

Technical Parameters

Model PRV-TQD-2000
Wire size Ф5-Ф150
Max tract. force (Kg) 2000
Speed( m/min) 0-60
Track Length(mm) 2300
Width(MM) 150
Machine 1000
No. of Cylinders 7
Motor Power 15

PRV-TQD-2500

Technical Parameters

Model PRV-TQD-2500
Wire size Ф5-Ф180
Max tract. force (Kg) 2500
Speed( m/min) 0-50
Track Length(mm) 2300
Width(MM) 150
Machine 1000
No. of Cylinders 7
Motor Power 15

PRV-TQD-3200

Technical Parameters

Model PRV-TQD-3200
Wire size Ф1-Ф60
Max tract. force (Kg) 3200
Speed( m/min) 0-45
Track Length(mm) 2600
Width(MM) 160
Machine 1000
No. of Cylinders 8
Motor Power 18.5
