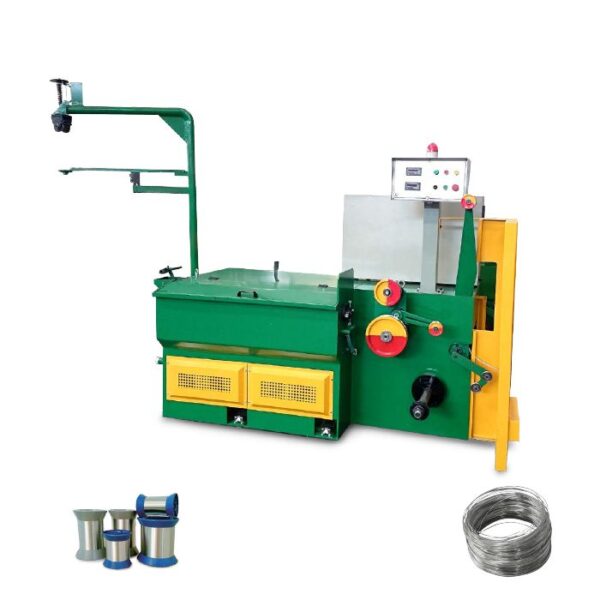

Wire Drawing Machine for Stainless Steel

Description

Application	CL-11D	CL-13D	CL-14D
Number of Dies	11	13	14
Max inlet wire dia	2.0	2.3	1.2
Min outlet wire dia	0.7	0.7	0.3
Drawing speed	400m/min	180m/min	500m/min
Power	15KW	15KW	7.5KW
Transmission type	Synchronous belt driving, Ac frequency conversion speed control
Cone pulleys	Technical condition Imported mould steel vacuum annealing treatment
Cooling system	The drawing capstan is cooled by full immersion method
Tension system	Precision potentiometer automatic adjustment
Winding device	Ball screw wire rod winding device, stepper motor or servo motor drive
Control type	“AC frequency conversion+ PLC program controller+ Man machine interface+ constant tension”, whole digital logic control
Drawing material	S.S wire, steel wire for rope, steel cord wire, galvanized steel wire, silicon pellet cutting wire and so on
