Advanced Double Line Wire Drawing Machine – High-Speed Performance
₹599.00
Double Line Wire Drawing Machine is a high-speed industrial wire drawing system designed for simultaneous dual-line copper wire production with stable tension control and energy-efficient operation. Suitable for wire and cable manufacturing industries, the machine delivers high production output, superior wire quality, reduced wire breakage, and continuous industrial performance for fine copper wire drawing applications. The system supports drawing speeds up to 2000 m/min for efficient large-scale wire manufacturing.
- Description
Description

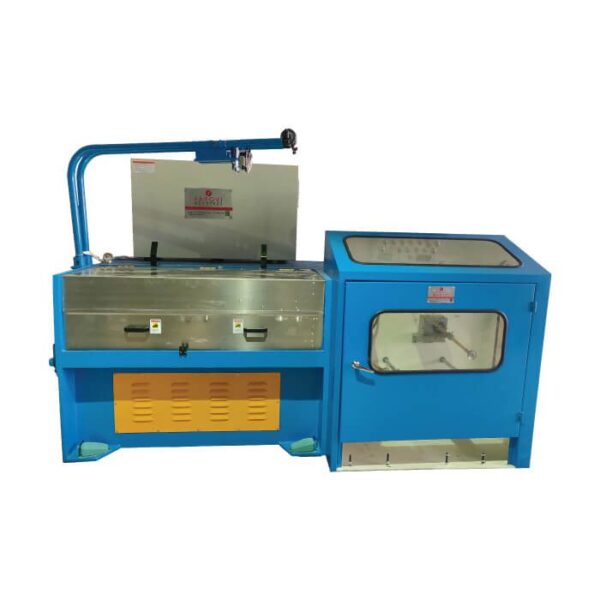

Double Line Wire Drawing Machine
The Double Line Wire Drawing Machine is engineered for high-speed simultaneous drawing of copper wires in dual production lines. Designed for wire and cable manufacturing industries, the machine improves production efficiency by processing two wire lines simultaneously while maintaining stable wire tension and superior wire surface quality.
Unlike conventional single-line wire drawing systems, the double line design increases production output and reduces operational cost per unit. Widely used in electrical wire manufacturing, cable production, and industrial wire processing applications, the machine supports continuous industrial operation with energy-efficient performance and high-speed wire drawing capability. Wire drawing is a metalworking process used to reduce wire diameter through drawing dies with precise tension control.
Key Features
- Dual-line high-speed wire drawing system
- Simultaneous copper wire production
- Stable automatic tension control
- High-speed wire drawing up to 2000 m/min
- Energy-efficient industrial operation
- Reduced wire breakage and wastage
- Heavy-duty industrial-grade construction
The machine is designed for improved productivity, digital control operation, and continuous industrial wire manufacturing.
Applications
- Copper wire manufacturing
- Electrical wire production
- Wire and cable industries
- Fine wire processing
- Industrial wire drawing applications
- Continuous cable manufacturing plants
Advantages of Double Line Wire Drawing Machines
- Increases production efficiency
- Supports simultaneous dual-line operation
- Reduces operational cost
- Ensures stable wire quality
- Suitable for continuous industrial production
Modern wire drawing systems use automatic tension control and energy-efficient drive systems to improve wire quality and production speed.
Technical Parameters
| Type | Double Line Wire Drawing Machine |
|---|---|
| Control System | Digital read out or LCD computer interface |
| Power Control | 3 Inverter |
| Wire inlet dia | Ø1.2 – Ø1.6 |
| Wire finished dia | Ø0.2 – Ø0.4 |
| Maximum Wire Speed | 2000M/Min |
| Max dies no | 20+20 |
| Transmission Type | Flat Belt + timing belt |
| Mechanical Elongation | o 7%+17% |
| Construction of the Machine Body Casting | Monoblock casted, tandem four shafts |
| Capstan | Ceramic coated |
| Capston dia (max) | Ø242mm |
| Fix Capston dia (max) | 206mm |
| Spool bobbin size | Ø300xØ215x 270mm |
| Bobbin loading & unloading type | Expandable shaft |
| Max loading capacity | 50KG |
| Traversing unit | Synchronous motor and Flat Belt |
| Main Motor | 18.5Kw |
| Spooler Motor | 3.7 KW +3.7 Kw |
| Correction system | Automatic digital control of take-up |
| Tension control | Weight Type Tension Pulley |
| Lubrication Type | Spray type |
| Lubrication type for bearing | Without Oil High Temperature Grease |
| Power source | 415V/50Hz |
| Lubricant Capacity | >50L/Min |
| Brake | Magnetic Brake |
| Dimensions (lxwxh) | 4.2 x 1.2 x 2M |
| Weight | 2800Kg |
