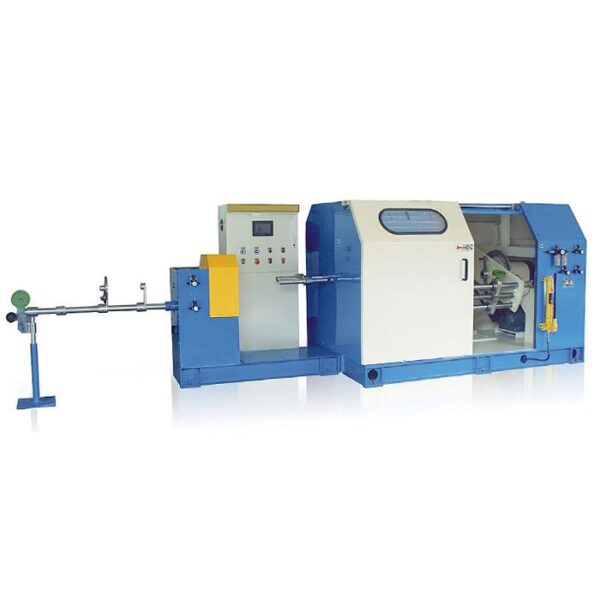

Frame Type Single Twisting Machine – PRV-ST Series (630 / 800 / 1000 / 1250)

High Speed Single Twist Cantilever Buncher High-Speed Single Twist Cantilever Buncher – PRV-ST Series (630 / 800 / 1000 / 1250)
High Speed Triple Twist Bunching Machine High Speed Triple Twist Bunching Machine For LAN Cables

Heavy-duty frame type single twisting machines engineered for precision core laying and high-speed taping – ideal for power cables and communication cables with optional longitudinal or spiral taping.

Applications:

  • Power cable core twisting

  • LAN and data communication cable twisting

  • Multi-core conductor laying

  • Taping with cotton, Mylar, or aluminum foil

Category: Tags: , , , , , ,

Description

The PRV-ST Series Frame Type Single Twisting Machines are designed for high-precision laying of power cables, communication cables, and multi-core conductors. These machines offer advanced taping options including central, longitudinal, or spiral taping, and are capable of wrapping with cotton, Mylar, or aluminum foil as needed.

With four model options – PRV-ST-630, ST-800, ST-1000, and ST-1250 – this series accommodates a wide range of cable sizes from Ø10mm up to Ø30mm. Step-less speed regulation, twist pitch adjustment, and selectable twist direction (S/Z) allow tailored configurations for diverse production requirements.

Built on a heavy-duty hydraulic frame, each model includes pneumatic take-up tension control and screw-type traverse mechanisms, ensuring smooth operation and consistent output even during high-speed runs up to 700 RPM.

Technical Parameters



Machine Model PRV-ST-630 PRV-ST-800 PRV-ST-1000 PRV-ST-1250
Pay-off bobbin size 400mm-Ф500mm 400mm-Ф500mm 500mm-Ф630mm 500mm-Ф630mm
Take-up Bobbin Ф 630 x width 390

x traverse 360 x



inside bore Ф80mm

 Ф 800 x width 600

traverse 500 x

inside bore Ф80mm

 Ф 1000 mm Ф 1250 m
Finished Diameter Ф10mm Ф15mm Ф25mm Ф30mm
Twist Pitch 20-200mm

step-less

speed regulation

 30-300mm



step-less speed regulation

 30-400mm

step-less

speed regulation

 30-500mm

step-less

speed regulation
Rotation Speed 700rpm 500rpm 450rpm 300rpm
Loading Type Hydraulic pump Hydraulic pump Hydraulic pump Hydraulic pump
Traverse Screw Type Screw Type Screw Type Screw Type
Take-up Tension Pneumatic Pneumatic Pneumatic Pneumatic
Twisting Direction Exchange wrapping

direction ”S” or ”Z”

 Exchange wrapping

direction ”S” or ”Z”

 Exchange wrapping

direction ”S” or ”Z”

 Exchange wrapping

direction ”S” or ”Z”
Taping Type Longitudinal or spiral Longitudinal or spiral Longitudinal or spiral Longitudinal or spiral
Taping Material Cotton, Mylar or

Aluminium Foil

 Cotton, Mylar or

Aluminium Foil

 Cotton, Mylar or

Aluminium Foil

 Cotton, Mylar or

Aluminium Foil
Weight 2300kg Approx 3200kg Approx 4200kg Approx 5200kg Approx
Key Features:

  • Four models available for different cable diameters

  • Suitable for power and communication cables

  • Central, longitudinal, or spiral taping capability

  • Supports twist direction exchange: “S” or “Z”

  • Step-less speed control for twist pitch

  • Pneumatic take-up tension and hydraulic loading

  • High production efficiency with precision control
