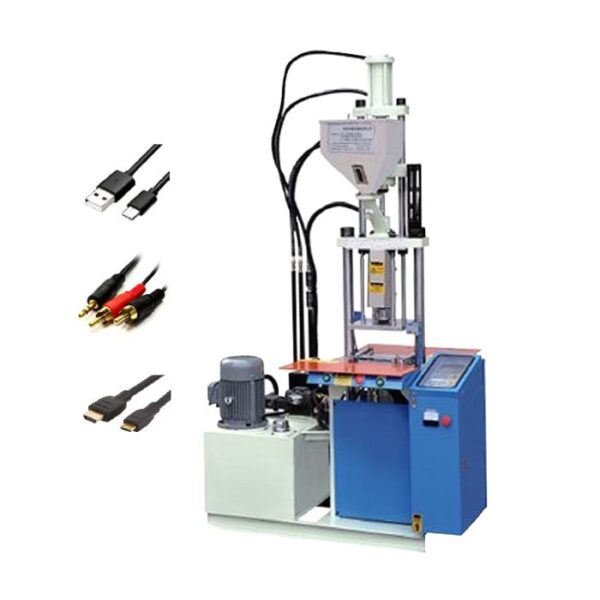

Vertical Injection Molding Machine with Double Station Two Molds 15 Ton
Vertical Injection Molding Machine with Double Station Two Molds 15 Ton

Vertical Injection Molding Machine with Double Station Two Molds 15 Ton

Single Station Small Plug Injection Molding Machine 15 Ton Single Station Small Plug Injection Molding Machine 15 Ton

Category:

Description

Technical Parameters
MODEL PRV150-15Tons
INJECTION UNIT
Screw Diameter 26 mm
Injection Pressure 1164 kgf/cm2
Injection Capacity 47 cm3
Injection Weight (P.S) 55/1.9
Injection Rate >39 cc/s
Screw Speed 0-150 r.p.m
Screw Stroke 90 mm
Nozzle Stroke 120 mm
Nozzle Contact Force 2.4 tf)
CLAMPING UNIT
Clamping System Hydraulic
Clamping Force 15 Ton
Clamping Stroke 200 mm
Max. Mould Space 240 mm
Min. Mould Height 40 mm
ELECTRICAL EQUIPMENT AND GENERAL
Drive Motor (kw) 2.2 (3HP)
Heater(kw) 2.0
Dimension Of Machine(m) 1.2(L) x 0.9(W) x 2.3 (H)
Weight Of Machine(t) 0.6
Oil Tank Capacity(l) 90
Cooling Water (l/hr) 400-600
