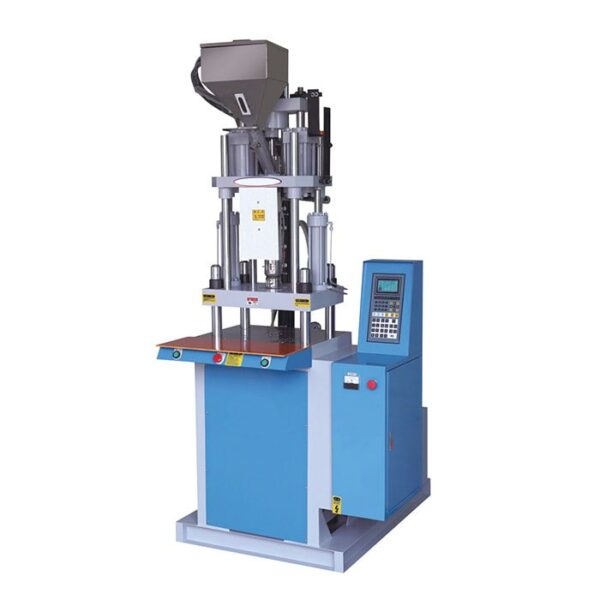

Vertical Screw Type Molding Machine – 45 Ton (PRV-45)
The PRV-45 Vertical Screw Type Molding Machine 45 Ton is a hydraulic injection molding solution designed for electrical plugs, connectors, wire and cable accessories, and industrial plastic components. Featuring 45-ton clamping force, a 35 mm screw diameter, and 128 cm³ injection capacity, The PRV-45 Vertical Screw Type Molding Machine 45 Ton supports controlled injection and consistent molding performance. Its vertical configuration provides convenient mould access for insert molding and component production.
- Description
Description
Vertical Screw Type Molding Machine – 45 Ton (PRV-45)
Technical Specifications
| Parameter | Unit | Specification |
|---|---|---|
| Model | — | PRV-45 |
| Injection Unit | ||
| Screw Diameter | mm | 35 |
| Injection Pressure | kgf/cm² | 1493 |
| Injection Capacity | cm³ | 128 |
| Injection Weight (PS) | g | 118 |
| Injection Rate | cc/s | 84 |
| Screw Speed | rpm | 0–195 |
| Screw Stroke | mm | 134 |
| Nozzle Stroke | mm | 190 |
| Nozzle Contact Force | tf | 3.5 |
| Clamping Unit | ||
| Clamping System | — | Hydraulic |
| Clamping Force | Ton | 45 |
| Clamping Stroke | mm | 215 |
| Maximum Mould Space | mm | 365 |
| Minimum Mould Height | mm | 165 |
| Overall Platen Size | mm | 600 × 370 |
| Space Between Columns | mm | 450 × 200 |
| Hydraulic Ejector Force | tf | 0.7 |
| Ejector Stroke | mm | 28 |
| Electrical Equipment & General | ||
| Drive Motor | kW | 5.5 (7.5 HP) |
| Heater Power | kW | 3.3 |
| Machine Dimensions (L × W × H) | m | 1.6 × 1.0 × 2.9 |
| Machine Weight | Ton | 0.9 |
| Shipping Dimensions | m | 1.45 × 1.1 × 3.25 |
| Shipping Weight | Ton | 1.9 |
| Oil Tank Capacity | L | 160 |
| Cooling Water Requirement | L/hr | 500–700 |
Product Overview
The PRV-45 Vertical Screw Type Molding Machine from Parovi Machines is engineered for hydraulic plastic injection molding applications involving electrical plugs, connectors, cable accessories, and insert-molded components.
With a 45-ton hydraulic clamping force and 128 cm³ injection capacity, the PRV-45 supports controlled plastic injection and reliable moulding operations. Its vertical design provides convenient access to the mould area, making it suitable for insert molding and component handling.
The machine is designed for industrial production requirements where consistent molding performance and practical operation are important.
Key Features
- 45-ton hydraulic clamping force
- 35 mm screw diameter
- 128 cm³ injection capacity
- 84 cc/s injection rate
- Adjustable screw speed from 0–195 rpm
- Vertical injection configuration
- Hydraulic clamping system
- 134 mm screw stroke
- 190 mm nozzle stroke
- Hydraulic ejector system
- Compact industrial machine design
Applications
The PRV-45 Vertical Screw Type Molding Machine is suitable for:
- Electrical plug molding
- Cable connector and terminal molding
- Wire and cable accessories
- Insert molding applications
- Plastic electrical components
- Industrial molded plastic parts
Why Choose The PRV-45 Vertical Screw Type Molding Machine 45 Ton?
The PRV-45 combines vertical configuration, hydraulic clamping, and screw-type injection technology to support controlled molding operations. Its 45-ton clamping force and injection capacity make it suitable for electrical and industrial component production.
Request a Quote
Contact Parovi Machines for pricing, technical consultation, and machine configuration details for the PRV-45 Vertical Screw Type Molding Machine – 45 Ton.
