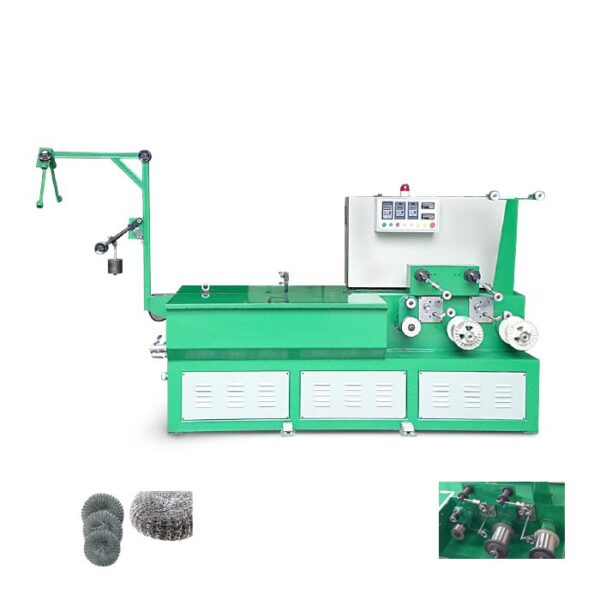

Stainless Steel Wire Drawing Machine for Scourer Wire

The CL-20D Stainless Steel Wire Drawing Machine for Scourer Wire is designed for fine wire drawing applications, reducing wire diameter through a 20-die drawing system. Available in single-head and double-head configurations, it features AC frequency conversion speed control, PLC-based operation and automatic tension adjustment for efficient wire processing. It is suitable for stainless steel and other compatible wire materials used in scourer production and industrial wire applications.

Description

Stainless Steel Wire Drawing Machine for Scourer Wire

The CL-20D Stainless Steel Wire Drawing Machine for Scourer Wire is designed to reduce wire diameter through a series of drawing dies for applications requiring fine and consistent wire. It is suitable for processing stainless steel wire used in metal scourers, along with other compatible steel and industrial wire materials.

Stainless Steel Wire Drawing Machine for Scourer Wire is Available in single-head and double-head configurations, the machine integrates frequency conversion speed control, PLC-based automation and a constant-tension control system. These features support controlled drawing operations and help maintain consistent wire handling during production.

Key Features

  • 20-Die Drawing System: Draws wire through a series of 20 dies to achieve the required outlet diameter.
  • Single-Head and Double-Head Options: Available in configurations suited to different production requirements.
  • Fine Wire Drawing: Supports a listed maximum inlet diameter of 0.8 mm and minimum outlet diameter of 0.12 mm.
  • High-Speed Operation: Listed drawing speed of up to 800 m/min, subject to material and operating conditions.
  • AC Frequency Conversion Control: Enables speed adjustment according to production requirements.
  • PLC and HMI Control: Combines programmable logic control with a human-machine interface for convenient operation.
  • Automatic Tension Adjustment: Uses a precision potentiometer-based tension system to support stable wire handling.
  • Immersion Cooling: The drawing capstan is cooled using a full-immersion method.
  • Precision Winding System: Uses a ball-screw wire winding mechanism driven by a stepper or servo motor, depending on configuration.
  • Synchronous Belt Transmission: Supports controlled power transmission during drawing operations.

Applications

The CL-20D Stainless Steel Wire Drawing Machine for Scourer Wire is designed for compatible materials and applications including:

  • Stainless steel wire for metal scourer production
  • Steel wire for rope manufacturing
  • Steel cord wire processing
  • Galvanized steel wire drawing
  • Silicon pellet cutting wire and other compatible wire materials

The final application suitability depends on the wire grade, tensile strength, inlet diameter and required outlet specifications.

Technical Specifications

Parameter CL-20D Double Head CL-20D Single Head
Number of dies 20 20
Maximum inlet wire diameter 0.8 mm 0.8 mm
Minimum outlet wire diameter 0.12 mm 0.12 mm
Drawing speed Up to 800 m/min Up to 800 m/min
Motor power 4 kW × 2 4 kW
Transmission type Synchronous belt drive Confirm configuration
Speed control AC frequency conversion AC frequency conversion
Cone pulleys Imported die steel, vacuum heat-treated Confirm configuration
Cooling system Full-immersion capstan cooling Confirm configuration
Tension system Precision potentiometer automatic adjustment Confirm configuration
Winding device Ball-screw wire winding; stepper or servo motor drive Confirm configuration
Control system AC frequency converter, PLC, HMI and constant-tension control Confirm configuration
Drawing materials Stainless steel, steel rope wire, steel cord wire, galvanized steel and other compatible materials Same material suitability, subject to configuration

Important: The supplied technical parameters do not clearly separate every component specification by head configuration. Confirm the single-head specifications with the technical team before publishing the final table. Motor power requirements depend on the tensile strength of the drawing material.

Enquire About the CL-20D Wire Drawing Machine

Looking for a wire drawing solution for stainless steel scourer wire or other fine-wire applications?

Contact Parovi Machines to discuss your wire material, inlet and outlet diameters, target drawing speed and production requirements. The team can help you evaluate the appropriate single-head or double-head configuration.

Request a Quote for the CL-20D Stainless Steel Wire Drawing Machine.
