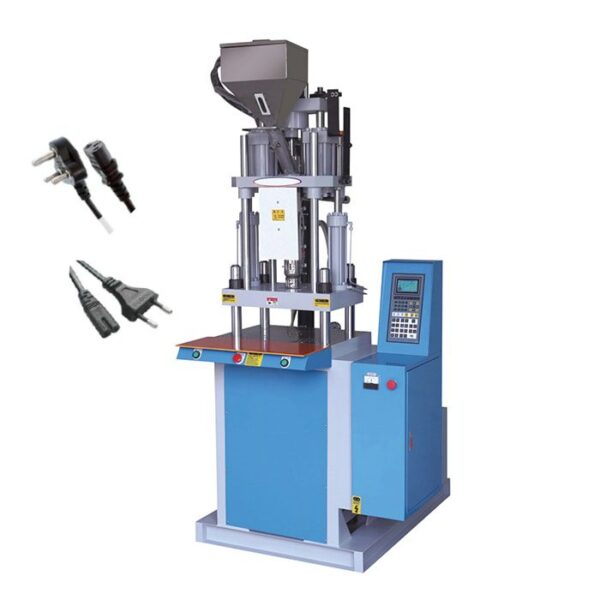

Vertical Screw Type Molding Machine – 25 Ton (PRV-25)
The PRV-25 Vertical Screw Type Molding Machine 25 Ton is a compact hydraulic injection molding solution designed for electrical plugs, connectors, and molded cable accessories. Featuring 25-ton clamping force, a 30 mm screw diameter, and 74 cm³ injection capacity, The PRV-25 Vertical Screw Type Molding Machine 25 Ton supports consistent molding performance for industrial plastic component production. Its vertical configuration is suitable for insert molding applications requiring convenient mould access and precise component positioning.
- Description
Description
Vertical Screw Type Molding Machine – 25 Ton (PRV-25)
Technical Specifications
| Parameter | Unit | Specification |
|---|---|---|
| Model | — | PRV-25 |
| Injection Unit | ||
| Screw Diameter | mm | 30 |
| Injection Pressure | kgf/cm² | 1260 |
| Injection Capacity | cm³ | 74 |
| Injection Weight (PS) | g | 85 |
| Injection Rate | cc/s | 57 |
| Screw Speed | rpm | 0–150 |
| Screw Stroke | mm | 120 |
| Nozzle Stroke | mm | 150 |
| Nozzle Contact Force | tf | 2.4 |
| Clamping Unit | ||
| Clamping System | — | Hydraulic |
| Clamping Force | Ton | 25 |
| Clamping Stroke | mm | 215 |
| Maximum Mould Space | mm | 360 |
| Minimum Mould Height | mm | 145 |
| Space Between Columns (H × V) | mm | 370 × 200 |
| Electrical Equipment & General | ||
| Drive Motor | kW | 3.7 (5 HP) |
| Heater Power | kW | 2.3 |
| Machine Dimensions (L × W × H) | m | 1.25 × 1.0 × 2.9 |
| Machine Weight | Ton | 0.9 |
| Oil Tank Capacity | L | 120 |
| Cooling Water Requirement | L/hr | 600–800 |
Product Overview
The PRV-25 Vertical Screw Type Molding Machine from Parovi Machines is engineered for hydraulic plastic injection molding applications involving electrical components, cable accessories, and insert-molded parts.
With a 25-ton hydraulic clamping force and a 74 cm³ injection capacity, this vertical screw type molding machine is designed to support controlled injection and consistent moulding operations. Its vertical arrangement provides convenient access to the mould area for insert placement and finished component removal.
The PRV-25 is a practical solution for production environments requiring a dedicated machine for small and medium-sized plastic components.
Key Features
- 25-ton hydraulic clamping force
- 30 mm screw diameter
- 74 cm³ injection capacity
- 57 cc/s injection rate
- Adjustable screw speed from 0–150 rpm
- Vertical injection configuration
- Hydraulic clamping system
- Compact machine dimensions
- Designed for insert molding applications
Applications
The PRV-25 Vertical Screw Type Molding Machine 25 Ton is suitable for:
- Electrical plug molding
- Cable connector molding
- Wire and cable accessories
- Plastic electrical components
- Insert molding applications
- Industrial molded plastic parts
Why Choose the The PRV-25 Vertical Screw Type Molding Machine 25 Ton?
The PRV-25 combines a compact vertical design with hydraulic clamping and a screw-type injection unit. Its configuration supports convenient mould access, controlled injection, and practical operation for electrical and industrial plastic component production.
Request a Quote
Contact Parovi Machines for pricing, technical consultation, and machine configuration details for the PRV-25 Vertical Screw Type Molding Machine – 25 Ton.
