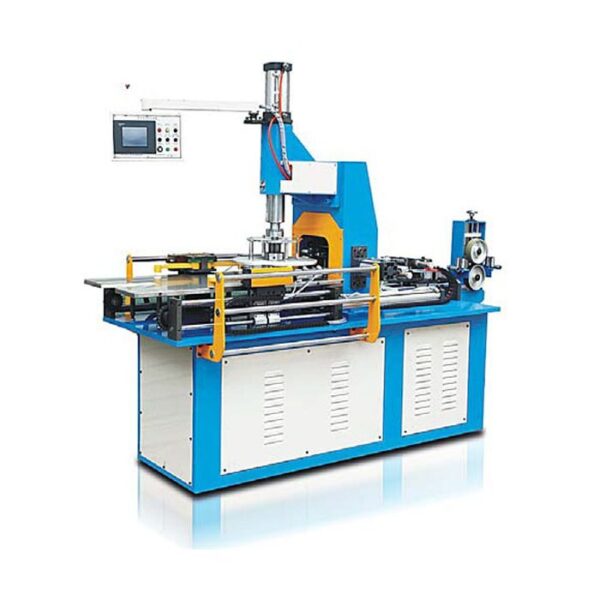

Micro Computer Coiling Machine – Automatic Wire Coiler with PLC & Servo Control

NC Single Double Horizontal Taping Machine NC Single/Double Horizontal Taping Machine – PRV-STA-800 for Copper Wires & High-Speed Data Cables
Circular Shape Automatic Wrapping Machine Circular Shape Automatic Wrapping Machine – High-Speed Coil Packaging System

₹599.00

Micro Computer Coiling Machine for precise, servo-controlled wire coiling from extrusion or pay-off lines. Features touchscreen interface, auto fault detection, and 99 coil memory presets.

Features:
  • The auto-coiling wire from an extrusion line or from the pay-off machine.
  • Screen touch graphic operation terminal makes it easy to operate.
  • Servo motor traversing system produces coil with a smooth surface.
  • The machine will automatically detect the fault and give the alarm.
  • Can input and keep 99 types of coil data in the PLC memory.
  • It is not necessary to adjust any device when changing coil size to another
Applications:

  • Precision coiling of insulated or bare wires

  • Integration with extrusion lines

  • Automated packaging setups

  • Wire and cable manufacturing plants

Category: Tags: , , , ,

Description

Technical Parameters



Machine

Model

 Height

(mm)

 Outside

Diameter

(mm)

 Inside

Diameter

(mm)

 Cable

Diameter

(mm)

 Rotation

Speed

(RPM)
C0836 40-80 180-360 120-200 0.8-6 1000
C1246 50-120 200-460 140-220 1-12 800
C1860 60-180 220-600 180-250 5-15 700
C2480 80-240 300-800 250-320 10-25 700

The Micro Computer Coiling Machine is a high-performance automatic solution designed for wire manufacturers needing precision coiling directly from extrusion lines or pay-off units. With a touchscreen graphic interface, operators can easily input settings and manage operations.

Powered by a servo motor traversing system, Micro Computer Coiling Machine ensures each coil is evenly wound with a smooth, professional surface. Its PLC memory can store up to 99 coil configurations, enabling rapid changeovers and enhanced productivity.

Automatic fault detection with alarm alerts ensures minimized downtime and safer operation. Best of all, there is no need for mechanical adjustments when changing from one coil size to another, making it an ideal fit for high-mix production environments.

Key Features:

  • Auto-coiling from extrusion line or pay-off machine

  • Touchscreen graphic terminal for easy operation

  • Servo motor ensures smooth traversing and uniform coiling

  • PLC-based memory for storing 99 coil configurations

  • Auto fault detection & alarm system

  • No manual adjustment required for coil size changes

Technical Parameters
Machine Model Height (mm) Outside Diameter (mm) Inside Diameter (mm) Cable Diameter (mm) Rotation Speed (RPM)
C0836 40-80 180-360 120-200 0.8-6 1000
C1246 50-120 200-460 140-220 1-12 800
C1860 60-180 220-600 180-250 5-15 700
C2480 80-240 300-800 250-320 10-25 700
