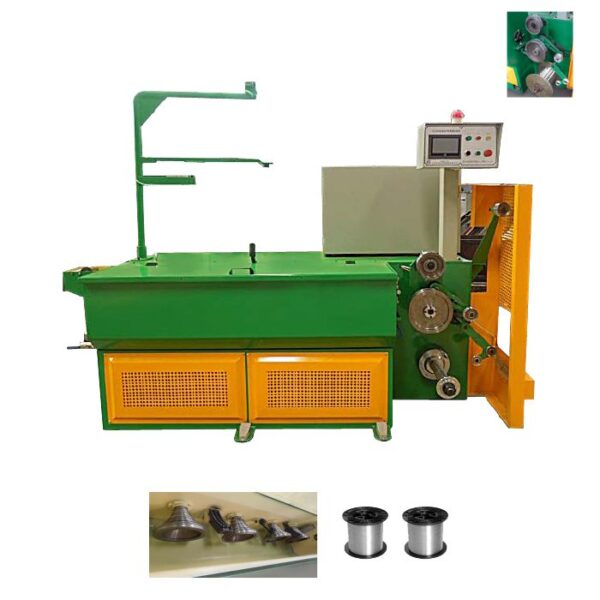

SS Wire Drawing Machine For Super Fine Stainless Steel

Description

Application	CL-15D	CL-17D	CL-22D
Number of Dies	15	17	22
Max inlet wire dia	2.5	0.6	1.2
Min outlet wire dia	0.55	0.1	0.15
Drawing speed	180m/min	600m/min	600m/min
Power	11KW	4KW	7.5KW
Transmission type	Synchronous belt driving, Ac frequency conversion speed control
Cone pulleys	Imported mould steel vacuum annealing treatment
Cooling system	The drawing capstan is cooled by the full immersion method
Tension system	Precision potentiometer automatic adjustment
Winding device	Ball screw wire rod winding device, stepper motor, or servo motor drive
Control type	“AC frequency conversion+PLC program controller+Man machine interface+constant tension”, whole digital logic control
Drawing material	S.S wire, steel wire for rope, steel cord wire, galvanized steel wire, silicon pellet cutting wire and so on
The motor power is decided by the tensile strength of the drawing material
