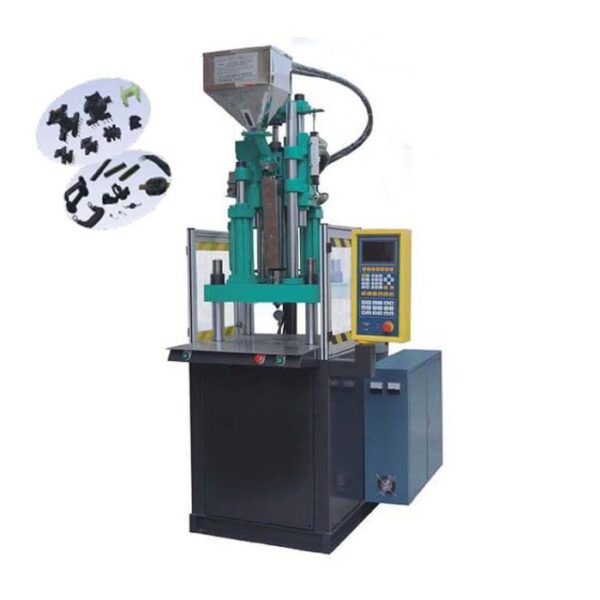

Vertical Injection Molding Machine with Slider – PRV-T-1S Series (35–200 Ton)
The PRV-T-1S Vertical Injection Molding Machine with Slider is designed for precision insert molding and efficient plastic component production. Its single sliding mould system brings the mould in front of the operator after the molding cycle, enabling convenient part handling and insert loading. Equipped with optical safety sensors, multi-stage temperature and pressure controls, hydraulic locking, and a double-cylinder barrel locking system, the PRV-T-1S series offers reliable operation across 35 to 200-ton clamping force configurations.
- Description
Description
Vertical Injection Molding Machine with Slider – PRV-T-1S Series
Product Overview
The Vertical Injection Molding Machine with Slider from Parovi Machines, part of the PRV-T-1S Single Sliding Mode Series, is designed for precision insert molding and efficient plastic component production. Its single sliding mould arrangement brings the mould in front of the operator after the molding cycle, making insert loading and finished part removal convenient.
This vertical injection molding machine with slider features optical safety sensors, multi-stage temperature and pressure controls, hydraulic locking, and a double-cylinder barrel locking system. Available in 35, 55, 85, 120, 160, and 200-ton configurations, it supports a wide range of electrical, wire and cable accessory, and engineering plastic molding applications.
Key Features of the Vertical Injection Molding Machine with Slider
- Single sliding mould configuration
- Mould moves in front of the operator after the molding cycle
- Optical sensors for safety and cycle restart
- Multi-stage temperature and pressure controls
- Barrel equipped with suck-back feature
- Large screw L/D ratio for engineering plastics
- Optional full automation design
- High-pressure hydraulic locking
- Fast locking speed with controlled slow final locking
- Double-cylinder barrel locking for improved balance and stability
- HMI with breakdown indication and convenient troubleshooting
Applications
The PRV-T-1S Vertical Injection Molding Machine with Slider is suitable for:
- Electrical plug and connector molding
- Wire and cable accessory molding
- Insert molding of metal components
- Engineering plastic components
- Electrical and electronic parts
- Industrial plastic component production
Technical Specifications
Clamping Unit and General Specifications
| Parameter | PRV-35T-1S | PRV-55T-1S | PRV-85-T-1S | PRV-120-T-1S | PRV-160-T-1S | PRV-200-T-1S |
|---|---|---|---|---|---|---|
| Clamping Force (tf) | 343 (35) | 539 (55) | 833 (85) | 1176 (120) | 1568 (160) | 1960 (200) |
| Clamping Stroke (mm) | 215 | 215 | 250 | 300 | 300 | 350 |
| Min. Mould Thickness (mm) | 140 (200) | 180 (240) | 240 (320) | 280 (380) | 280 (380) | 350 (450) |
| Max. Opening (mm) | 355 (415) | 395 (455) | 490 (570) | 580 (680) | 580 (680) | 700 (800) |
| Distance Between Tie Bars (mm) | 420 × 250 | 470 × 290 | 520 × 320 | 580 × 380 | 680 × 420 | 720 × 520 |
| Max. Mould Size (mm) | 400 × 350 | 450 × 400 | 500 × 450 | 550 × 500 | 650 × 600 | 700 × 700 |
| Platen Size (mm) | 400 × 450 | 630 × 450 | 700 × 500 | 800 × 600 | 960 × 700 | 1060 × 860 |
| Ejector Distance (mm) | 40 | 40 | 40 | 60 | 60 | 60 |
| Ejector Force | 17.2 (1.75) | 17.2 (1.75) | 17.2 (1.75) | 45 (4.6) | 45 (4.6) | 45 (4.6) |
| System Pressure | 140 | 140 | 140 | 140 | 140 | 140 |
| Oil Tank Capacity (L) | 120 | 150 | 200 | 280 | 350 | 500 |
| Electric Power (kW) | 5.5 (7.5) | 7.5 (11) | 11 (15) | 15 (20) | 18.5 (25) | 22.5 (30) |
| Heater Power (kW) | 3.6 | 5.5 | 6.4 | 10.7 | 13.8 | 16 |
| Machine Dimensions (L × W × H) (m) | 1.8 × 1.2 × 2.5 | 2 × 1.3 × 2.7 | 2 × 1.5 × 3 | 2.4 × 1.7 × 3.3 | 2.7 × 2 × 3.7 | 2.9 × 2.1 × 4.1 |
| Machine Weight (T) | 1.9 | 2.7 | 4.6 | 6 | 8.3 | 12 |
Injection Unit Specifications
| Parameter | PRV-35T-1S | PRV-55T-1S | PRV-85-T-1S | PRV-120-T-1S | PRV-160-T-1S | PRV-200-T-1S |
|---|---|---|---|---|---|---|
| Screw Diameter (mm) | 25 / 28 / 32 | 28 / 32 / 36 | 32 / 36 / 40 | 36 / 40 / 45 | 40 / 45 / 50 | 50 / 55 / 60 |
| Theoretical Injection Volume (cm³) | 59 / 74 / 96 | 86 / 112 / 142 | 128 / 163 / 200 | 183 / 226 / 286 | 251 / 318 / 392 | 471 / 570 / 678 |
| Injection Weight (g) | 56 / 70 / 91 | 81 / 106 / 134 | 121 / 154 / 190 | 173 / 213 / 270 | 238 / 300 / 371 | 445 / 538 / 640 |
| Max. Injection Pressure | 2153 / 1715 / 1312 | 2170 / 1660 / 1312 | 2050 / 1620 / 1312 | 2202 / 1783 / 1409 | 2104 / 1663 / 1346 | 2150 / 1777 / 1493 |
| Injection Rate (cc/s) | 60 / 75 / 82 | 78 / 100 / 128 | 130 / 165 / 202 | 156 / 193 / 245 | 147 / 186 / 230 | 227 / 275 / 327 |
| Injection Speed (mm/s) | 120 | 140 | 160 | 180 | 200 | 220 |
| Screw Speed Rotation | 0–250 | 0–230 | 0–300 | 0–300 | 0–300 | 0–300 |
| Nozzle Out from Platens (mm) | ≥45 | ≥45 | ≥45 | ≥45 | ≥45 | ≥45 |
Injection unit values are presented in the order of the listed screw diameter options. Confirm unit labels against the original engineering sheet.
Benefits of the Single Sliding Mould System
The Vertical Injection Molding Machine with Slider is designed to support convenient mould access, efficient insert placement, and controlled mould locking.
- Convenient mould access for insert placement and finished part removal
- Improved operator workflow
- Optical sensor support for safe operation
- Controlled mould locking to help support mould life
- Automation-ready configuration
- Suitable for a wide range of engineering plastic applications
Request a Quote
Contact Parovi Machines to select the appropriate Vertical Injection Molding Machine with Slider based on clamping force, injection capacity, mould dimensions, material, and production requirements.
