Stainless Steel Wire Drawing Machine for Spring Wire – CL Series

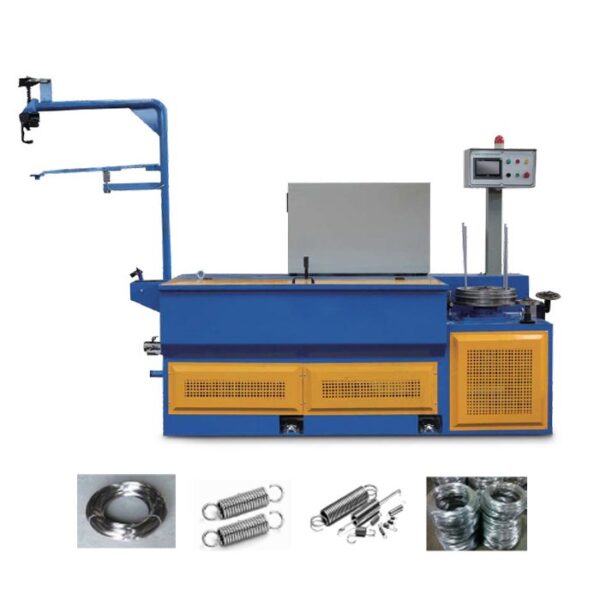

The CL Series Stainless Steel Wire Drawing Machine for Spring Wire is designed to reduce wire diameter through multiple drawing dies for spring wire and other compatible metal wire applications. Available in CL-200, CL-250, CL-300 and CL-400 models, it features PLC-based frequency conversion control, horizontal step-pulley drawing and controlled wire take-up to support efficient wire processing across different diameter ranges.

Description

Stainless Steel Wire Drawing Machine for Spring Wire

The CL Series Stainless Steel Wire Drawing Machine for Spring Wire is designed for reducing wire diameter through a multi-die drawing process. It supports the processing of compatible steel wire for spring manufacturing and other industrial wire applications that require controlled diameter reduction.

Available in four models—CL-200, CL-250, CL-300 and CL-400—the stainless steel wire drawing machine for spring wire accommodates different inlet and outlet wire diameters, production speeds and take-up capacities. Its PLC-based frequency conversion control system enables speed adjustment according to production requirements, while the horizontal step-pulley arrangement supports the wire drawing process.

Key Features

  • Four Model Options: Choose from CL-200, CL-250, CL-300 and CL-400 to suit different wire diameter requirements.
  • Multi-Die Drawing: Supports up to 15 or 17 drawing dies, depending on the model.
  • PLC Frequency Conversion Control: Enables controlled speed adjustment during wire drawing.
  • Horizontal Step-Pulley System: Designed for continuous wire drawing operations.
  • Controlled Capstan Slip: A listed capstan slip ratio of 15% supports the specified drawing configuration.
  • Multiple Production Speeds: Maximum line speeds range from 100 to 200 m/min across the series.
  • Mechanical Transmission: Uses synchronous wheels, synchronous belts and flat belts, according to the supplied specifications.
  • Multiple Take-Up Capacities: Approximate capacities range from 15 kg to 40 kg, depending on the model.
  • Industrial Construction: Designed for wire processing environments requiring continuous production operation.

Applications

The CL Series stainless steel wire drawing machine for spring wire is suitable for compatible wire materials and applications including:

  • Spring wire production
  • Stainless steel wire drawing
  • Steel wire diameter reduction
  • Industrial metal wire processing
  • Wire preparation for downstream forming operations

The final model selection depends on the incoming wire diameter, required finished diameter, material properties and production speed.

Technical Specifications

Parameter CL-200 CL-250 CL-300 CL-400
Wire inlet diameter 0.6–0.8 mm 1.0–1.5 mm 1.5–1.8 mm 2.2–2.4 mm
Wire outlet diameter 0.2–0.3 mm 0.35–0.45 mm 0.5–0.6 mm 0.8–1.4 mm
Maximum number of dies 17 17 15 15
Maximum line speed 200 m/min 150 m/min 120 m/min 100 m/min
Mechanical reduction 15% 15% 15% 15%
Capstan slip ratio 15% 15% 15% 15%
Maximum step-pulley diameter 170 mm 170 mm 230 mm 230 mm
Approximate take-up capacity 15 kg 20 kg 25 kg 40 kg
Main motor power 5.5 kW 7.5 kW 7.5 kW 11 kW
Power supply 380 V, 50 Hz / 75 Hz as listed 380 V, 50 Hz / 75 Hz as listed 380 V, 50 Hz / 75 Hz as listed 380 V, 50 Hz / 75 Hz as listed
Overall dimensions 2350 × 1100 × 1800 mm 2470 × 1200 × 1800 mm Confirm dimensions Confirm dimensions
Machine weight 1,450 kg 1,500 kg 2,300 kg 2,400 kg

Common system details: PLC frequency conversion control, horizontal step-pulley drawing arrangement, synchronous wheel and belt transmission, mechanical shaft sealing with automatic compensation, and free braking, according to the supplied specifications.

Wire diameter ranges, line speeds and take-up capacities depend on the selected model and operating conditions. Confirm material compatibility and final configuration before ordering.
