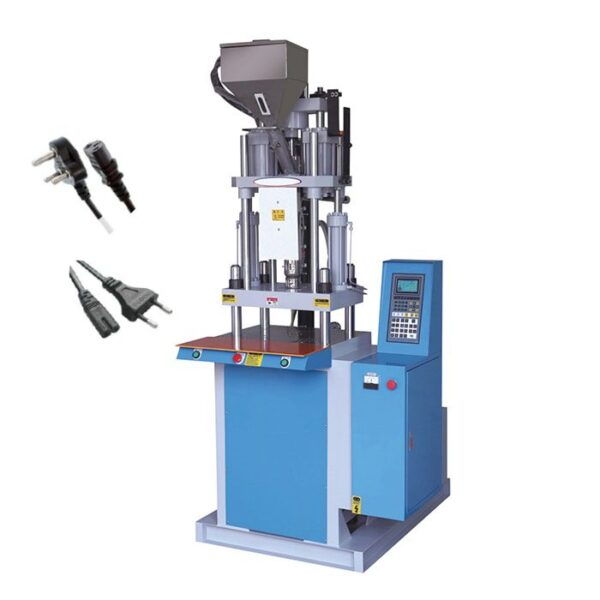

Vertical Screw Type Molding Machine – 35 Ton (PRV-35)
The PRV-35 Vertical Screw Type Molding Machine 35 Ton is a hydraulic injection molding solution designed for electrical plugs, connectors, power cable accessories, and industrial plastic components. Featuring 35-ton clamping force, a 32 mm screw diameter, and 96 cm³ injection capacity, The PRV-35 Vertical Screw Type Molding Machine 35 Tonmachine supports controlled injection and consistent molding performance. Its vertical configuration provides convenient mould access for insert molding and component production.
- Description
Description
Vertical Screw Type Molding Machine – 35 Ton (PRV-35)
Technical Specifications
| Parameter | Unit | Specification |
|---|---|---|
| Model | — | PRV-35 |
| Injection Unit | ||
| Screw Diameter | mm | 32 |
| Injection Pressure | kgf/cm² | 1367 |
| Injection Capacity | cm³ | 96 |
| Injection Weight (PS) | g | 110 |
| Injection Rate | cc/s | 59 |
| Screw Speed | rpm | 0–150 |
| Screw Stroke | mm | 120 |
| Nozzle Stroke | mm | 200 |
| Nozzle Contact Force | tf | 2.4 |
| Clamping Unit | ||
| Clamping System | — | Hydraulic |
| Clamping Force | Ton | 35 |
| Clamping Stroke | mm | 215 |
| Maximum Mould Space | mm | 360 |
| Minimum Mould Height | mm | 145 |
| Overall Platen Size | mm | 570 × 370 |
| Space Between Columns | mm | 420 × 220 |
| Hydraulic Ejector Force | tf | 0.7 |
| Ejector Stroke | mm | 28 |
| Electrical Equipment & General | ||
| Drive Motor | kW | 5.5 (7.5 HP) |
| Heater Power | kW | 3.3 |
| Machine Dimensions (L × W × H) | m | 1.25 × 1.0 × 2.9 |
| Machine Weight | Ton | 0.9 |
| Shipping Dimensions | m | 1.45 × 1.1 × 3.25 |
| Shipping Weight | Ton | 1.3 |
| Oil Tank Capacity | L | 160 |
| Cooling Water Requirement | L/hr | 500–700 |
Product Overview
The PRV-35 Vertical Screw Type Molding Machine 35 Ton from Parovi Machines is engineered for hydraulic plastic injection molding applications involving electrical plugs, power cables, connectors, and molded cable accessories.
With a 35-ton hydraulic clamping force and 96 cm³ injection capacity, the PRV-35 supports controlled plastic injection and reliable moulding operations. Its vertical design provides convenient access to the mould area, making it suitable for insert molding and component handling.
The PRV-35 Vertical Screw Type Molding Machine 35 Ton is designed for industrial production requirements where consistent molding performance and practical operation are important.
Key Features
- 35-ton hydraulic clamping force
- 32 mm screw diameter
- 96 cm³ injection capacity
- 59 cc/s injection rate
- Adjustable screw speed from 0–150 rpm
- Vertical injection configuration
- Hydraulic clamping system
- 120 mm screw stroke
- 200 mm nozzle stroke
- Hydraulic ejector system
- Compact industrial machine design
Applications
The PRV-35 Vertical Screw Type Molding Machine is suitable for:
- Electrical plug molding
- Power cable accessory molding
- Connector and terminal molding
- Insert molding applications
- Plastic electrical components
- Industrial molded plastic parts
Why Choose the PRV-35?
The PRV-35 Vertical Screw Type Molding Machine 35 Ton combines a vertical configuration, hydraulic clamping, and screw-type injection technology to support controlled molding operations. Its 35-ton clamping force and injection capacity make it suitable for electrical and industrial component production.
Request a Quote
Contact Parovi Machines for pricing, technical consultation, and machine configuration details for the PRV-35 Vertical Screw Type Molding Machine – 35 Ton.
