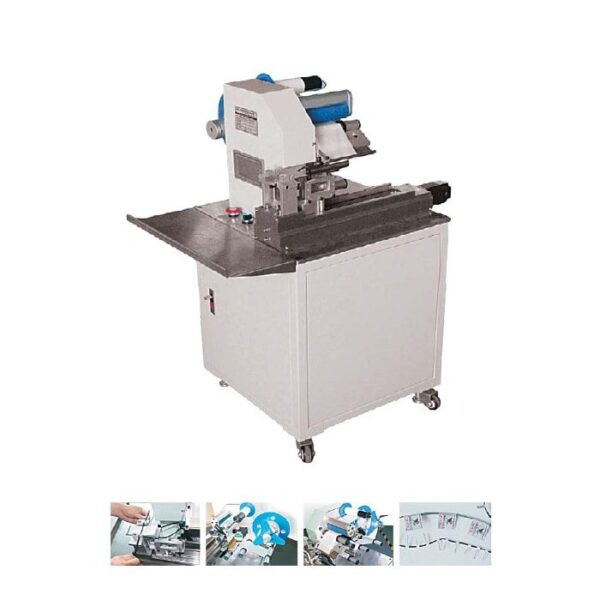

Automatic Flap Type Lable Sticking Machine
Automatic Flap Type Lable Sticking Machine

Automatic Flap Type Lable Sticking Machine

Semi Automatic Coaxial Cable Stripping Machine Semi Automatic Coaxial Cable Stripping Machine
Automatic Folding and Binding Machine Eight Type Binding Automatic Folding and Binding Machine Eight Type Binding

Application

Automatic Flap Type Label Sticking Machine.
Peels the Label from the Release paper. Folds the paper and sticks to the wire uniformly without any lag.

Category:

Description

Technical Parameters

MODEL PRV-WP-250 Labeling Machine
Wire Diameter 3 ~ 10 mm
Applicable labels width 20 ~ 50 mm, Length: 50 ~ 135 mm
Fitting Accuracy  > 0.5 mm
Speed 900 ~ 1000
Power Supply AC 220 50 Hz.
Air Pressure 5 ~ 6 KGF ( Need Clean Air)
Machine Size 500 x 700 x 980 mm
Weight 50 Kg.
Principle Wire Positioning, Label Feeding, Label Peeling & Label Sticking
